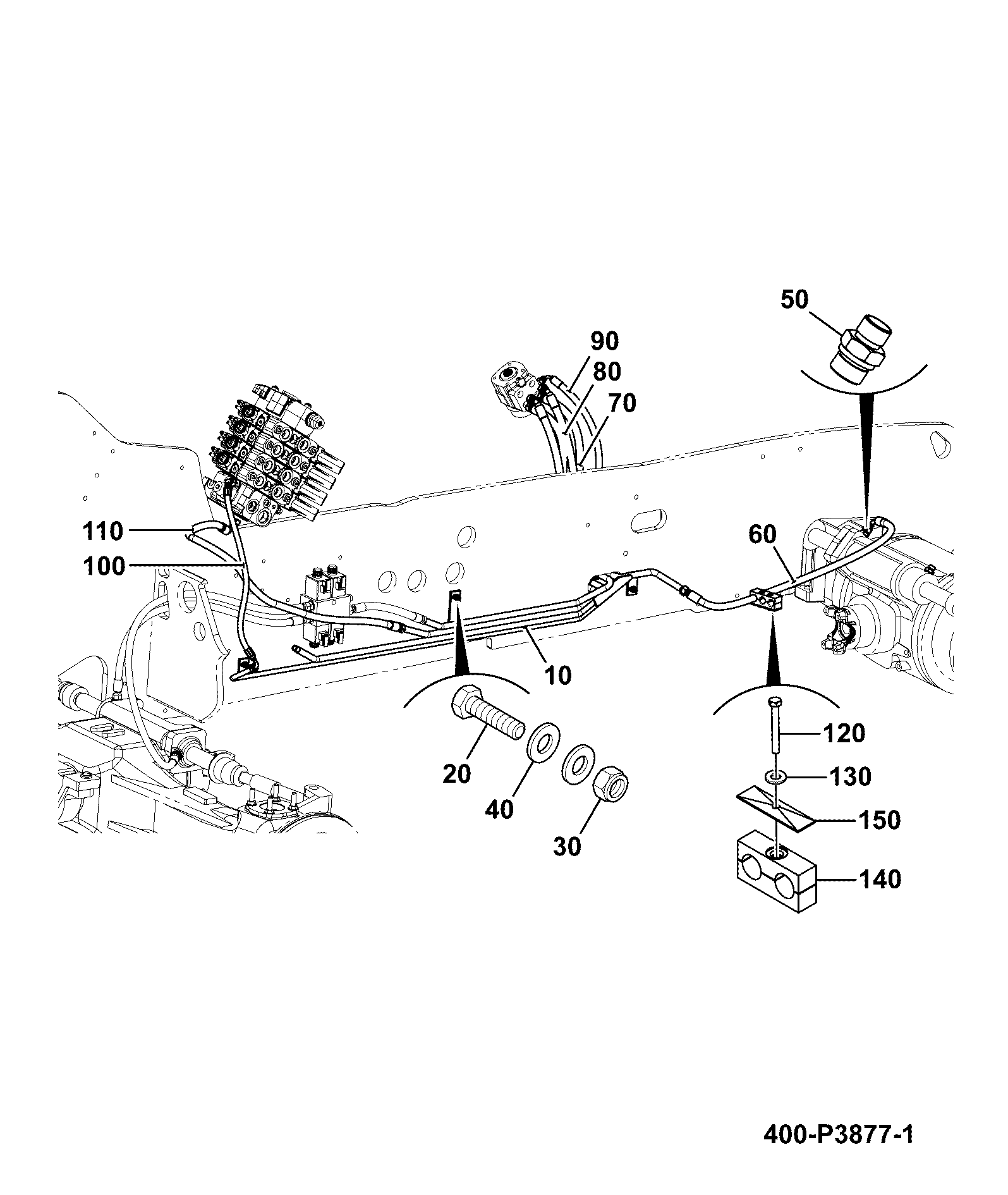

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 10 | 6-WAY SOLENOID C/O VALVE 332/G3907 | 1 | $1,053.46 | |||
| 20 | Bolt M8 X 120 LG 1315/3322D | 1 | $4.11 | |||
| 30 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 40 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 50 | ADAPTOR G1/2A-3/4UNF(M) 1620/2054 | 1 | $37.26 | |||
| 60 | CL2 BSP ADAPTOR 816/90284 | 1 | $46.32 | |||
| 80 | FLANGED BOLT M10x20 1317/3405D | 1 | $17.82 | |||
| 100 | Hose 1/2 bsp 740mm 332/U0361 | 1 | $132.46 | |||
| 110 | HOSE 1/2BSP 650mm 613/24900 | 1 | $125.88 | |||
| 120 | HOSE 1/2BSP 1100mm 613/05900 | 1 | $182.76 | |||
| 130 | HOSE -08 HP 560mm B 33AG/BA056 | 1 | $64.66 | |||
| 140 | HOSE 1/2BSP 715mm 613/22800 | 1 | $134.47 | |||
| 150 | HOSE 1/4BSP 1650mm 611/80109 | 1 | $112.41 | |||
| 160 | Hose 1/4BSP x 920m 611/80210 | 1 | $86.31 | |||
| 170 | ADAPTOR G1/4AxG3/8 M/F 1612/2059 | 1 | $18.10 | |||
| 200 | WA SINGLE AUX PIPES P42/P 400/T5353 400/V9821 | 1 | $417.19 | |||
| 210 | BOLT FLANGED HEX M10 x 30g8.8 1317/3408D | 1 | $1.60 | |||
| 220 | (W) (P) CLAMP:-PIPE/HOSE 821/00503 | 1 | $2.93 | |||
| 230 | SETSCREW M8x35 1315/0309D | 1 | $2.40 | |||
| 240 | RESTRICTOR G1/4A x G1/4 816/20068 816/90195 | 1 | $46.78 | |||
Showing 1 to 20 of 20 parts
Related Assemblies
-
DIAG-E120-550-1-400964 E120-550-1 HYDRAULIC CIRCUITS LOADER END AUXILIARY 1ST HITCH , POD LH
View Diagram -
DIAG-E190-350-1-400964 E190-350-1 OTHER HYDRAULIC CIRCUITS INSTALLATION STEER , ETH
View Diagram -
DIAG-E190-360-1-400964 E190-360-1 OTHER HYDRAULIC CIRCUITS INSTALLATION AUTO SMV , ETH
View Diagram
