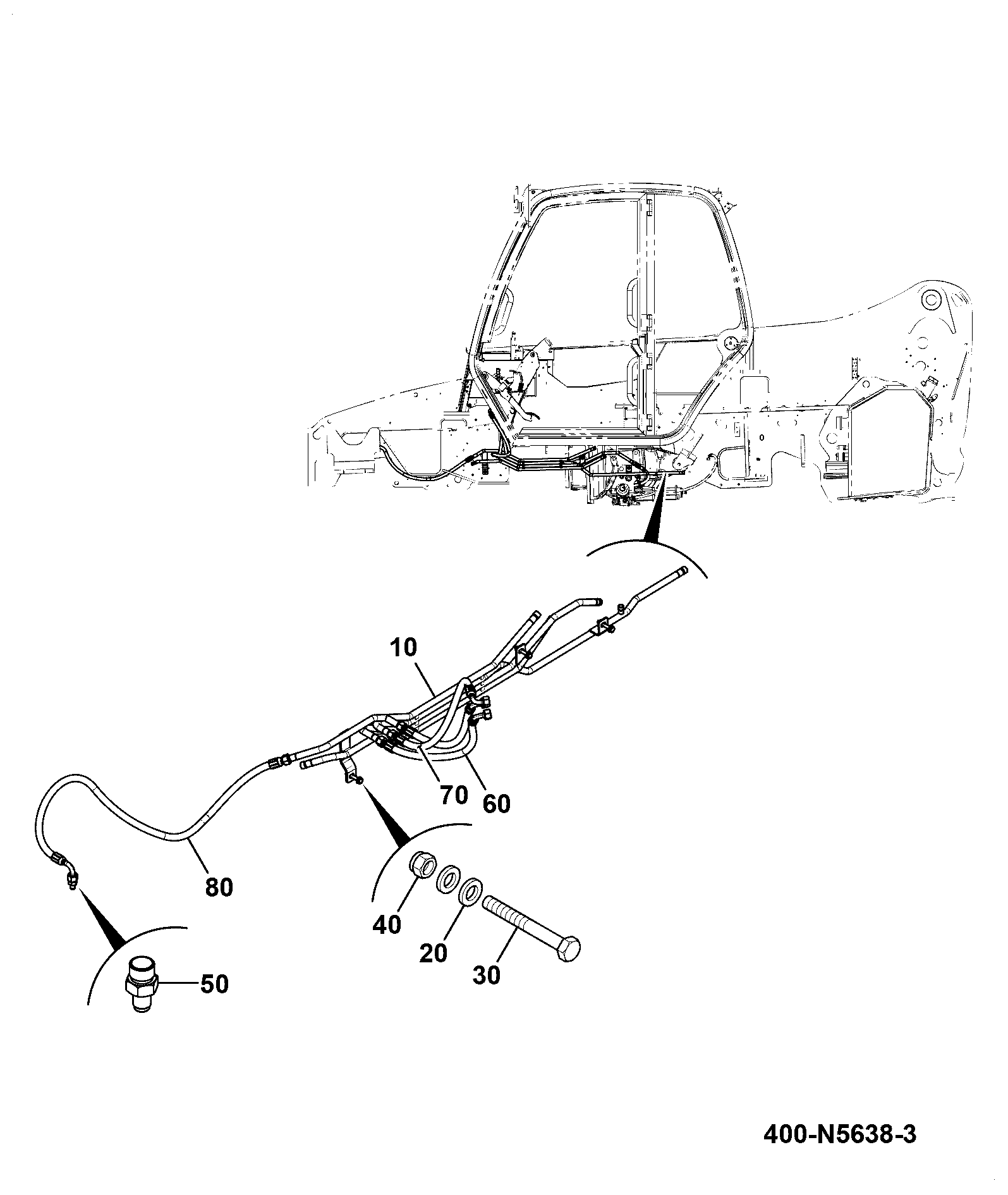

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 10 | WA STEER PIPES 333/D9525 | 1 | $394.27 | |||
| 20 | BOLT M8x45 1315/3311D | 1 | $1.32 | |||
| 30 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 40 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 50 | ADAPTOR 3/8BSPx3/4SAE 1620/2053 | 1 | $2.85 | |||
| 60 | HOSE 3/8BSP 910mm 612/27100 | 1 | $119.25 | |||
| 70 | HOSE 3/8BSP 725mm 612/00300 | 1 | $79.47 | |||
| 80 | HOSE 3/8BSP 735mm 612/30000 | 1 | $96.44 | |||
| 90 | HOSE 1/4BSP 790mm 611/21800 | 1 | $88.45 | |||
| 100 | HOSE -04 BSP HP 650mm C 333/G9783 | 1 | $72.47 | |||
| 110 | Hose 612/80096 | 1 | $57.89 | |||
| 120 | (W) (P) BOLT M6x40 1315/3210D | 1 | $5.10 | |||
| 130 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 140 | TRIPLE PIPE CLAMP (PAIRS) 821/00487 | 1 | $19.12 | |||
| 150 | PIPE CLAMP COVER 821/00488 | 1 | $20.30 | |||
Showing 1 to 15 of 15 parts
Related Assemblies
-
DIAG-E190-360-1-400964 E190-360-1 OTHER HYDRAULIC CIRCUITS INSTALLATION AUTO SMV , ETH
View Diagram -
DIAG-E190-375-1-400964 E190-375-1 OTHER HYDRAULIC CIRCUITS BRAKE CIRCUITS ETH
View Diagram -
DIAG-E200-75-1-400964 E200-75-1 PUMP/MOTOR INSTALLATION ASSEMBLIES VARIABLE PUMP ETH , POWER CONTROL
View Diagram
