Scroll to zoom Click a part # to view details

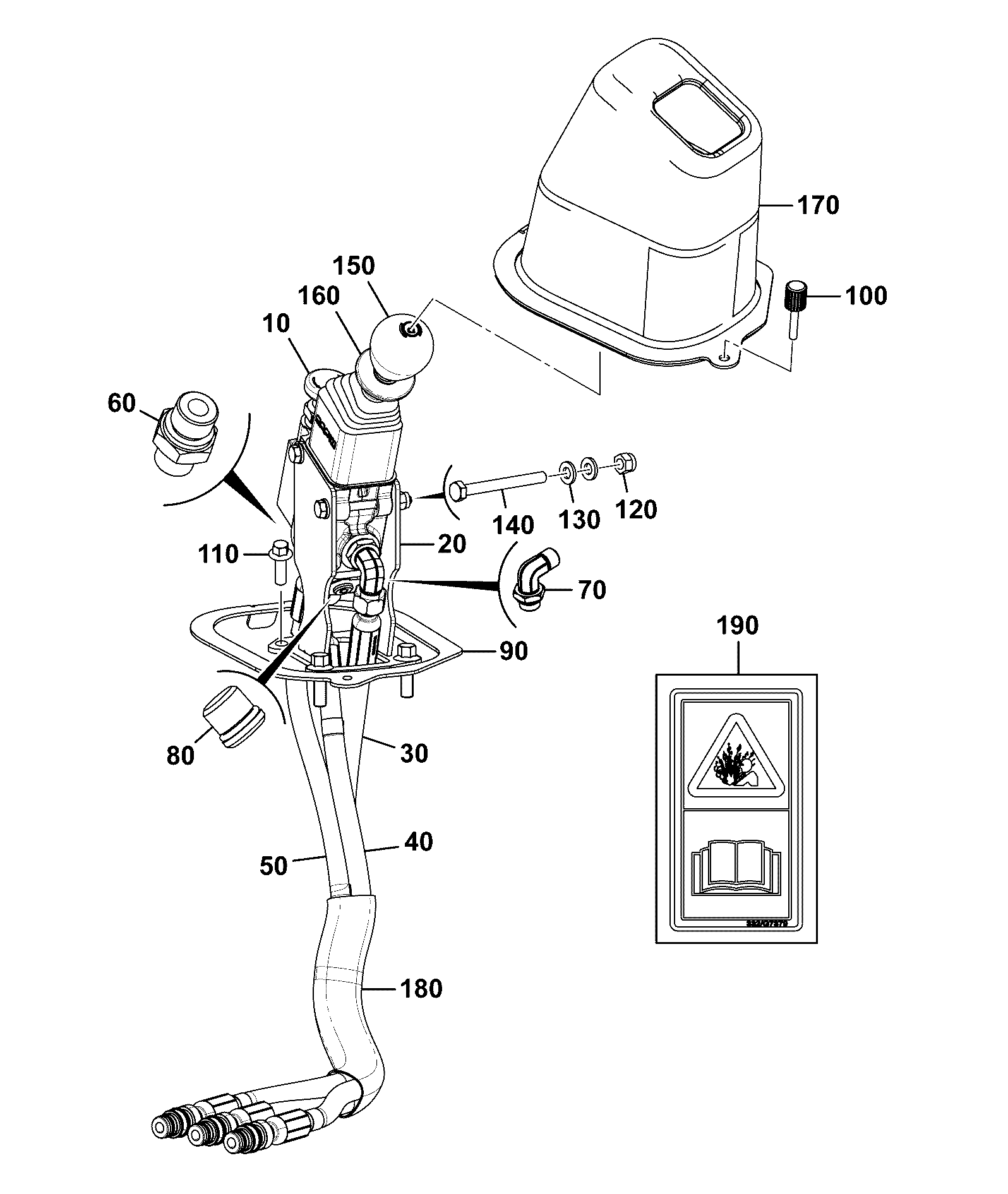

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 10 | HNDBRKE VLV C/W PUMP 130B (P785/P493) 400/G8891 | 1 | $1,497.45 | |||
| 20 | WA HYD HANDBRAKE MTG (P785) 400/D5047 | 1 | $41.26 | |||
| 30 | HOSE -04 BSP/QLD HP 540mm (P785) 400/V0160 | 1 | $83.32 | |||
| 40 | HOSE -04 QLD/BSP HP 560mm (P785) 400/V0167 | 1 | $121.72 | |||
| 50 | HOSE -04 BSP/QLD HP 600mm (P785) 400/V0174 | 1 | $84.46 | |||
| 60 | ADAPTOR G1/4A-9/16UNF (M) 1620/0002 1620/2051 | 1 | $5.41 | |||
| 70 | ELBOW G1/4A X 9/16UNF 816/90618 | 1 | $21.13 | |||
| 80 | 'PLUG SAE-4 O RING BOSS P (P785)(AXP844 816/90632 | 1 | $27.10 | |||
| 90 | PRESSING HANDBRAKE MOUNT (P785) 400/U1292 | 1 | $32.72 | |||
| 100 | (P) THUMB SCREW 826/01147 | 1 | $6.94 | |||
| 110 | BOLT M_8 L-_25mm G-_8.8 FLANGED HEX 1317/3307D | 1 | $4.11 | |||
| 120 | NUT M_6 STD SELF LOCK 1370/0103 1370/0103D | 1 | $0.17 | |||
| 130 | HEX.BOLT M6x60 LG 1315/3214D | 1 | $1.05 | |||
| 140 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 150 | HNDBRK KNOB ORANGE (P785) 400/G8911 | 1 | $20.53 | |||
| 160 | '(W) (P) HNDBRK COLLAR AND CLIP (P785/P4 400/A9341 | 1 | $26.46 | |||
| 160 | HNDBRK COLLAR AND CLIP (P493) 400/Z5184 | 1 | $29.47 | |||
| 190 | Label ISO-06G 401/P0004 | 1 | $0.95 | |||
Showing 1 to 18 of 18 parts
Related Assemblies
-
DIAG-D140-36-1-400964 D140-36-1 PARKING BRAKE ASSEMBLY HYDRAULIC , ETH
View Diagram -
DIAG-D140-35-1-400964 D140-35-1 PARKING BRAKE ASSEMBLY HYDRAULIC , ETH
View Diagram -
DIAG-D100-45-1-400964 D100-45-1 MECHANICAL CONTROL INSTALLATION ASSEMBLIES POD , SINGLE LEVER CONTROL , ETH
View Diagram
