Kubota B6200D T04600 MUFFLER AND MUFFLER PIPE [A] [CA] Parts Diagram
Exploded-view parts diagram "T04600 MUFFLER AND MUFFLER PIPE [A] [CA]" for the Kubota B6200D, Kubota B6200E, Kubota B7200D and Kubota B7200E. 17 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | Muffler 15751-12010 | 1 | $658.84 | |||
| 020 | Exhaust Muffler Gasket 15371-12370 15263-12370 | 1 | $12.46 | |||
| 030 | Nut Fastener 15151-04430 02156-50080 | 1 | $0.60 | |||
| 040 | Spring Washer 04512-50080 | 1 | $0.87 | |||
| 050 | MUFFLER 67800-53410 | 1 | $84.77 | |||
| 060 | BAND, EXHAUST 67800-53420 | 1 | $12.40 | |||
| 070 | BOLT 01150-50865 01153-50865 | 1 | $3.14 | |||
| 080 | Plain Washer (Flat Washer) 04013-50800 04013-50080 | 1 | $0.36 | |||
| 100 | Nut Fastener W2336-07200 02114-50080 | 1 | $0.60 | |||
| 110 | PLUG 66591-51132 66591-51130 | 1 | $1.38 | |||
| 120 | COVER 67211-54610 Discontinued | 1 | $28.88 | |||
| 120 | PLATE*** 67211-54615 Discontinued | 1 | $26.51 | |||
| 130 | RUBBER, SUPPORT 67061-54650 | 1 | $3.73 | |||
| 160 | Bolt (Fastener) 01023-50818 01123-50818 | 1 | $0.87 | |||
| 180 | RUBBER 63611-52330 | 1 | $4.68 | |||
| 190 | COVER 67401-54610 | 1 | $13.16 | |||
| 220 | CLAMP** 71585-23480 Discontinued | 1 | $1.38 | |||
Showing 1 to 17 of 17 parts
Related Assemblies
-

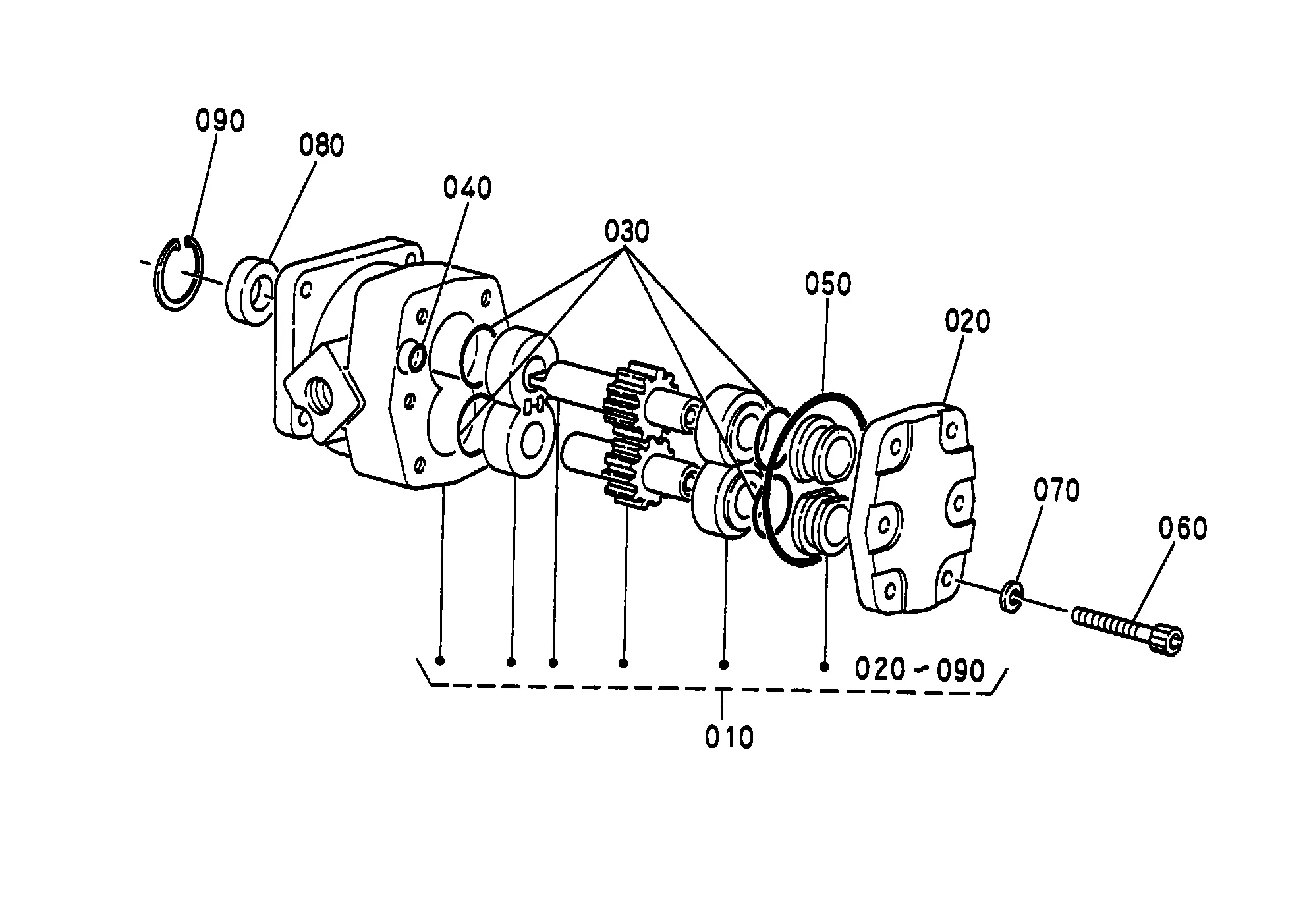

DIAG-E02800-84579 E02800 HYDRAULIC PUMP [SECTION PARTS]
View Diagram -

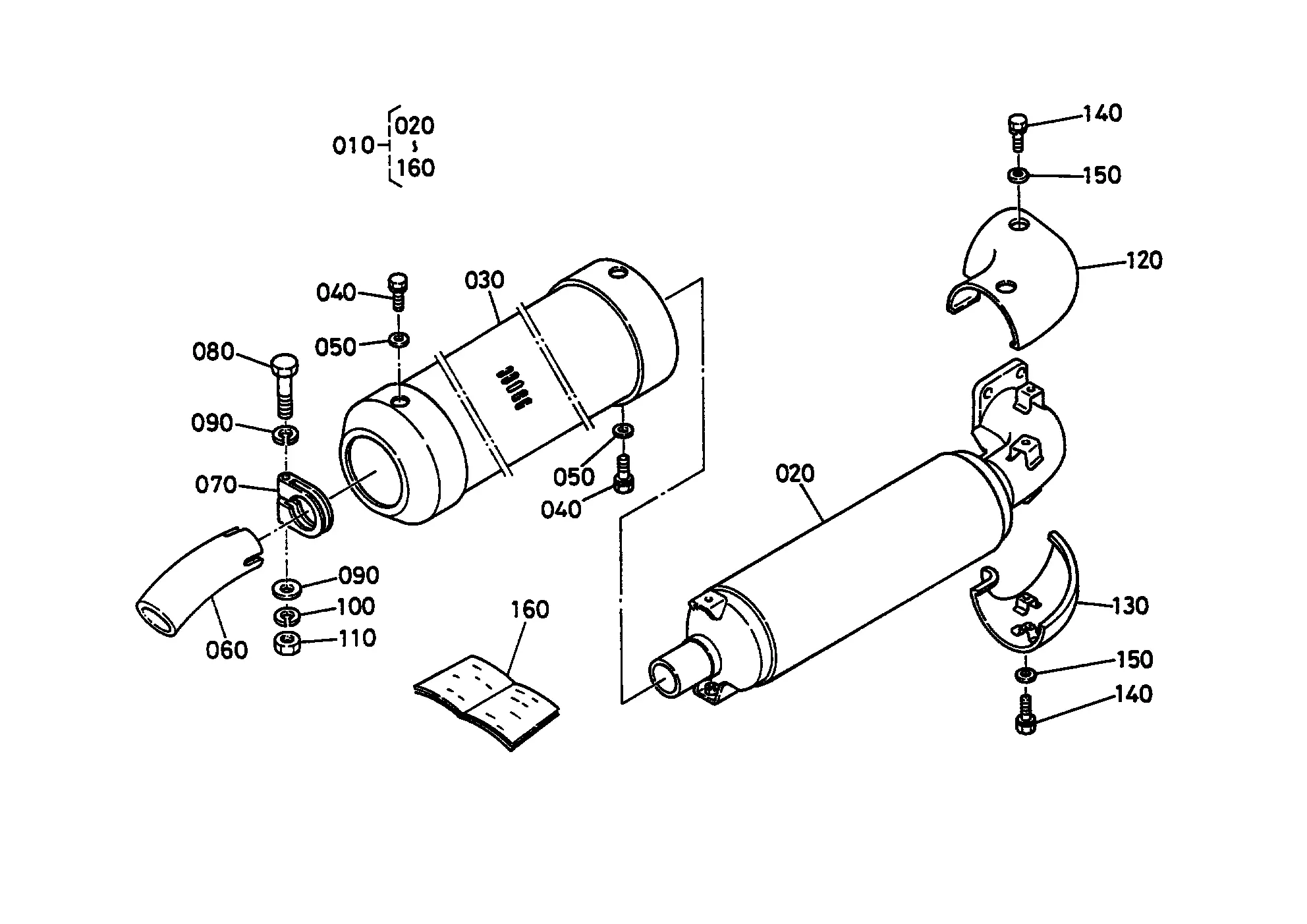

DIAG-T08500-84579 T08500 HORIZON MUFFLER [OPTION]
View Diagram -

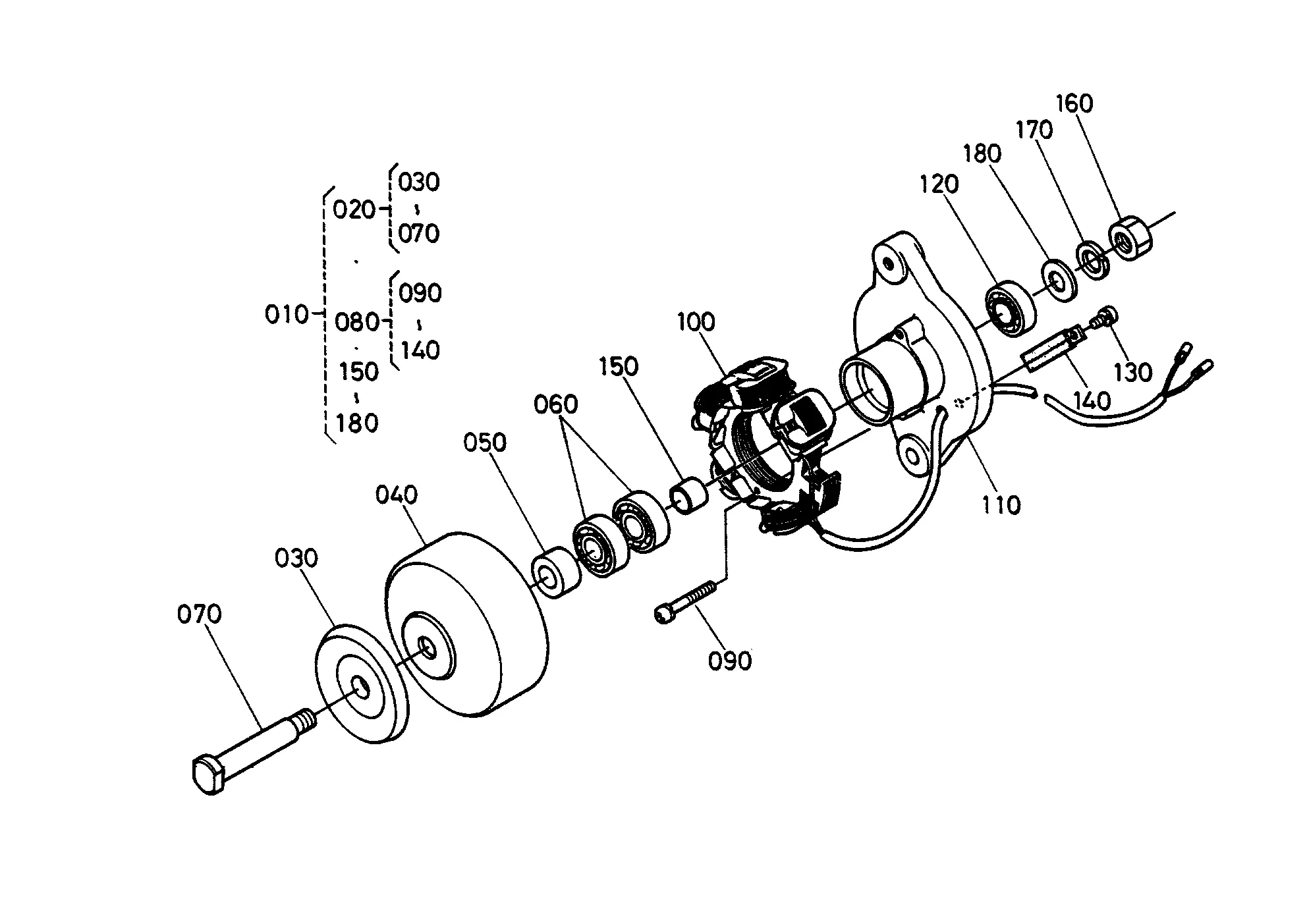

DIAG-E02700-84579 E02700 DYNAMO [SECTION PARTS]
