Kubota R510B S05701 LST PUMP (COMPONENT PARTS) Parts Diagram

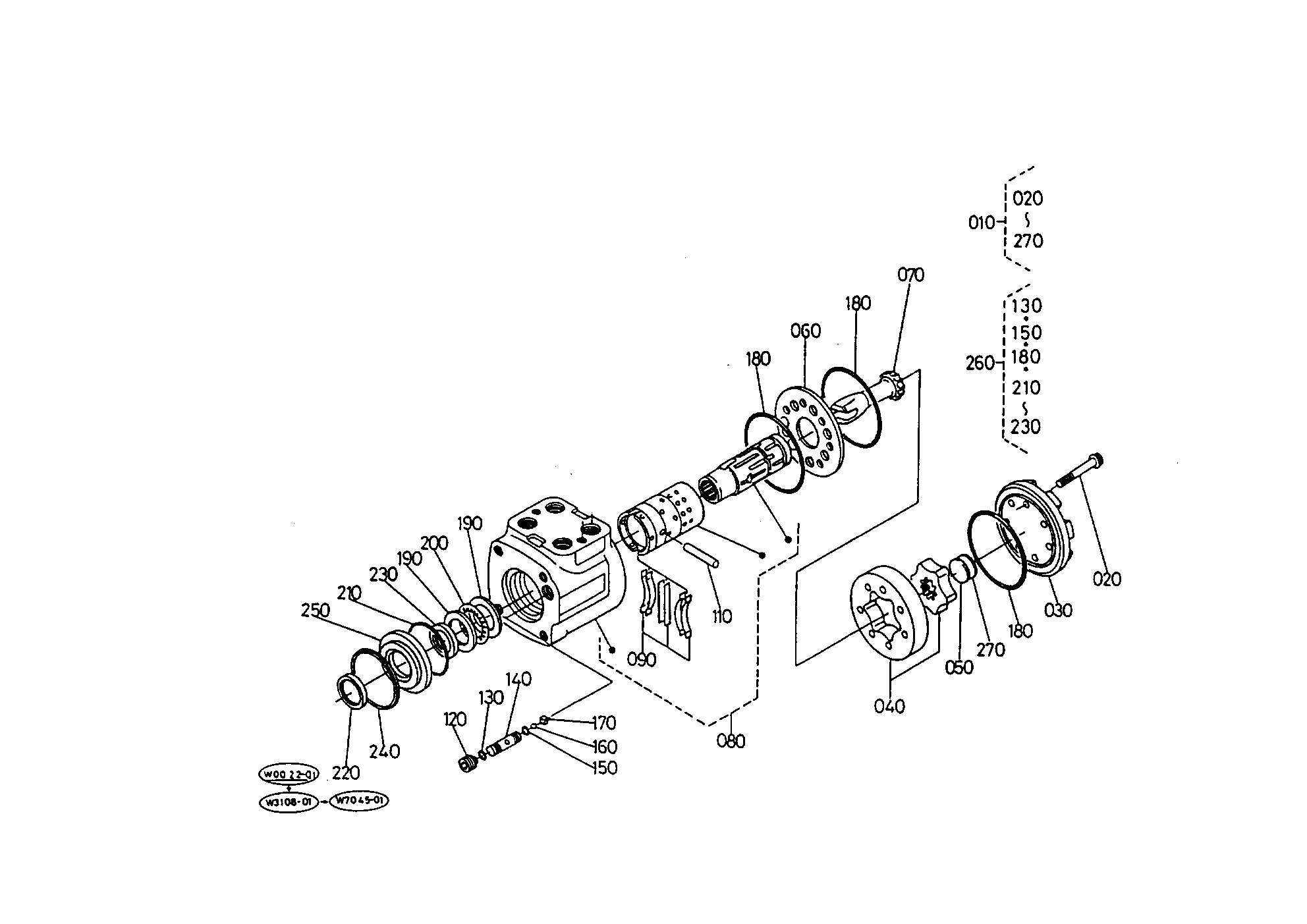

Exploded-view parts diagram "S05701 LST PUMP (COMPONENT PARTS)" for the Kubota R510B. 46 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.

Scroll to zoom Click a part # to view details

Ref # Part Number Qty. Avl. Price (USD) Action
005 PUMP, LST 68891-61112 68891-61114 Discontinued 1 NO LONGER AVAILABLE $16,614.73
020 CASE 68881-96110 1 AVAILABLE TO ORDER $2,313.61
030 SHAFT 68881-96150 Discontinued 1 NO LONGER AVAILABLE $836.46
040 FLANGE ASSY 68881-96400 Discontinued 1 NO LONGER AVAILABLE $1,901.87
060 BEARING, ROLLER 68881-96220 1 AVAILABLE TO ORDER $88.27
070 SPACER 68881-96310 1 AVAILABLE TO ORDER $47.92
080 RING, SNAP 68881-96550 Discontinued 1 NO LONGER AVAILABLE $12.64
090 SEAL, OIL 68881-96250 Discontinued 1 NO LONGER AVAILABLE $93.56
100 O-Ring 04811-50600 1 4 IN STOCK $2.99
110 CASE OIL SEAL 68881-96260 Discontinued 1 NO LONGER AVAILABLE $296.94
120 RING, SNAP 68881-96540 Discontinued 1 NO LONGER AVAILABLE $44.52
130 BOLT, SOCKET HEA 68881-96490 Discontinued 1 NO LONGER AVAILABLE $13.32
140 O-RING 04811-11320 1 AVAILABLE TO ORDER $9.76
150 O-Ring Seal 04810-00090 04817-00090 1 9 IN STOCK $1.07
160 PIN 68881-96560 1 AVAILABLE TO ORDER $15.63
170 PLUG 68881-96740 1 AVAILABLE TO ORDER $13.56
180 O'RING 04811-51100 1 6 IN STOCK $11.50
190 BOLT, SOCKET HEA 68881-96480 Discontinued 1 NO LONGER AVAILABLE $13.32
200 PISTON 68881-96330 1 AVAILABLE TO ORDER $528.79
210 STAY 68881-96340 Discontinued 1 NO LONGER AVAILABLE $644.19
220 BOLT, SOCKET HEA 68881-96520 Discontinued 1 NO LONGER AVAILABLE $12.64
230 PIN 68881-96582 Discontinued 1 NO LONGER AVAILABLE $9.97
240 SPRING 68881-96870 Discontinued 1 NO LONGER AVAILABLE $59.32
250 O-Ring Seal 04810-00180 04817-00180 1 46 IN STOCK $2.26
260 RING, BACK-UP 68881-96910 1 AVAILABLE TO ORDER $19.31
270 STOPPER 68881-96960 Discontinued 1 NO LONGER AVAILABLE $201.15
280 PLUG 68881-96950 1 AVAILABLE TO ORDER $61.50
290 O-RING 04810-50350 1 AVAILABLE TO ORDER $2.34
300 CAP 68881-96820 1 AVAILABLE TO ORDER $833.50
310 T HEAD 68881-96940 Discontinued 1 NO LONGER AVAILABLE $13.32
320 NUT 68881-96970 1 AVAILABLE TO ORDER $13.32
330 O-RING 04810-00260 1 5 IN STOCK $2.05
340 CAP 68881-96830 1 AVAILABLE TO ORDER $705.82
350 BOLT, SOCKET HEA 68881-96930 1 AVAILABLE TO ORDER $20.57
360 RING, BACK-UP 68881-96890 1 AVAILABLE TO ORDER $21.16
370 Hydraulic Oil Line O-Ring Seal 04815-00200 04817-00200 1 16 IN STOCK $1.51
380 NUT 68881-96920 1 AVAILABLE TO ORDER $149.38
390 ADJUSTER 68881-96840 1 AVAILABLE TO ORDER $667.05
400 SCAT, SPRING 68881-96850 1 AVAILABLE TO ORDER $251.58
410 SPRING 68881-96880 Discontinued 1 NO LONGER AVAILABLE $51.30
420 O-RING 04815-00320 04817-00320 1 AVAILABLE TO ORDER $4.15
430 PLUG 68891-96860 1 AVAILABLE TO ORDER $215.92
440 RING, BACK-UP 68881-96760 Discontinued 1 NO LONGER AVAILABLE $4.58
450 O-Ring Seal 04810-00140 04817-00140 1 17 IN STOCK $2.50
460 PLUG 68881-96770 Discontinued 1 NO LONGER AVAILABLE $144.29
470 KIT, PMP PISTON 68881-96600 Discontinued 1 NO LONGER AVAILABLE $528.85

Showing 1 to 46 of 46 parts
