Kubota R510B S05705 LST PUMP (COMPONENT PARTS) Parts Diagram

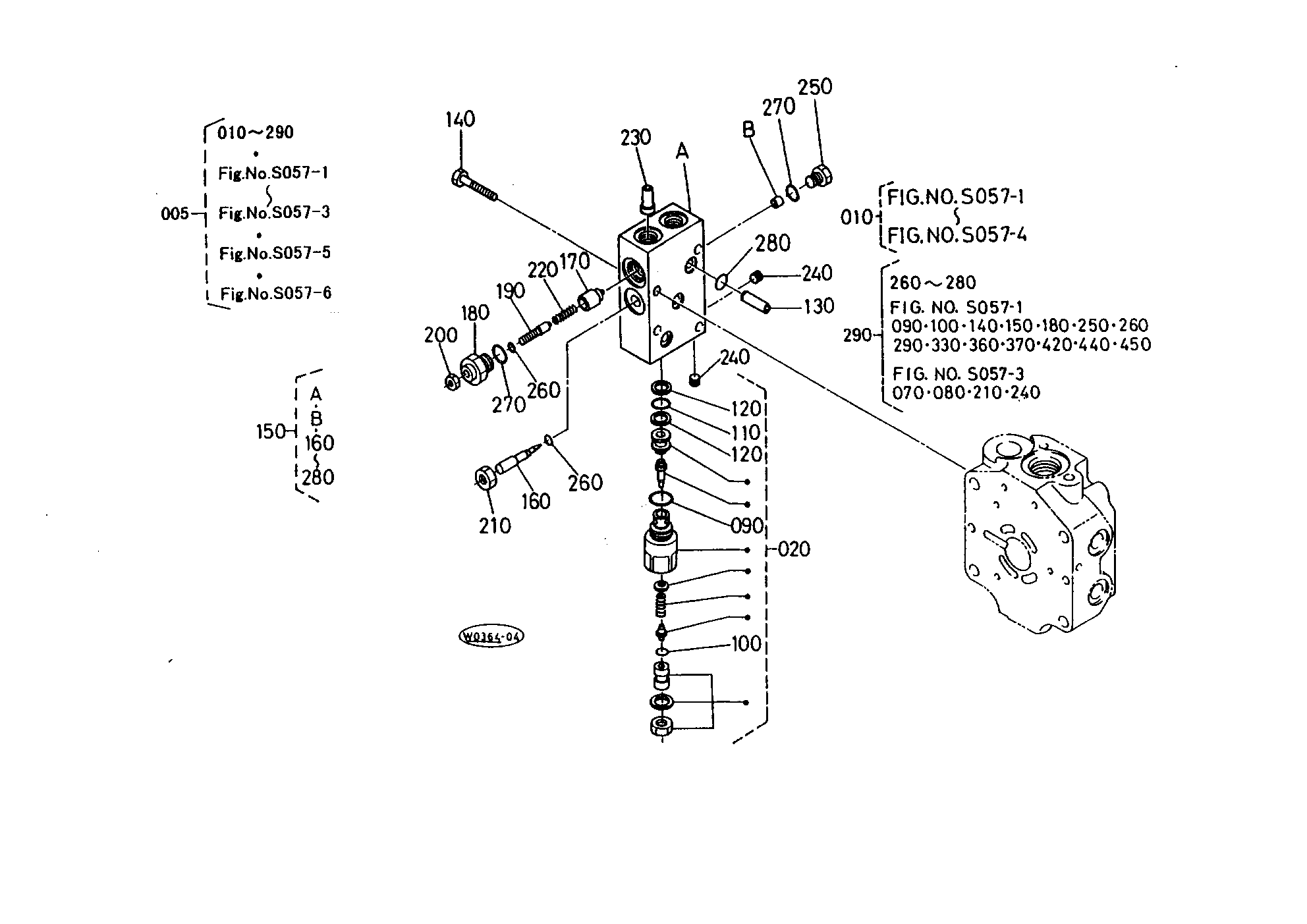

Exploded-view parts diagram "S05705 LST PUMP (COMPONENT PARTS)" for the Kubota R510B. 32 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.

Scroll to zoom Click a part # to view details

Ref # Part Number Qty. Avl. Price (USD) Action
005 PUMP, LST 68891-61112 68891-61114 Discontinued 1 NO LONGER AVAILABLE $16,614.73
020 BODY, MID SUBASS 68881-97300 Discontinued 1 NO LONGER AVAILABLE $1,602.71
050 SEAT, SPRING 68881-97390 1 AVAILABLE TO ORDER $107.23
060 SPRING 68881-97410 Discontinued 1 NO LONGER AVAILABLE $29.20
070 O-Ring Seal 04810-00140 04817-00140 1 12 IN STOCK $2.50
080 PLUG 68881-97420 1 AVAILABLE TO ORDER $349.16
090 NUT 68881-97430 Discontinued 1 NO LONGER AVAILABLE $141.73
100 RING, BACK-UP 68881-96760 Discontinued 1 NO LONGER AVAILABLE $4.58
110 O-Ring Seal 04810-00090 04817-00090 1 2 IN STOCK $1.07
140 PLUG 68881-96740 1 AVAILABLE TO ORDER $13.56
160 PLUG 68881-97450 1 AVAILABLE TO ORDER $90.13
170 Hydraulic O-Ring Seal 04810-00110 04817-00110 1 12 IN STOCK $2.50
240 ORIFICE ASSY. 68881-97400 Discontinued 1 NO LONGER AVAILABLE $781.25
260 O RING 04810-00160 1 10 IN STOCK $2.21
270 PIPE ORIFICE ASS 68881-97600 Discontinued 1 NO LONGER AVAILABLE $225.17
280 O-Ring Seal 04810-00120 04817-00120 1 5 IN STOCK $2.50
290 BOLT, SOCKET HEA 68881-97310 Discontinued 1 NO LONGER AVAILABLE $13.32
300 O-Ring 04810-00070 04817-00070 1 11 IN STOCK $2.50
310 SPOOL 68881-97380 1 AVAILABLE TO ORDER $303.64
320 SEAL, DUST 68881-97640 1 AVAILABLE TO ORDER $14.13
330 GASKET 68881-97650 Discontinued 1 NO LONGER AVAILABLE $14.49
340 PLATE 68881-97470 1 AVAILABLE TO ORDER $568.09
350 BOLT, SOCKET HEA 68881-97480 Discontinued 1 NO LONGER AVAILABLE $13.32
360 PLATE, PICKUP 68881-97660 Discontinued 1 NO LONGER AVAILABLE $1,246.38
370 VALVE, SOLENOID 68881-97510 Discontinued 1 NO LONGER AVAILABLE $1,173.38
380 BOLT, SOCKET HEA 68881-97670 Discontinued 1 NO LONGER AVAILABLE $26.07
390 PLUG 68881-97460 1 AVAILABLE TO ORDER $57.48
400 ROD ASSY. 68881-97500 1 AVAILABLE TO ORDER $667.05
410 FILTER 68881-97630 Discontinued 1 NO LONGER AVAILABLE $56.77
420 O RING 04810-00080 04817-00080 1 8 IN STOCK $2.26
430 PLUG 68881-96470 1 AVAILABLE TO ORDER $71.45
440 KIT, SERVO REG R 68881-97700 Discontinued 1 NO LONGER AVAILABLE $424.72

Showing 1 to 32 of 32 parts
