Kubota KH-66/H KCL S01500 SPEED CONTROL PLATE Parts Diagram

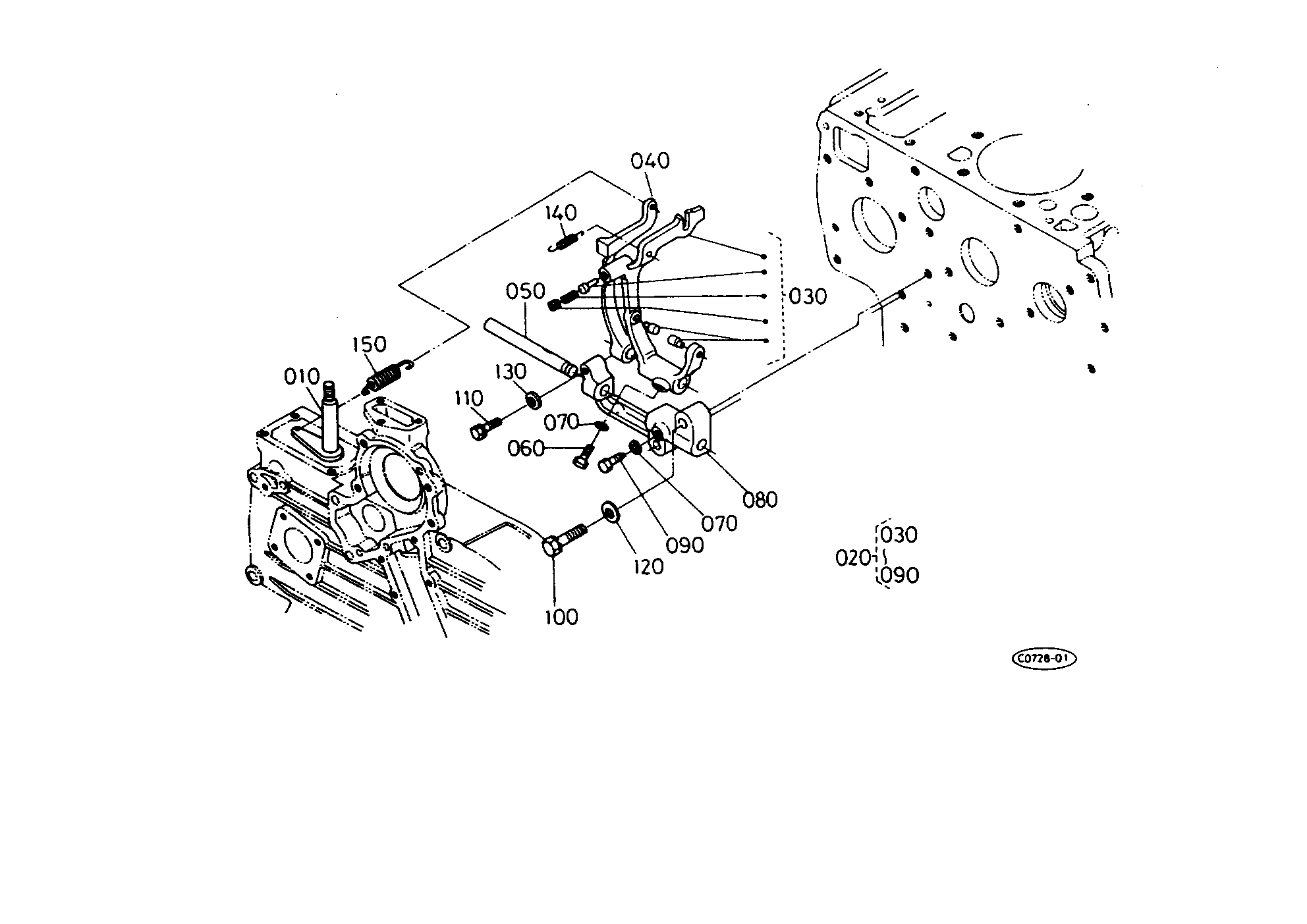

Exploded-view parts diagram "S01500 SPEED CONTROL PLATE" for the Kubota KH-66/H KCL. 23 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | LEVER 15813-57150 | 1 | $59.03 | |||
| 020 | Feather Key 05712-00408 | 1 | $1.51 | |||
| 030 | O-Ring Seal 04811-00120 04816-00120 | 1 | $1.93 | |||
| 040 | Plain Washer (Flat Washer) 04013-50800 04013-50080 | 1 | $0.36 | |||
| 050 | Replacement Nut 02112-60080 02112-50080 | 1 | $0.60 | |||
| 060 | COLLAR 17011-57380 17011-57384 | 1 | $25.74 | |||
| 070 | PLATE, SPEED CON 15221-57110 15221-57112 | 1 | $105.15 | |||
| 080 | GASKET (PLATE) ( 15439-57210 1E147-57210 | 1 | $4.60 | |||
| 090 | Bolt 01123-50620 01023-50620 | 1 | $1.21 | |||
| 100 | STUD 15221-88212 15221-88210 | 1 | $2.34 | |||
| 110 | Spring Washer (Spring Lock Washer) 04512-80060 04512-50060 | 1 | $0.36 | |||
| 120 | Nut (Hardware Fastener) 02056-00060 02056-50060 | 1 | $0.36 | |||
| 130 | BOLT, ADJUSTING 15601-54120 1A021-54120 | 1 | $8.20 | |||
| 140 | NUT 15601-92010 Discontinued | 1 | $9.88 | |||
| 150 | GASKET, COPPER 15601-96651 15601-96650 | 1 | $9.18 | |||
| 160 | NUT, CAP 14601-14620 15841-14620 | 1 | $8.66 | |||
| 170 | CAP 16241-54420 16221-54420 | 1 | $8.30 | |||
| 180 | APPARATUS, IDLE 15521-54090 | 1 | $42.05 | |||
| 190 | ASSY BOLT, ADJUS 15521-54100 15521-54103 | 1 | $19.52 | |||
| 200 | NUT 15401-92010 | 1 | $3.12 | |||
| 210 | NUT, CAP 15521-92330 Discontinued | 1 | $5.94 | |||
| 220 | Copper Gasket 15451-96730 15021-33660 | 1 | $0.99 | |||
| 230 | CAP 15521-54270 | 1 | $11.62 | |||
Showing 1 to 23 of 23 parts
