Kubota M-110DTC P16501 COMPRESSOR BRACKET [OLD TYPE] Parts Diagram

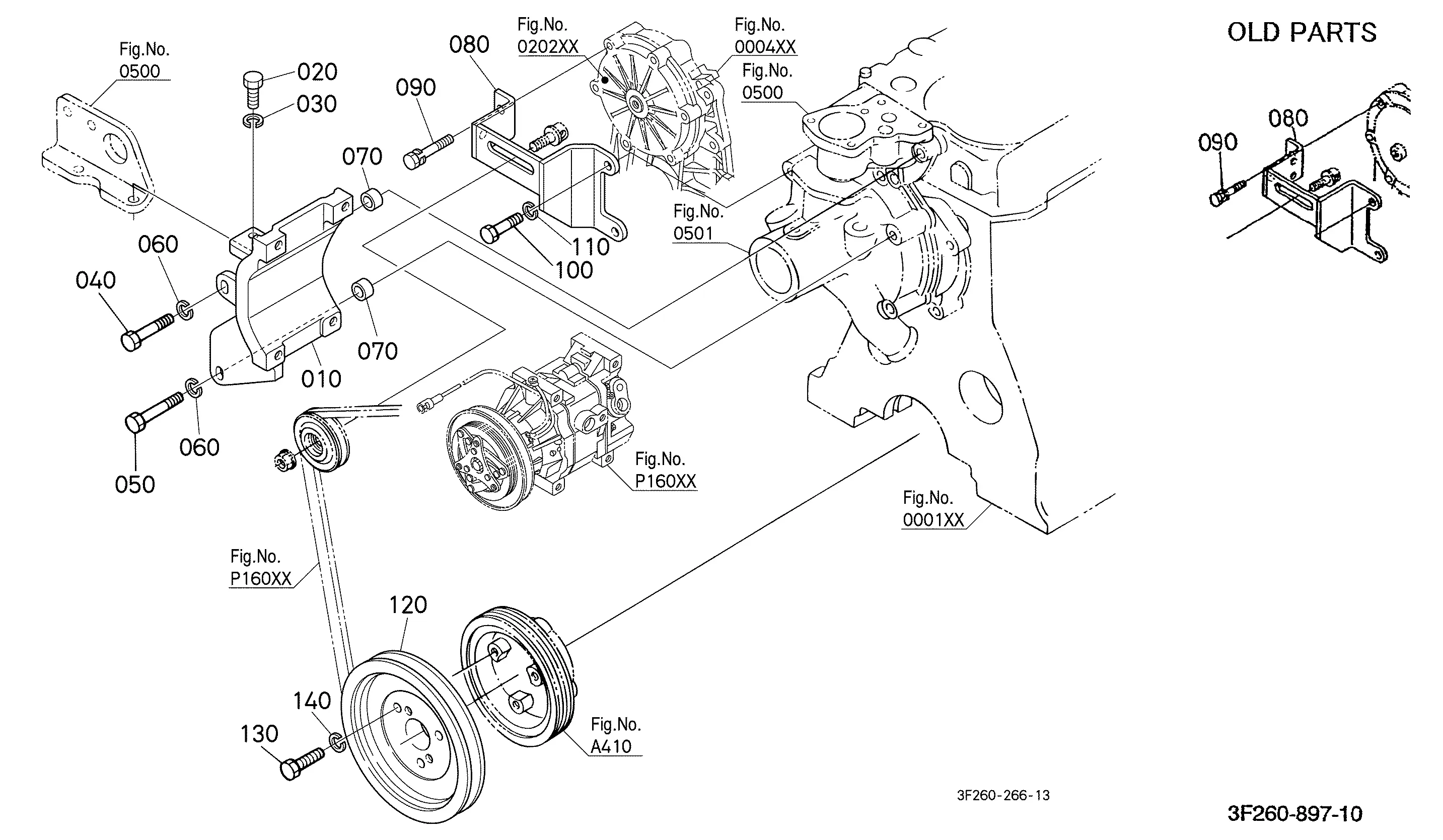

Exploded-view parts diagram "P16501 COMPRESSOR BRACKET [OLD TYPE]" for the Kubota M-110DTC, Kubota M-110FC, Kubota M-120DTC and Kubota M-120FC. 13 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | COMPRESSOR BRACK 16544-76150 Discontinued | 1 | $282.41 | |||
| 020 | BOLT 01056-50828 | 1 | $1.87 | |||
| 030 | Spring Washer (Lock Washer) 04512-60080 04512-70080 | 1 | $0.60 | |||
| 040 | BOLT 01076-51060 | 1 | $5.37 | |||
| 050 | BOLT 01076-51070 | 1 | $5.89 | |||
| 060 | Spring Washer (Lock Washer) 04512-60100 04512-70100 | 1 | $0.60 | |||
| 070 | COLLAR 15481-76160 | 1 | $14.19 | |||
| 080 | SUPPORT 3F260-50640 | 1 | $189.47 | |||
| 090 | BOLT * 01123-50870 | 1 | $2.36 | |||
| 100 | BOLT 01073-51060 | 1 | $3.16 | |||
| 120 | PULLEY 33970-50882 | 1 | $225.31 | |||
| 130 | BOLT 01076-51240 | 1 | $2.75 | |||
| 140 | Spring Washer 04512-60120 04512-70120 | 1 | $0.36 | |||
Showing 1 to 13 of 13 parts
