Kubota M-110DTC P16002 COMPRESSOR [NEW TYPE] Parts Diagram

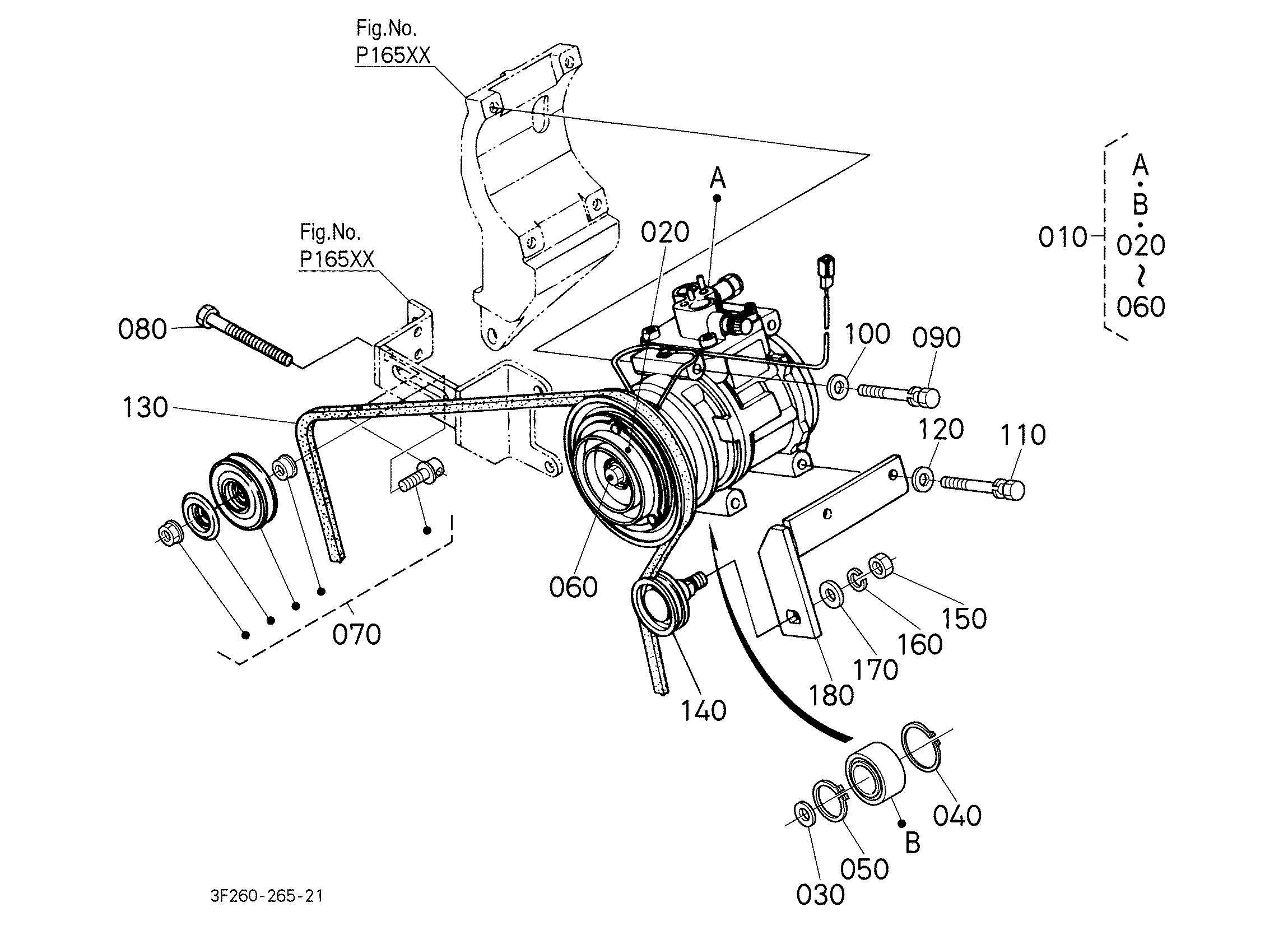

Exploded-view parts diagram "P16002 COMPRESSOR [NEW TYPE]" for the Kubota M-110DTC, Kubota M-110FC, Kubota M-120DTC and Kubota M-120FC. 20 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY COMPRESSOR 6A671-97110 6A671-97114 | 1 | $763.30 | |||
| 010 | COMPRESSOR *** T1065-72213 Discontinued | 1 | $2,082.13 | |||
| 020 | ASSY CLUTCH 6A671-97310 | 1 | $1,093.05 | |||
| 020 | ASSY CLUTCH, MAG T1065-87310 T3635-87310 | 1 | $964.20 | |||
| 030 | SCREW, WITH WASH T1065-87320 | 1 | $3.59 | |||
| 040 | ASSY WIRE 6A671-97410 | 1 | $218.38 | |||
| 050 | SHIM T1065-87340 | 1 | $1.44 | |||
| 050 | SHIM T1065-87350 | 1 | $4.11 | |||
| 050 | SHIM T1065-87360 | 1 | $4.11 | |||
| 050 | SHIM T1065-87370 | 1 | $4.11 | |||
| 050 | SHIM (1.0, LS30) T1065-87380 | 1 | $5.61 | |||
| 060 | CIR-CLIP T1065-87440 | 1 | $13.43 | |||
| 070 | CIR-CLIP T1065-87450 | 1 | $13.43 | |||
| 080 | BOLT T1065-87460 | 1 | $3.16 | |||
| 090 | PULLEY 1, TENSIO 3G710-50090 | 1 | $132.82 | |||
| 100 | BOLT 3F260-50650 | 1 | $19.70 | |||
| 100 | BOLT 6A671-75342 | 1 | $11.17 | |||
| 110 | BOLT 01125-50875 | 1 | $3.16 | |||
| 120 | CLAMP, CORD * 13824-67580 | 1 | $1.83 | |||
| 130 | Belt 33740-50890 | 1 | $27.07 | |||
Showing 1 to 20 of 20 parts
