Kubota SVL90-2C J19401 OIL PIPING (S/P) [EXCEPT HIGH FLOW] Parts Diagram

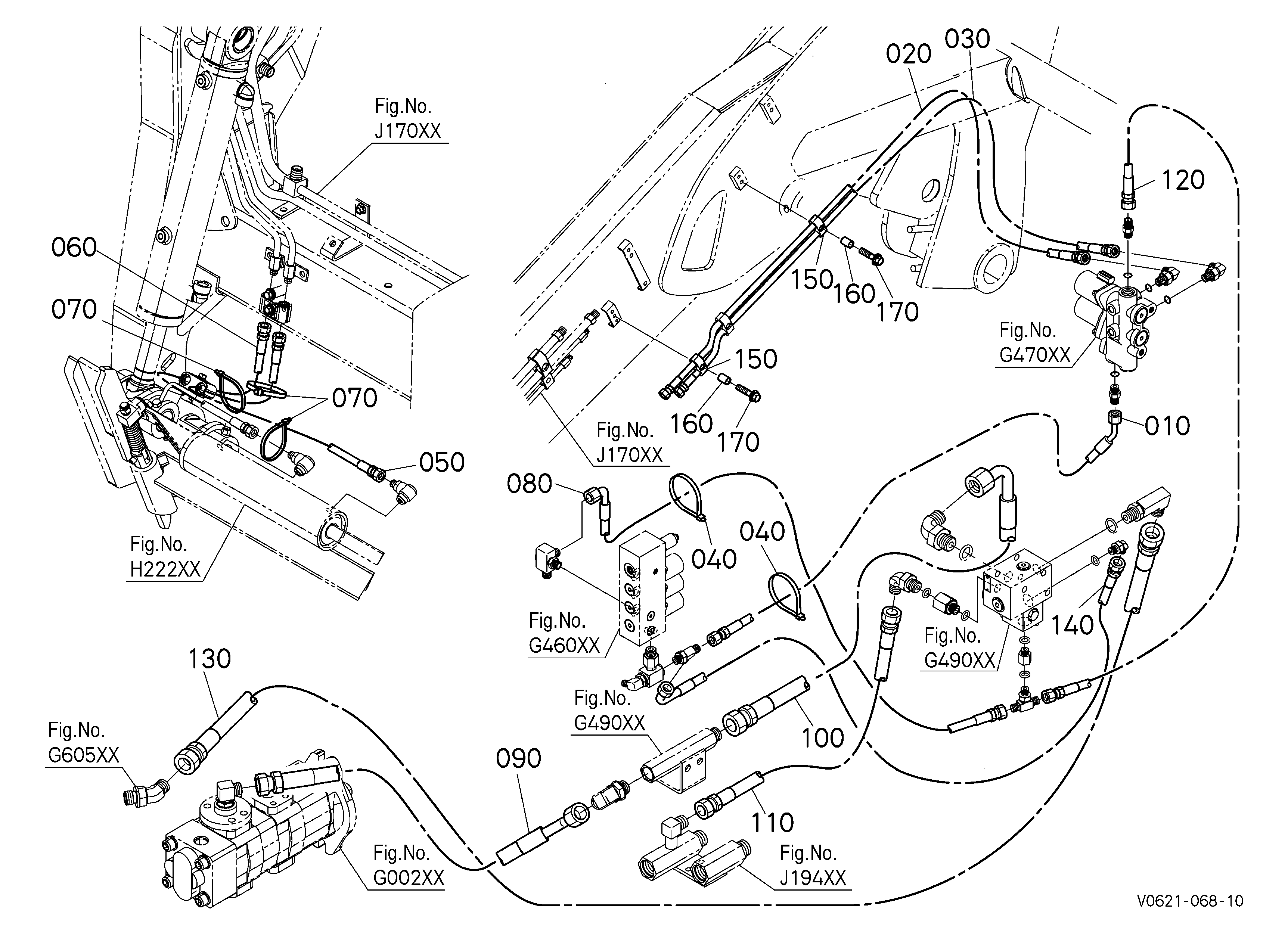

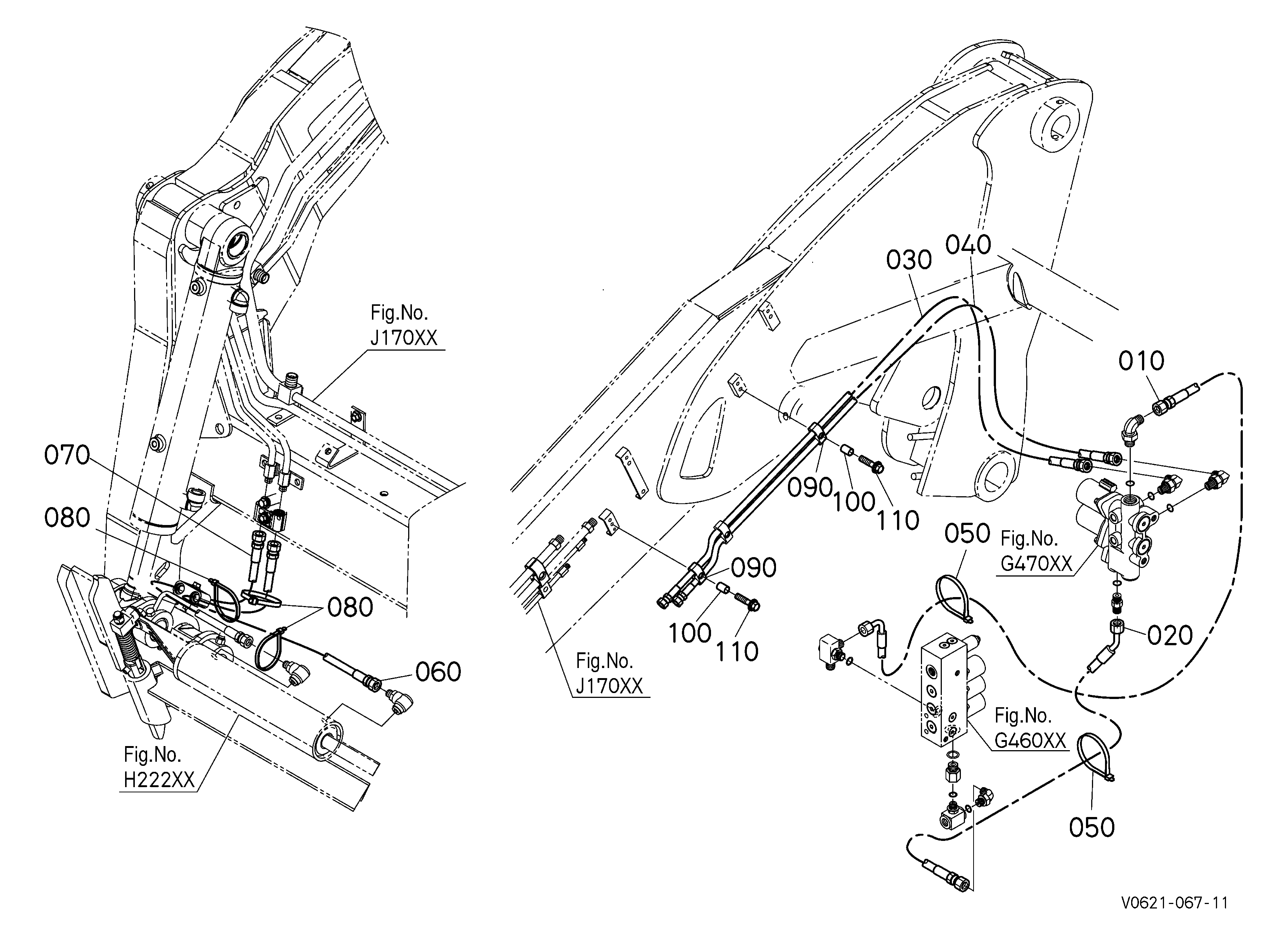

Exploded-view parts diagram "J19401 OIL PIPING (S/P) [EXCEPT HIGH FLOW]" for the Kubota SVL90-2C. 21 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.

Scroll to zoom Click a part # to view details

Ref # Part Number Qty. Avl. Price (USD) Action
010 JOINT, PIPE V0611-68352 1 AVAILABLE TO ORDER $321.05
020 JOINT,PIPE MR003-60610 1 AVAILABLE TO ORDER $61.53
030 O-Ring Seal (Hydraulic/Oil Piping) 04817-00240 1 2 IN STOCK $2.50
040 BOLT 01025-50816 01125-50825 1 8 IN STOCK $1.77
050 HOSE, HYDRAULIC V0621-66443 1 AVAILABLE TO ORDER $485.87
060 HOSE,HYDRAULIC V0621-66640 1 AVAILABLE TO ORDER $92.95
070 HOSE, HYDRAULIC V0611-66650 V0611-66652 1 AVAILABLE TO ORDER $109.89
080 HOSE, HYDRAULIC V0611-67210 1 AVAILABLE TO ORDER $344.72
090 HOSE, HYDRAULIC V0611-67220 1 AVAILABLE TO ORDER $351.54
100 HOSE, HYDRAULIC V0621-67283 1 AVAILABLE TO ORDER $970.40
110 HOSE, HYDRAULIC V0621-67293 1 AVAILABLE TO ORDER $903.51
120 BAND, CORD 55311-41261 55311-41260 1 AVAILABLE TO ORDER $4.85
130 CUSHION V0621-69910 1 AVAILABLE TO ORDER $23.60
140 CLAMP V0621-69920 1 AVAILABLE TO ORDER $15.69
150 COLLAR V0621-69930 1 AVAILABLE TO ORDER $12.08
160 BOLT 01133-51055 1 7 IN STOCK $3.14
160 BOLT, FLANGE 01774-51050 1 AVAILABLE TO ORDER $4.51
170 Plain Washer (Flat Washer) 04013-10100 04013-50100 1 24 IN STOCK $0.60
180 CLAMP, HOSE HYDR V0511-68892 1 2 IN STOCK $9.47
190 COLLAR, HOSE CLA V0511-68870 1 3 IN STOCK $7.75
200 BOLT 01125-50845 1 4 IN STOCK $2.54

Showing 1 to 21 of 21 parts
