Kubota SVL90-2C J19002 OIL PIPING (HITCH) [HYDRAULIC HITCH[EXCEPT HIGH FLOW]] Parts Diagram

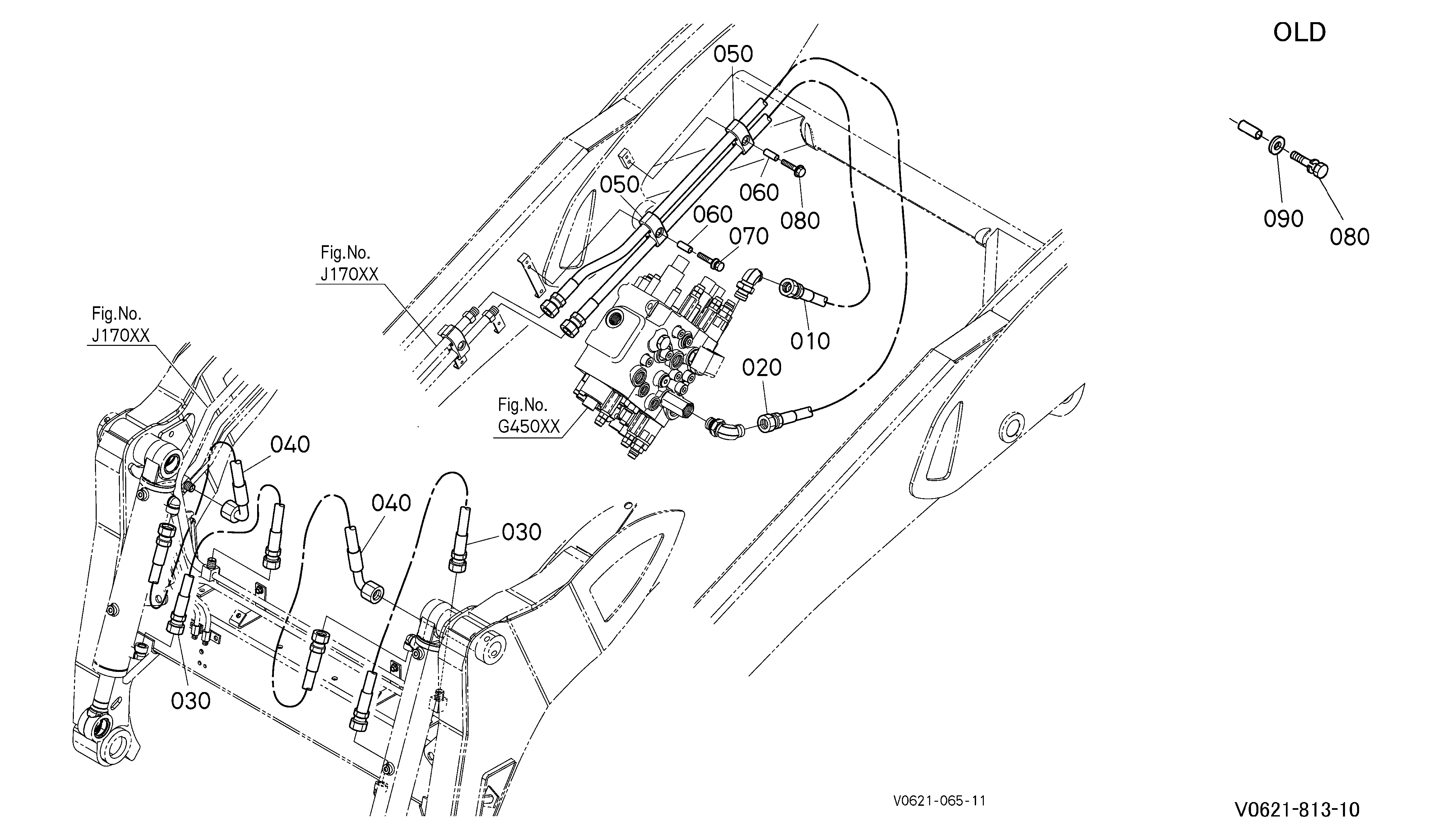

Exploded-view parts diagram "J19002 OIL PIPING (HITCH) [HYDRAULIC HITCH[EXCEPT HIGH FLOW]]" for the Kubota SVL90-2C. 11 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.

Scroll to zoom Click a part # to view details

Ref # Part Number Qty. Avl. Price (USD) Action
010 HOSE,HYDRAULIC V0611-67613 1 AVAILABLE TO ORDER $128.26
010 HOSE,HYDRAULIC V0621-67610 1 AVAILABLE TO ORDER $135.48
020 HOSE, HYDRAULIC V0621-67622 1 AVAILABLE TO ORDER $115.66
030 HOSE, HYDRAULIC V0621-67632 1 AVAILABLE TO ORDER $377.82
040 HOSE, HYDRAULIC V0621-67642 1 AVAILABLE TO ORDER $404.41
050 BAND, CORD 55311-41261 55311-41260 1 AVAILABLE TO ORDER $4.85
060 HOSE HYDRAULIC V0511-67663 V0511-67664 1 AVAILABLE TO ORDER $129.20
070 HOSE,HYDR,ASS V0511-67673 V0511-67675 1 AVAILABLE TO ORDER $107.15
090 CLAMP, HOSE HYDR V0511-68912 1 7 IN STOCK $9.47
100 COLLAR, HOSE CLA V0511-68870 1 3 IN STOCK $7.75
110 BOLT 01125-50845 1 4 IN STOCK $2.54

Showing 1 to 11 of 11 parts
