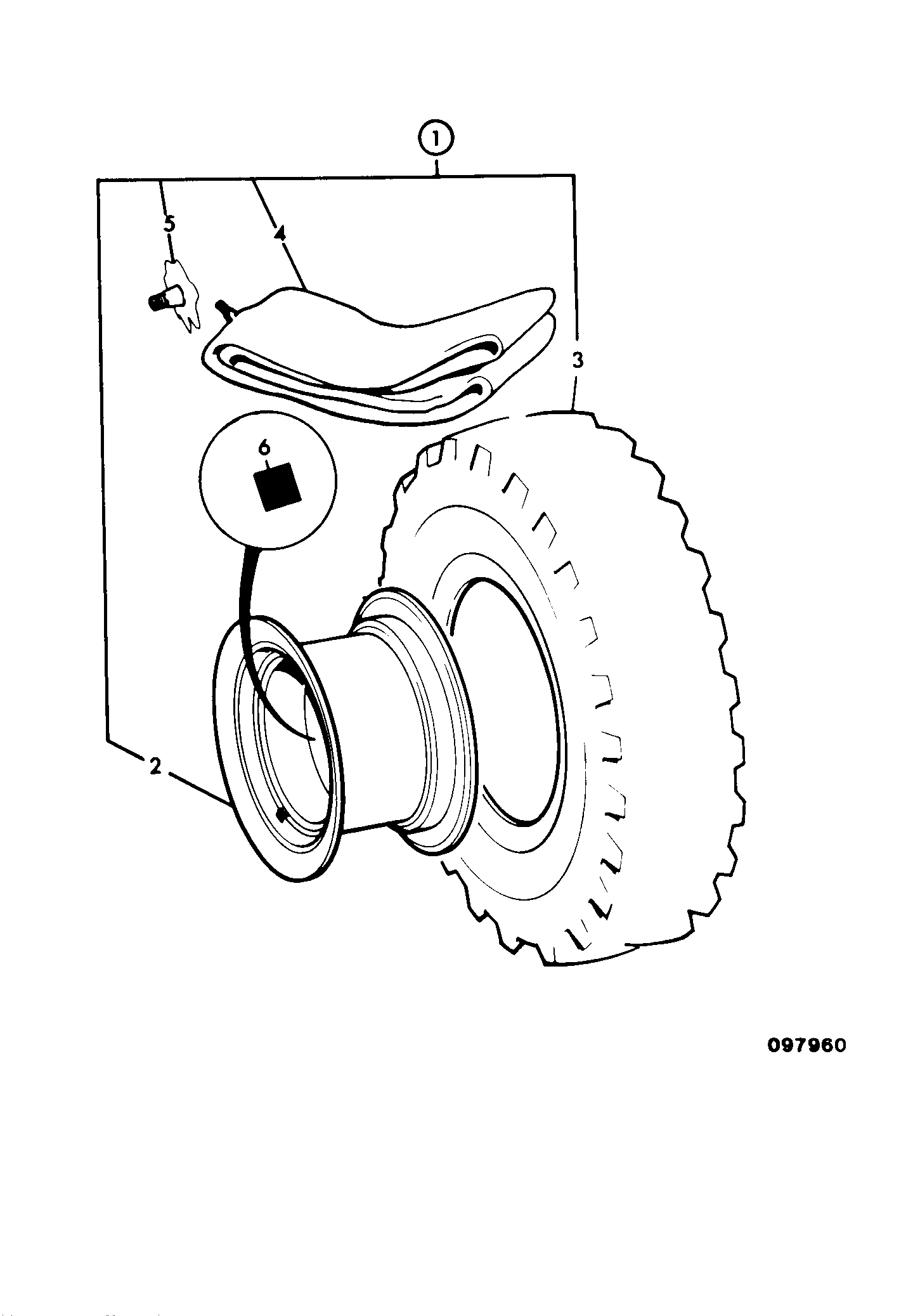

F3-6-11 WHEEL & TYRE ASSEMBLY SS/5236 FRONT & REAR, AWS 16.9 R28 XM37 Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	WHEEL NUT 3/4"UNF 40/304179 400/N6589	1	3 IN STOCK	$7.98	Quantity
2	RIM W15LX28 +13MM 41/940082 334/L2029	1	AVAILABLE TO ORDER	$1,725.58	Quantity
3	TYRE VALVE 151/05201	1	AVAILABLE TO ORDER	$24.00	Quantity
4	TYRE 440/80-R28 MICHELIN 42/103000 42/925375	1	AVAILABLE TO ORDER	$4,996.75	Quantity

Showing 1 to 4 of 4 parts
