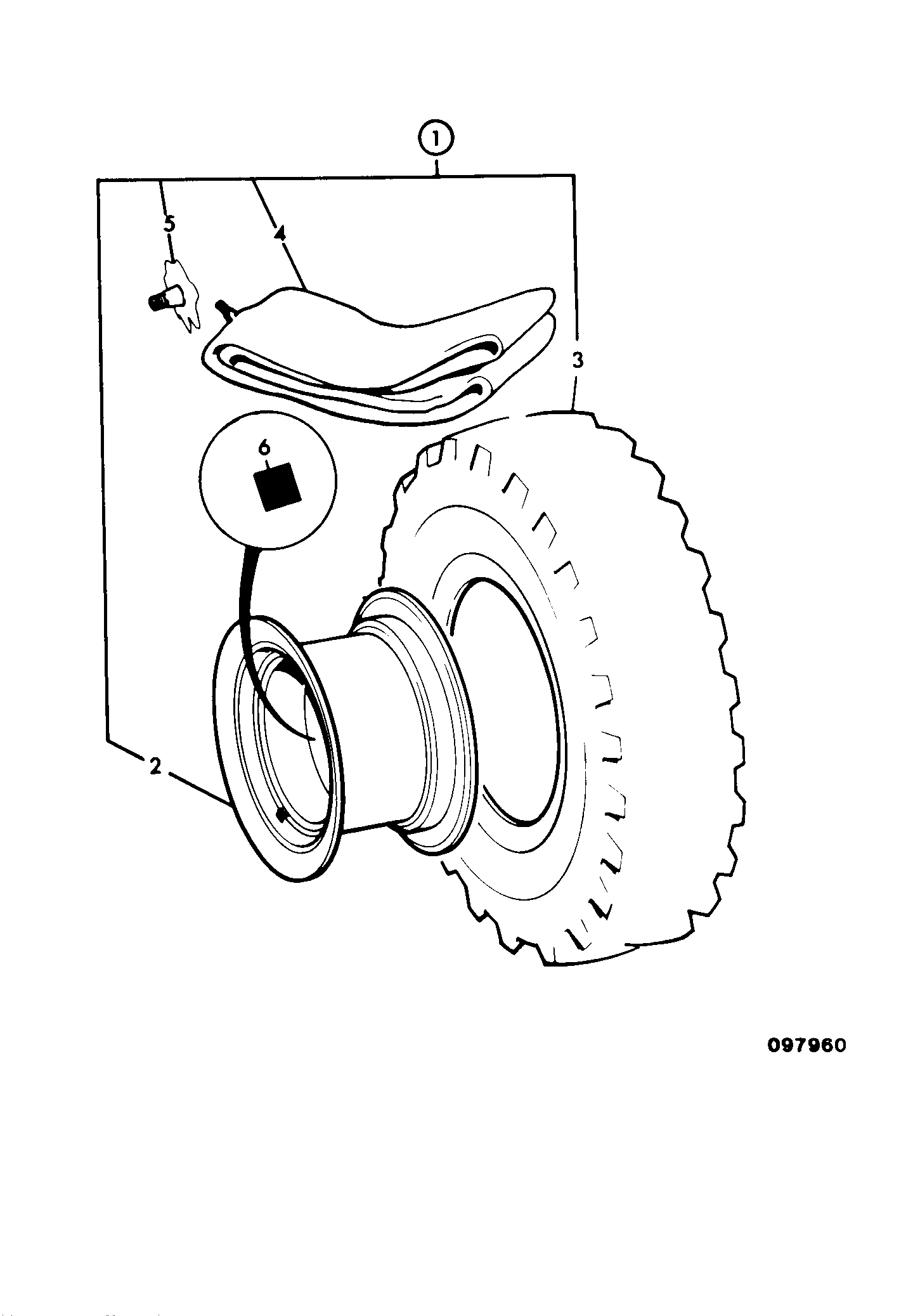

F3-5-9 WHEEL & TYRE ASSEMBLY REAR, 2WS 480/80R26 Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	WHEEL 2ws 480/80xR26 G/YEAR 128/10513	1	AVAILABLE TO ORDER	$7,277.64	Quantity
2	WHEEL RIM DW16LX26 2WS 41/934100	1	AVAILABLE TO ORDER	$1,194.94	Quantity
3	TYRE 480/80R26 GOODYEAR NLA 42/925093	1	AVAILABLE TO ORDER	$5,241.60	Quantity
5	TYRE VALVE 151/05201	1	AVAILABLE TO ORDER	$24.00	Quantity

Showing 1 to 4 of 4 parts
