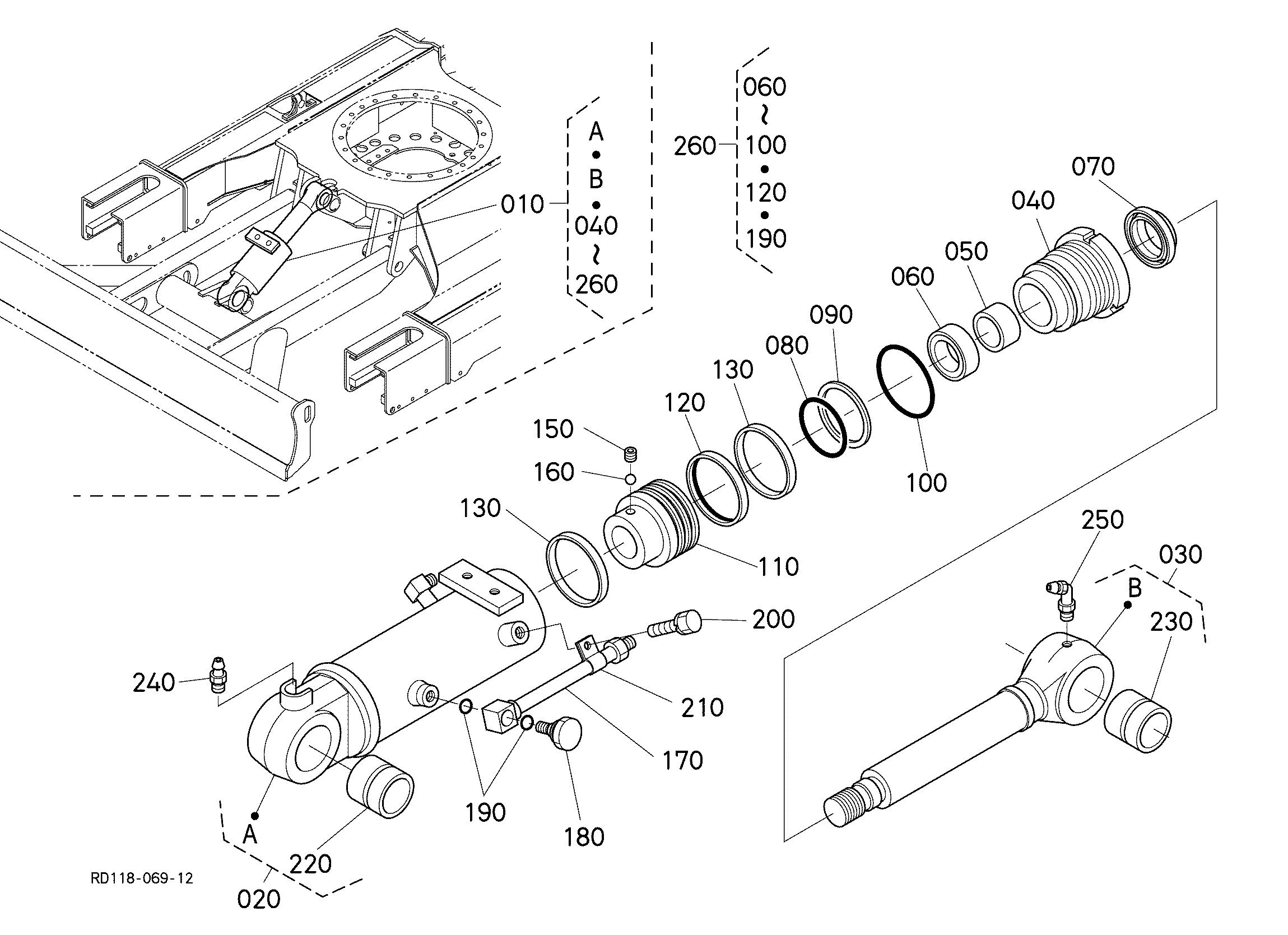

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY CYLINDER,AR RD118-67602 RD118-67603 | 1 | $3,128.14 | |||
| 020 | ASSY TUBE,ARM CY RD118-71512 | 1 | $2,650.18 | |||
| 030 | ASSY ROD,ARM CYL RD118-71522 | 1 | $1,979.50 | |||
| 040 | CYLINDER HEAD RD511-71730 | 1 | $651.88 | |||
| 050 | BUSH RD201-71740 | 1 | $162.10 | |||
| 060 | U-RING 68371-92140 Discontinued | 1 | $52.08 | |||
| 070 | RING, WIPER RP401-71640 | 1 | $89.39 | |||
| 080 | O-RING 68591-67860 | 1 | $18.35 | |||
| 090 | RING BACK UP RD511-71740 | 1 | $44.72 | |||
| 100 | O-Ring Seal 68869-93440 04811-50750 | 1 | $4.13 | |||
| 110 | HOLDER RD118-71530 | 1 | $516.67 | |||
| 120 | SEAL, CUSHION RD118-71540 | 1 | $152.42 | |||
| 130 | SPACER RD118-71550 | 1 | $205.00 | |||
| 140 | COLLAR RD118-71560 | 1 | $340.38 | |||
| 150 | RING BACK UP RP401-71610 | 1 | $72.41 | |||
| 160 | COLLAR RD118-71570 | 1 | $361.24 | |||
| 170 | PISTON RD511-71750 | 1 | $427.95 | |||
| 180 | RING, SEAL 68741-71840 | 1 | $105.89 | |||
| 190 | RING SLIDE RD511-71760 | 1 | $188.04 | |||
| 200 | SCREW, SET 68493-67650 | 1 | $22.10 | |||
| 210 | BUSH RC418-71560 RC418-71562 | 1 | $175.91 | |||
| 230 | BALL 68493-67670 | 1 | $12.88 | |||
| 240 | COLLAR RD118-71580 | 1 | $392.51 | |||
| 250 | SEAL, CUSHION RD118-71590 | 1 | $154.22 | |||
| 260 | RING, SNAP RD118-71610 | 1 | $85.74 | |||
| 270 | STOPPER RD118-71620 | 1 | $76.20 | |||
| 280 | NIPPLE RD411-71630 | 1 | $156.23 | |||
| 290 | KIT SEAL, ARM- K RD118-71640 | 1 | $376.39 | |||
| 300 | PLUG RD118-71650 | 1 | $159.21 | |||
Showing 1 to 29 of 29 parts
