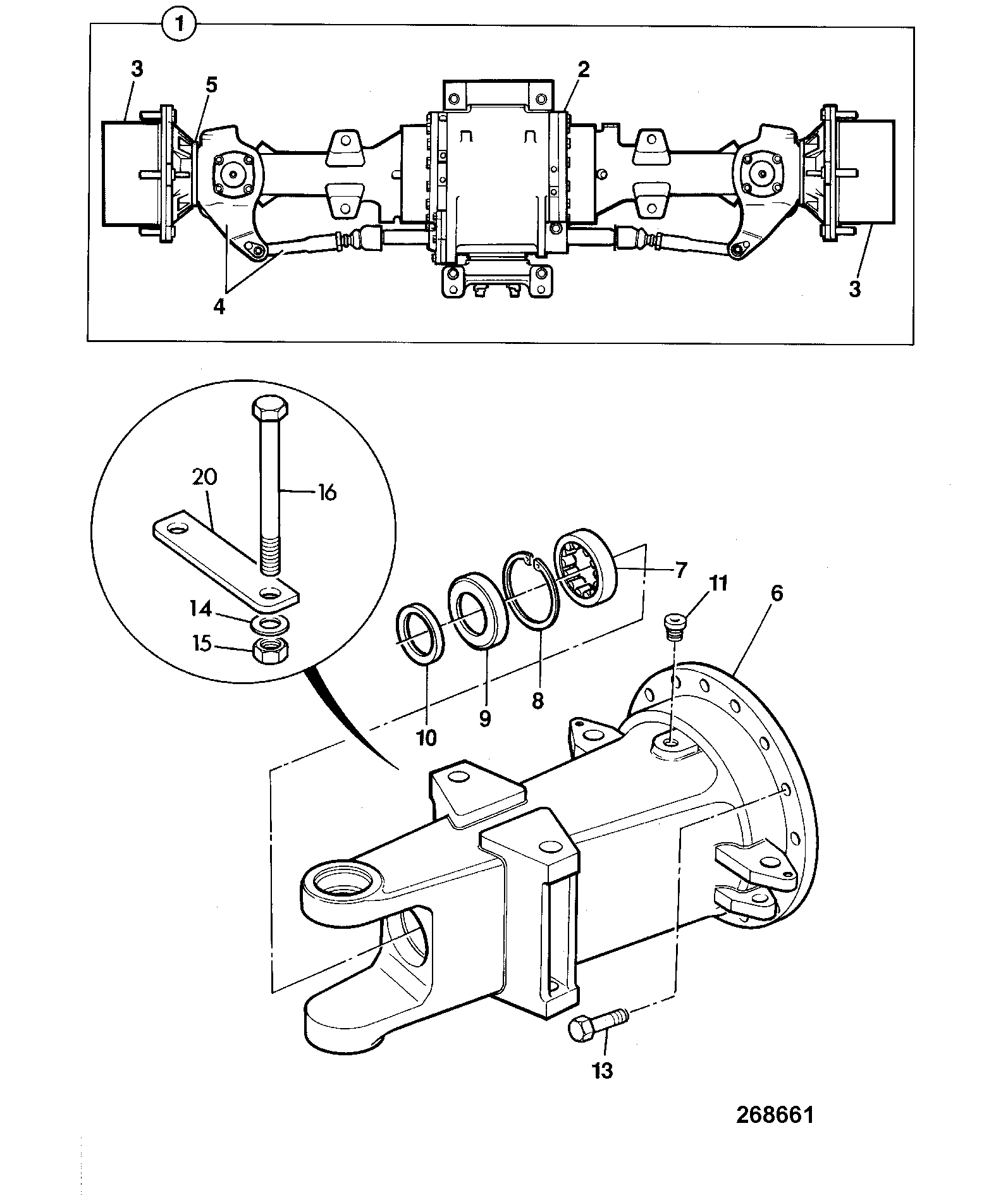

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 6 | DRAIN PLUG - NON-MAGNETIC 816/80037 | 1 | $25.01 | |||
| 7 | CYLINDRICAL ROLLER BEARIN 907/08400 | 1 | $111.82 | |||
| 8 | INT CIRCLIP 80mm [1300 08 2203/1082 | 1 | $2.14 | |||
| 9 | DRIVESHAFT SEAL 904/50040 | 1 | $61.12 | |||
| 10 | MASKING RING 448/04802 | 1 | $1.49 | |||
| 11 | AXLE BREATHER (PLASTIC) 450/13001 453/00303 | 1 | $83.88 | |||
| 13 | BOLT - M16 X 70 FLANGED 826/01083 | 1 | $27.92 | |||
| 14 | WASHER 823/00578 | 1 | $5.78 | |||
| 14 | WASHER -HARDENED 823/10631 | 1 | $6.02 | |||
| 15 | NUT 1"UNF 826/01714 | 1 | $10.72 | |||
| 16 | 1"UNF X 10.5" BOLT 826/01665 | 1 | $54.30 | |||
| 16 | BOLT 1" UNF x 11" GdS 1305/3956Z 1305/3956V | 1 | $85.02 | |||
| 20 | PLATE SPACER 162/03772 | 1 | $37.06 | |||
Showing 1 to 13 of 13 parts
Related Assemblies
-
DIAG-F1-1-3-402246-13985318 F1-1-3 AXLE, PAD MNTD LSD, 29 KPH
View Diagram -
DIAG-F1-1-5-402246 F1-1-5 AXLE,FIXED,L.S.D. 453/33270
View Diagram -
DIAG-F1-1-2-402246-13985314 F1-1-2 AXLE,PAD MNTD MAXTRAC, RATIO 15.78
View Diagram
