Scroll to zoom Click a part # to view details

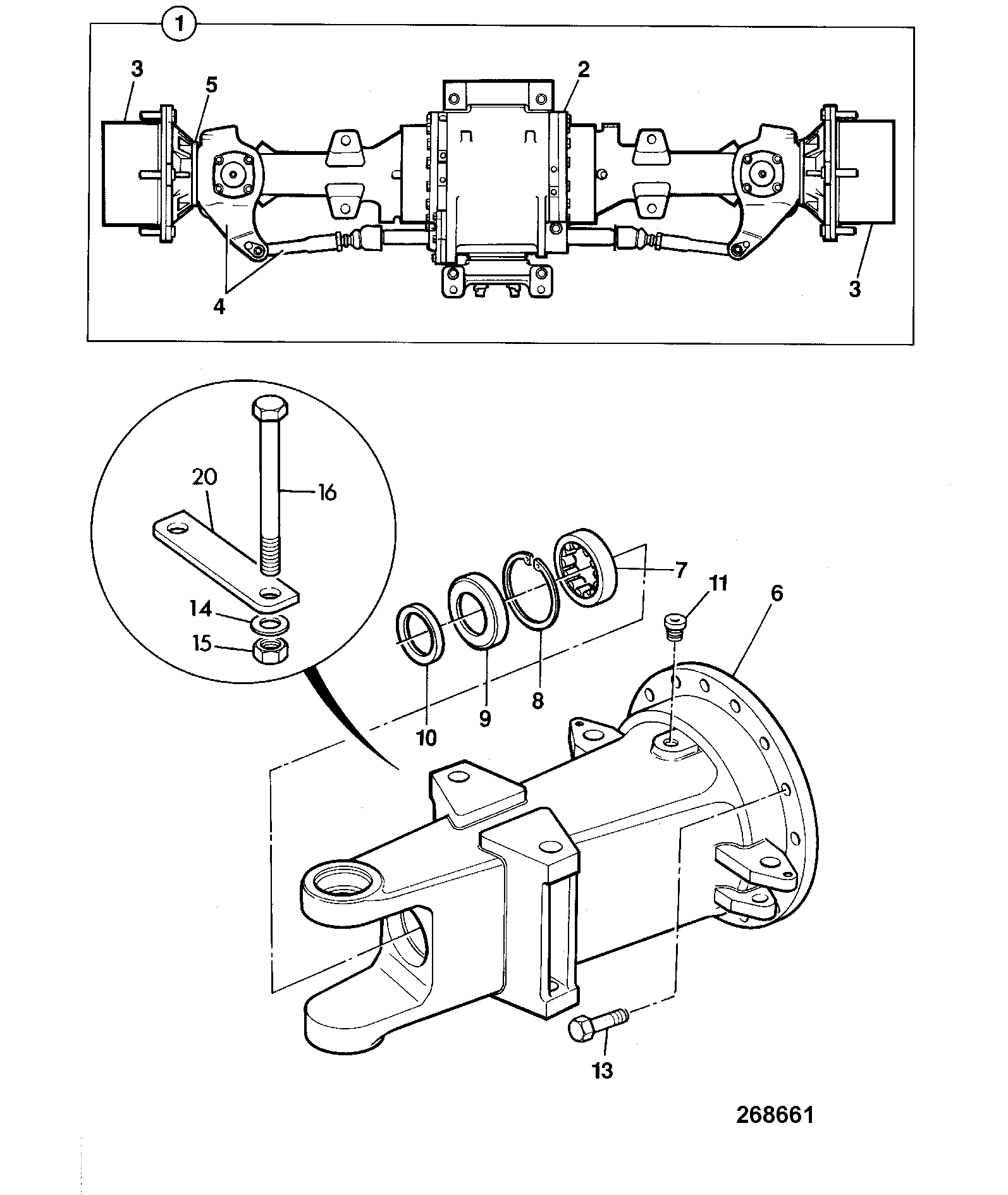

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | GA SD70 AXLE PAD MOUNT 453/33280 | 1 | $24,541.77 | |||
| 7 | CYLINDRICAL ROLLER BEARIN 907/08400 | 1 | $111.82 | |||
| 8 | INT CIRCLIP 80mm [1300 08 2203/1082 | 1 | $2.14 | |||
| 9 | DRIVESHAFT SEAL 904/50040 | 1 | $61.12 | |||
| 10 | MASKING RING 448/04802 | 1 | $1.49 | |||
| 11 | AXLE BREATHER (PLASTIC) 450/13001 453/00303 | 1 | $83.88 | |||
| 13 | BOLT M16 X 70 LG. 1321/3716 | 1 | $11.06 | |||
| 14 | WASHER 823/00578 | 1 | $5.78 | |||
| 14 | WASHER -HARDENED 823/10631 | 1 | $6.02 | |||
| 15 | NUT 1"UNF 826/01714 | 1 | $10.72 | |||
| 16 | 1"UNF X 10.5" BOLT 826/01665 | 1 | $54.30 | |||
| 16 | BOLT 1" UNF x 11" GdS 1305/3956Z 1305/3956V | 1 | $85.02 | |||
| 20 | LOAD SPREADER PLATE 162/03980 332/E6627 | 1 | $86.72 | |||
Showing 1 to 13 of 13 parts
Related Assemblies
-
DIAG-F1-1-1-402246-13985311 F1-1-1 AXLE, PAD MNTD LSD, RATIO 15.78
View Diagram -
DIAG-F1-1-3-402246-13985318 F1-1-3 AXLE, PAD MNTD LSD, 29 KPH
View Diagram -
DIAG-F1-1-4-402246 F1-1-4 AXLE PAD MNTD 29 KPH
View Diagram
