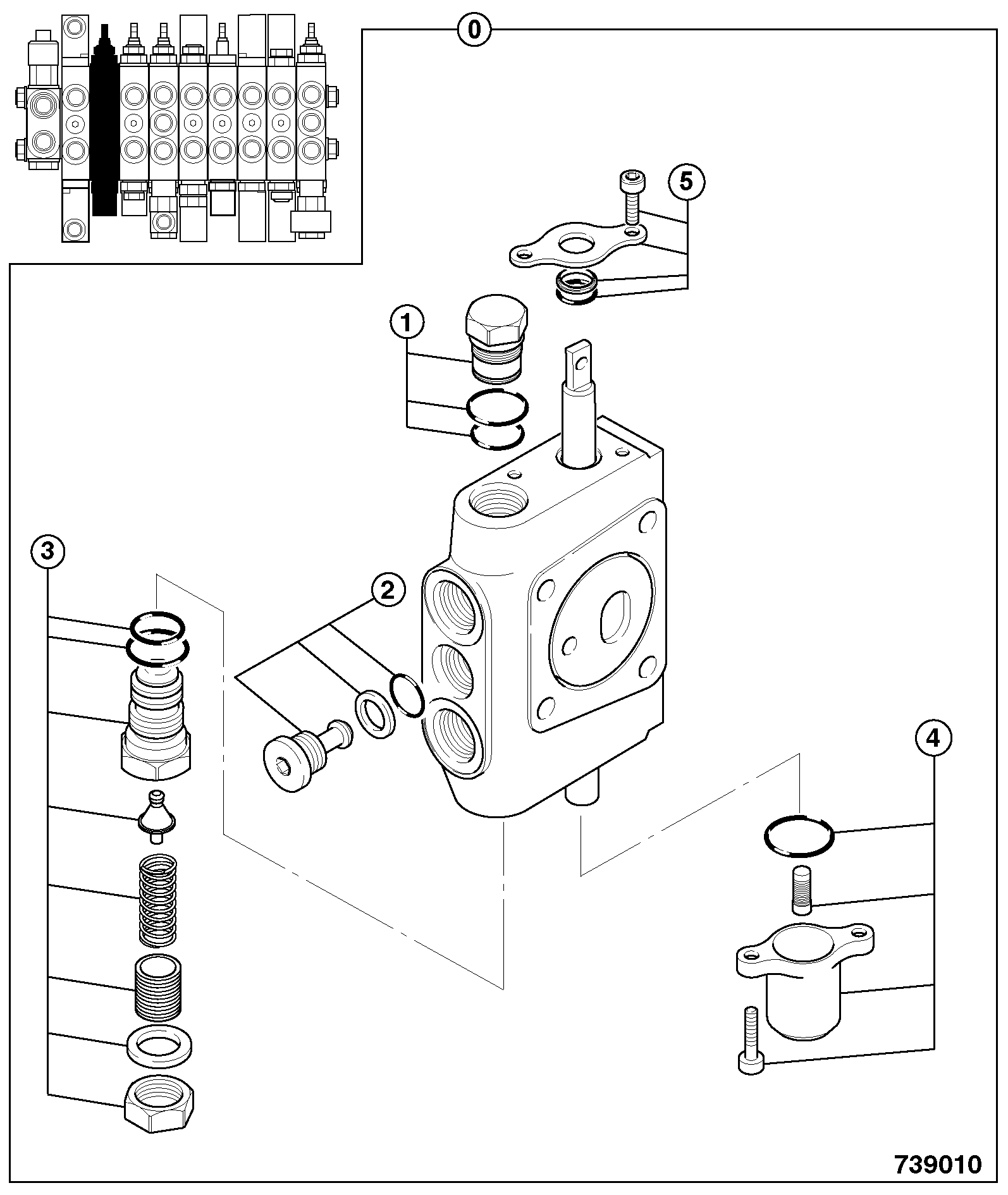

E3-2-2 VALVE SECTION SLEW Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
0	Valve Valve sectio 25/222540	1	AVAILABLE TO ORDER	$937.58	Quantity
1	Kit Spoolend Cover 25/222552	1	AVAILABLE TO ORDER	$121.23	Quantity
2	KIT, PLUG 25/221420	1	AVAILABLE TO ORDER	$221.14	Quantity
3	Kit Spool end Cove 25/222553	1	AVAILABLE TO ORDER	$165.98	Quantity

Showing 1 to 4 of 4 parts

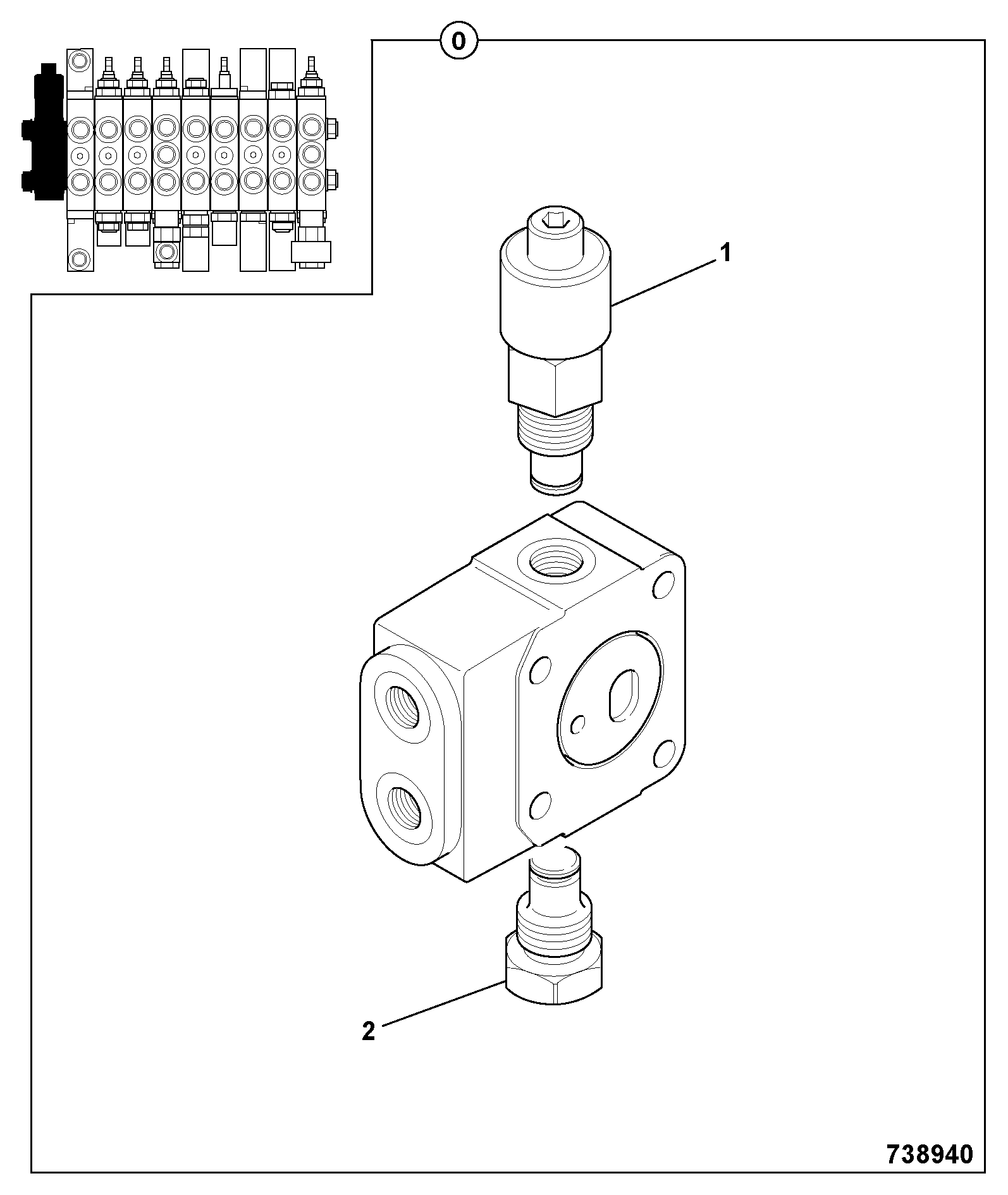

DIAG-E3-2-1-397809 E3-2-1 VALVE, SECTION INLET P3
View Diagram
DIAG-E3-2-3-397809 E3-2-3 VALVE, SECTION DOZER
View Diagram

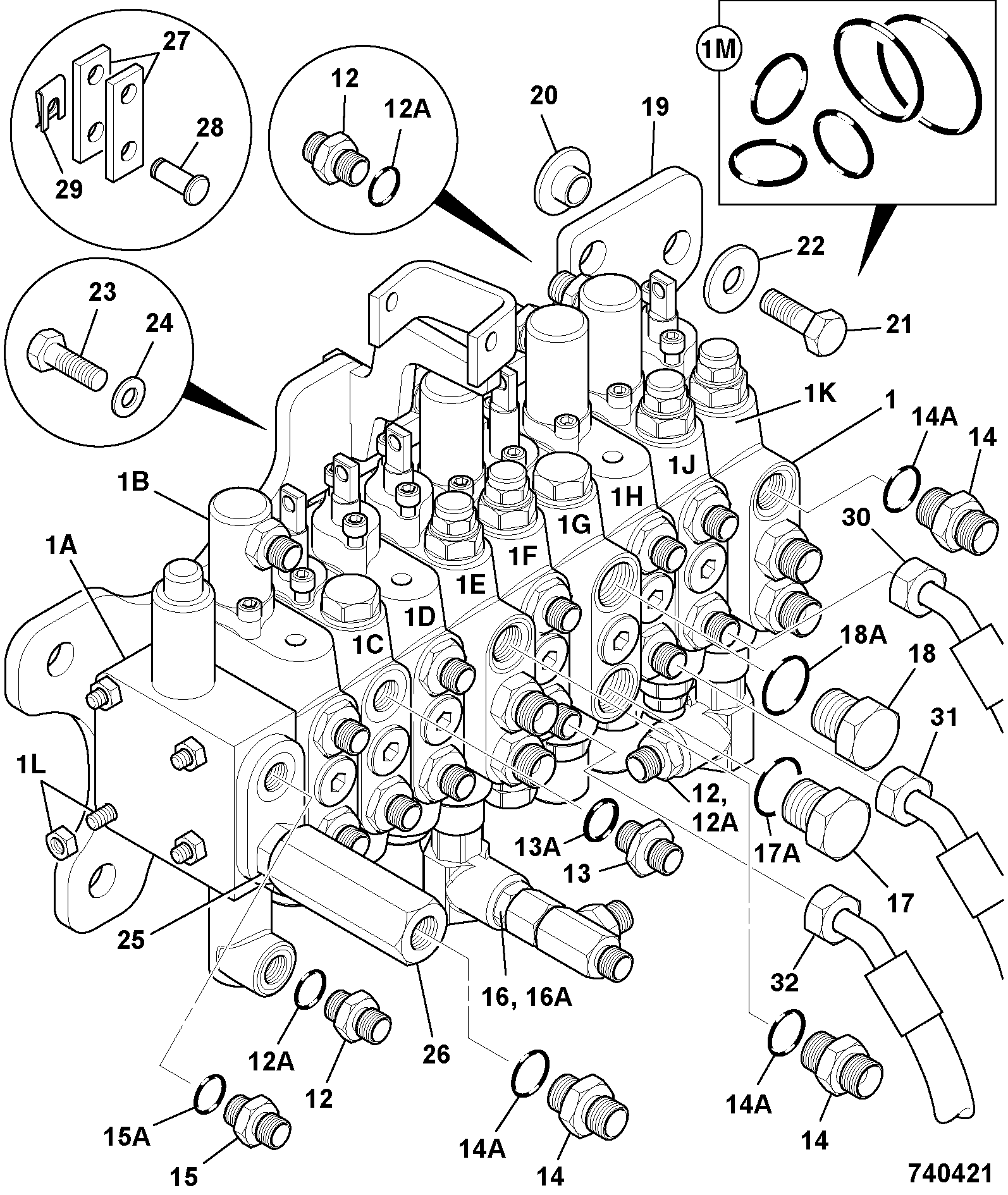

DIAG-E3-1-1-397809 E3-1-1 VALVE, ASSEMBLY 9 SPOOL & ADAPTERS
View Diagram

Previous Assembly DIAG-E3-2-1-397809 E3-2-1 VALVE, SECTION INLET P3 Next Assembly DIAG-E3-2-3-397809 E3-2-3 VALVE, SECTION DOZER
