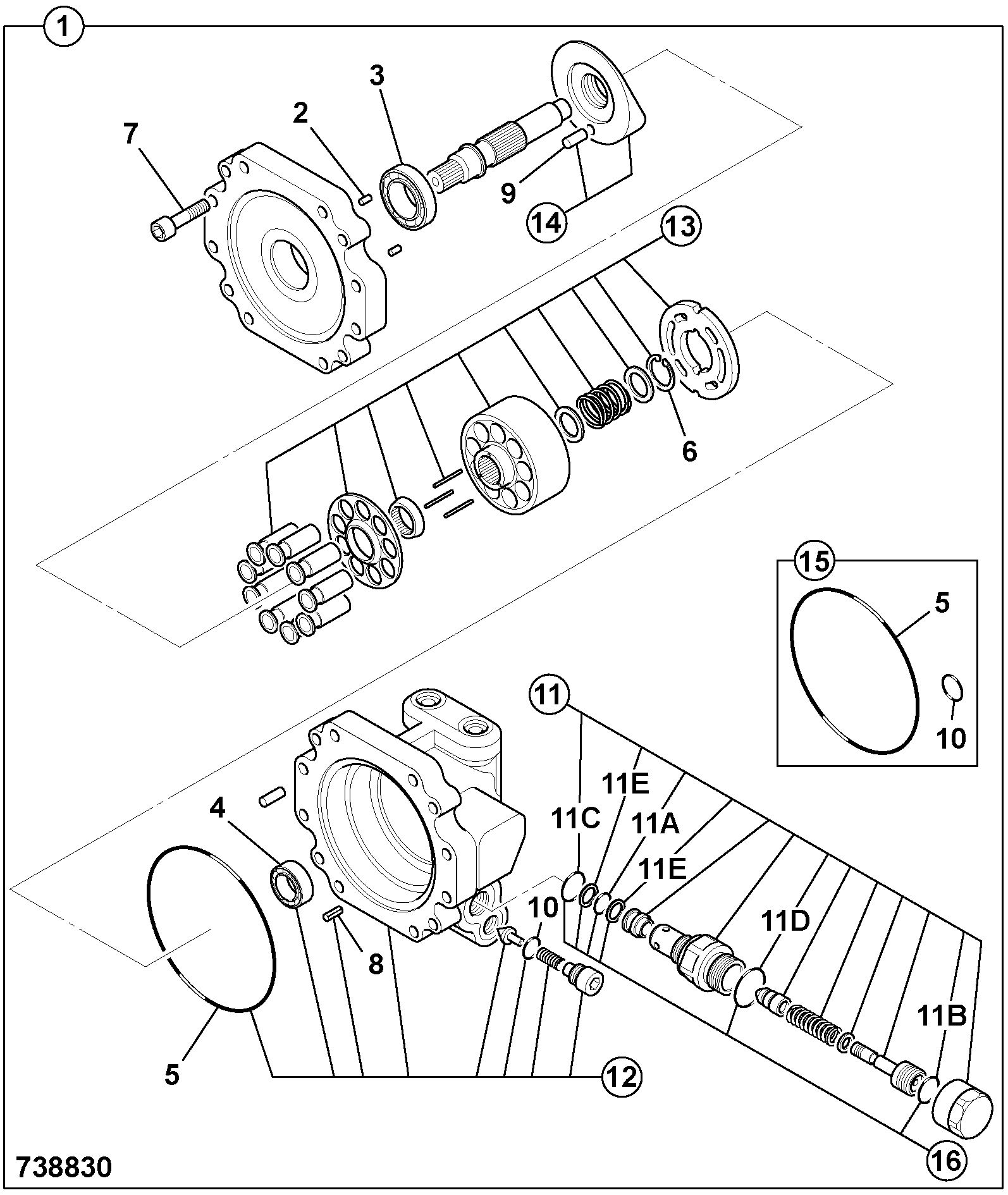

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| CLEVIS PIN 913/10163 | 1 | $19.06 | ||||
| 1 | VALVE 25/222314 | 1 | $7,459.47 | |||
| 1L | KIT TIE ROD 25/222547 | 1 | $82.53 | |||
| 1M | KIT SEAL 25/222548 | 1 | $692.81 | |||
| 12 | ADAPTOR G1/4A-9/16UNF (M) 1620/0002 1620/2051 | 1 | $5.41 | |||
| 12A | O-RING 2401/0505 | 1 | $2.54 | |||
| 13 | ADAPTOR G1/4A-3/4UNF(M) (R) 1620/2063 | 1 | $4.62 | |||
| 13A | O-RING 2401/0506 | 1 | $1.46 | |||
| 14 | ADAPTOR 3/8BSPx3/4SAE 1620/2053 | 1 | $2.85 | |||
| 15 | ADAPTOR G5/8Ax7/8SAE 1620/0007 1620/2056 | 1 | $12.58 | |||
| 15A | 'O' RING (P564) 2401/0507 | 1 | $1.46 | |||
| 16 | ADAPTOR 1/4 BSP TEE-M/F/M 816/90013 | 1 | $80.41 | |||
| 16A | O RING 2301/0101 | 1 | $1.46 | |||
| 17 | PLUG 3/4 "O RING BOSS 1745/0003 | 1 | $2.56 | |||
| 20 | RESILIENT MOUNT 141/00936 | 1 | $17.97 | |||
| 21 | SET-SCREW M10 L-_30mm 1315/0408D | 1 | $1.55 | |||
| 22 | PLAIN WASHER M10 823/00326 | 1 | $1.78 | |||
| 23 | SET-SCREW M_8 L-_20mm 1315/0305D | 1 | $10.29 | |||
| 24 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 25 | ADAPTOR 3/4-16 x 3/4-16 816/90036 | 1 | $29.93 | |||
| 26 | CHECK VALVE 25/206600 25/221080 | 1 | $68.65 | |||
| 27 | Link 331/30203 | 1 | $2.89 | |||
| 28 | CLEVIS PIN 913/00702 | 1 | $1.60 | |||
| 29 | CLIP 913/00703 | 1 | $3.83 | |||
| 32 | HOSE 1/4BSP 500mm 649/51771 | 1 | $30.35 | |||
Showing 1 to 25 of 25 parts
Related Assemblies
-
DIAG-E2-5-2-397809 E2-5-2 MOTOR, TRACK ASSEMBLY 1 SPEED
View Diagram -
DIAG-E3-2-1-397809 E3-2-1 VALVE, SECTION INLET P3
View Diagram -
DIAG-E2-4-1-397809 E2-4-1 MOTOR, SLEW COMPONENTS
View Diagram
