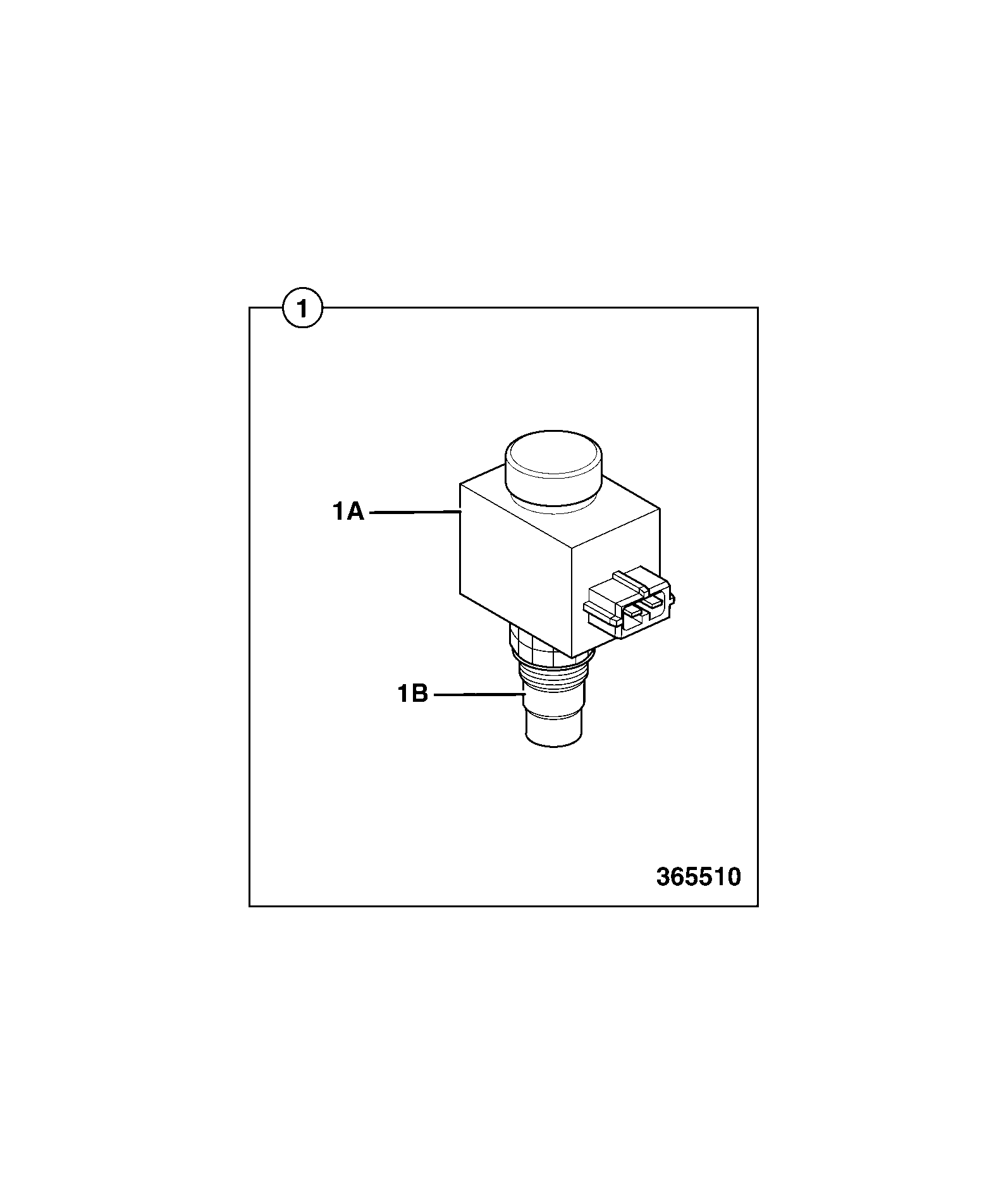

E3-14-1 VALVE, DIVERTER COMPONENTS SRS, 25/223387 Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	Kit Seal 25/222396	1	AVAILABLE TO ORDER	$94.19	Quantity
1	SOLENOID VALVE 25/223387 401/G6105	1	AVAILABLE TO ORDER	$343.47	Quantity
2	COIL 25/223556 717/20137	1	AVAILABLE TO ORDER	$50.77	Quantity
3	CARTRIDGE NORMALLY 25/983803	1	AVAILABLE TO ORDER	$611.10	Quantity

Showing 1 to 4 of 4 parts

DIAG-E3-13-1-402988 E3-13-1 MANIFOLD BLOCK COMPONENTS 333/S6095
View Diagram
DIAG-E3-15-1-402988 E3-15-1 VALVE COMPONENTS SOLENOID 25/223108
View Diagram
DIAG-E3-11-1-402988 E3-11-1 VALVE COMPONENTS ANTI-CAVITATION
View Diagram

Previous Assembly DIAG-E3-13-1-402988 E3-13-1 MANIFOLD BLOCK COMPONENTS 333/S6095 Next Assembly DIAG-E3-15-1-402988 E3-15-1 VALVE COMPONENTS SOLENOID 25/223108
