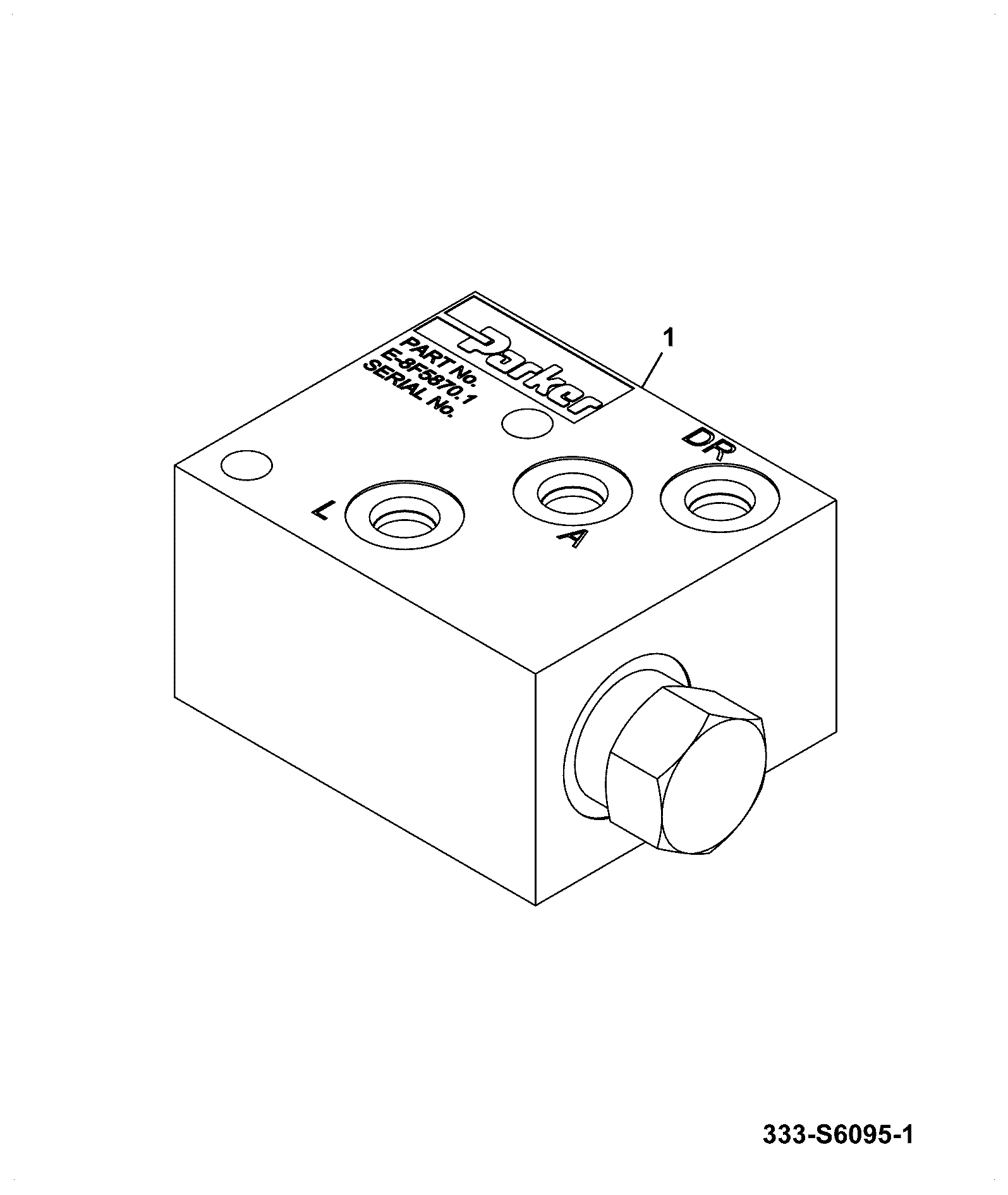

E3-11-1 VALVE COMPONENTS ANTI-CAVITATION Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action

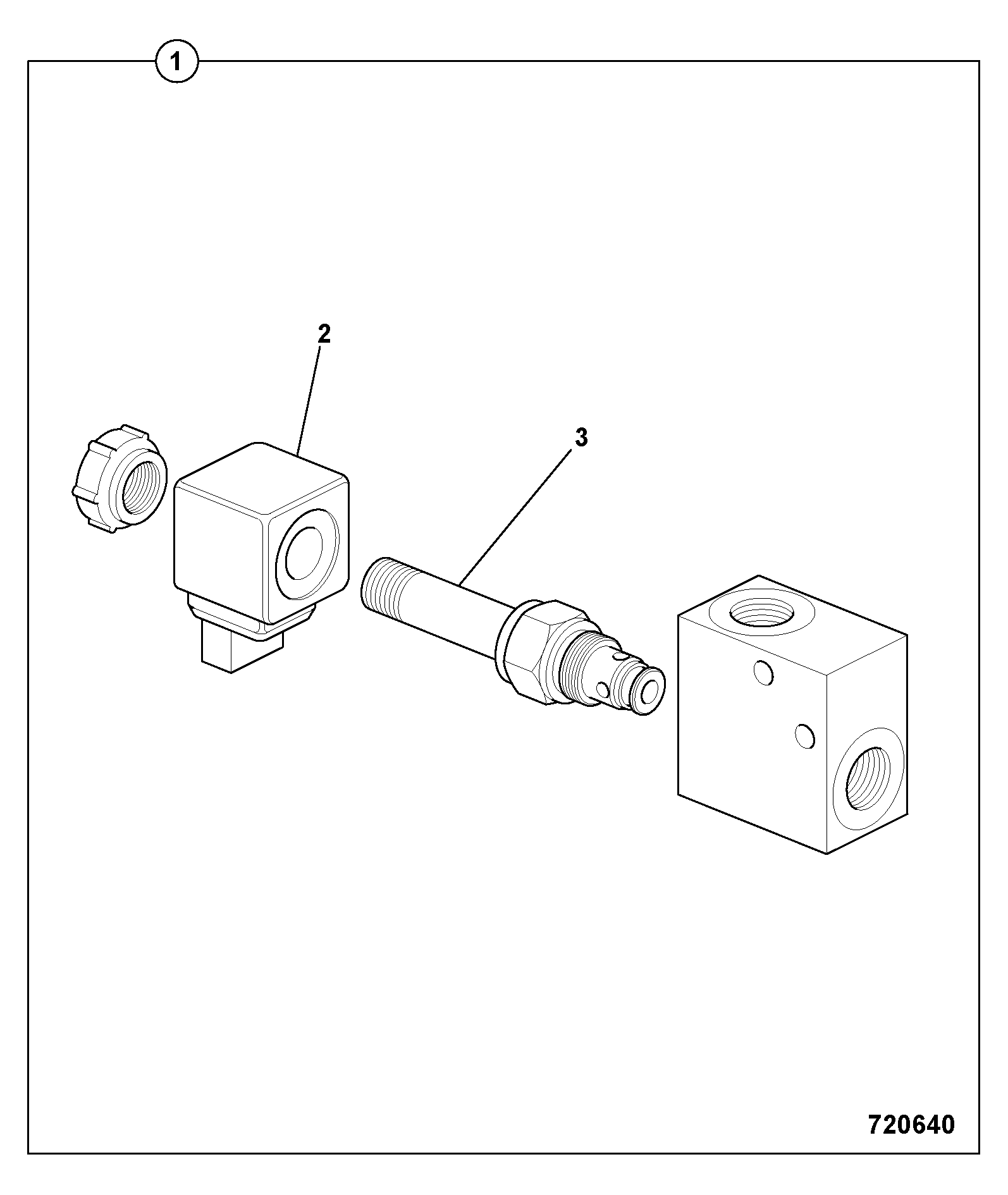

1	VALVE(BXP21839-01) 25/222082	1	AVAILABLE TO ORDER	$1,420.93	Quantity
2	Cartridge 25/223645	1	AVAILABLE TO ORDER	$294.07	Quantity
3	Kit-seal 25/223646	1	AVAILABLE TO ORDER	$95.85	Quantity

Showing 1 to 3 of 3 parts
