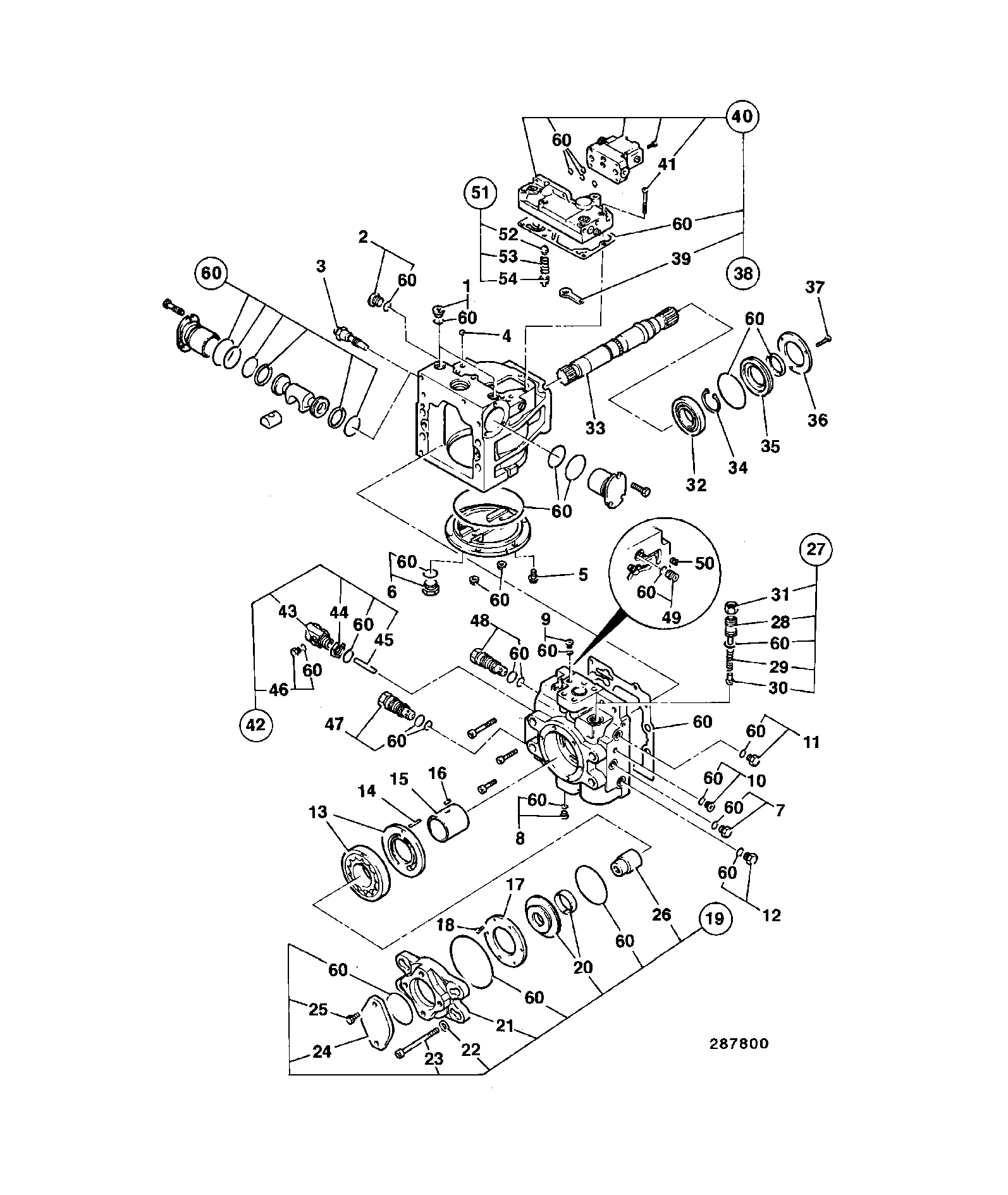

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| O RING SEAL 813/00453 | 1 | $7.89 | ||||
| 2 | BLOCK ADAPTOR 295/00132 | 1 | $165.91 | |||
| 3 | BOLT 7/16" UNC 1305/1822Z | 1 | $80.83 | |||
| 4 | WASHER.SPRING.7/16".HEAVY 823/00390 | 1 | $0.81 | |||
| 5 | WASHER BONDED 1" BSP 1406/0021 | 1 | $6.00 | |||
| 6 | O-RING - 32.51 x 3.81 PU9 828/00417 828/00021 | 1 | $25.21 | |||
| 7 | ADAPTOR G3/4A M/M 1604/0006 | 1 | $12.35 | |||
| 8 | ADAPTOR G5/8Ax7/8SAE 1620/0007 1620/2056 | 1 | $12.58 | |||
| 10 | TEE ADAPTOR 816/90259 | 1 | $16.01 | |||
| 11 | PRESSURE TEST POINT 1/4" 45/905000 45/MM7149 | 1 | $36.65 | |||
| 12 | HOSE ADAPTOR 816/60232 | 1 | $75.13 | |||
| 14 | Adapter 4-way 816/55076 | 1 | $52.95 | |||
| 16 | Screw 1305/1907Z | 1 | $5.48 | |||
| 17 | (W) (P) WASHER 1/2 MEDIUM PLAIN 1411/0005Z | 1 | $2.97 | |||
| 20 | ADAPTOR M/CING. 816/60249 | 1 | $49.59 | |||
| 21 | ADAPTER 816/17091 | 1 | $32.66 | |||
| 22 | ADAPTOR G3/4A-1-1/16UNF(M 1620/0010 1620/2059 | 1 | $14.30 | |||
| 23 | ADAPTOR 3/8BSPx3/4SAE 1620/2053 | 1 | $2.85 | |||
| 24 | ADAPTOR G1/4A-7/16UNF(M) 1620/2050 | 1 | $2.60 | |||
| 26 | PC ADAPTOR 816/00335 | 1 | $28.85 | |||
| 28 | WASHER BONDED 5/8"BSP 1406/0019 | 1 | $5.78 | |||
| 29 | ADAPTOR 816/55046 | 1 | $30.87 | |||
| 31 | Plate Plate drive 02/920238 | 1 | $701.27 | |||
| 32 | HUB 45/913000 | 1 | $770.41 | |||
| 33 | SCREW 5/16 X 1 1/4 UNC 1305/1608Z | 1 | $3.97 | |||
| 34 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 35 | WASHER M_8 SPRING 1425/0007Z | 1 | $1.22 | |||
| 38 | SET SCREW M12x35 1315/0509Z | 1 | $2.20 | |||
| 39 | WASHER 823/00557 | 1 | $11.32 | |||
| 41 | O RING 20/205672 | 1 | $13.54 | |||
| 42 | Adapter 816/17156 | 1 | $127.20 | |||
| 43 | O RING 5/8" BSP 2301/0011 | 1 | $0.09 | |||
| 44 | TEE PIECE 816/50089 | 1 | $35.95 | |||
| 45 | WASHER BONDED 1/4 BSP 1406/0011 | 1 | $1.52 | |||
| 46 | ADAPTOR G1/4A-9/16UNF (M) 1620/0002 1620/2051 | 1 | $5.41 | |||
| 47 | HOSE 3/8"BSP 632/50500 | 1 | $45.77 | |||
Showing 1 to 36 of 36 parts
Related Assemblies
-
DIAG-E2-3-6-397165 E2-3-6 MOTOR DRIVE TCR 2WD COMPONENTS POCLAIN SEAL KIT
View Diagram -
DIAG-E2-5-1-397165 E2-5-1 PUMP, HYDROSTATIC ASSEMBLY IT BUILD
View Diagram -
DIAG-E2-3-5-397165 E2-3-5 MOTOR DRIVE TCR 2WD COMPONENTS POCLAIN VALVING
View Diagram
