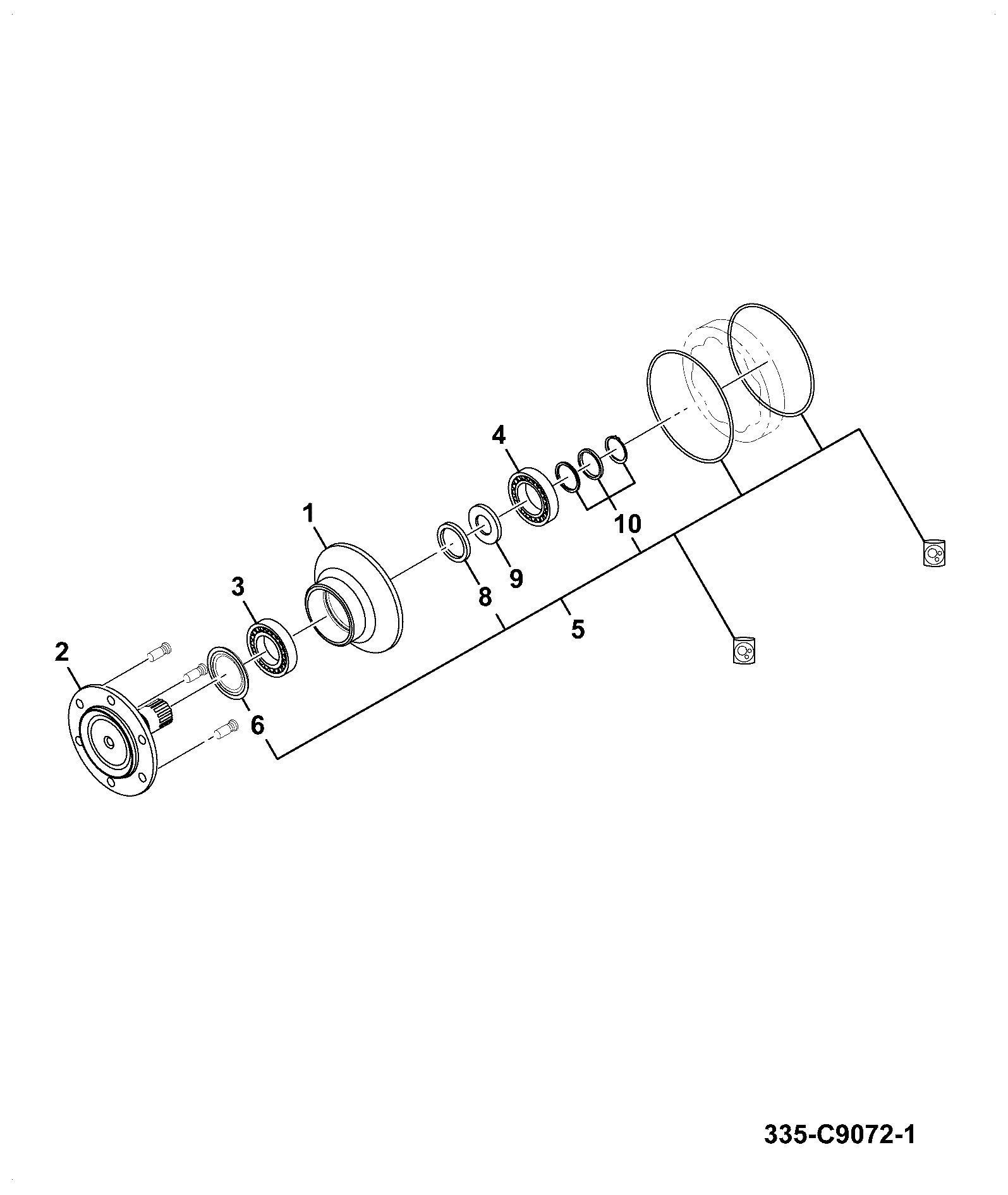

E2-3-5 MOTOR DRIVE TCR 2WD COMPONENTS POCLAIN VALVING Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	Valve 20/952399	1	AVAILABLE TO ORDER	$3,978.13	Quantity
2	Casing 20/952398	1	AVAILABLE TO ORDER	$3,747.12	Quantity
3	Bolt 20/952374	1	AVAILABLE TO ORDER	$12.14	Quantity
4	Valve 20/952366	1	AVAILABLE TO ORDER	$817.55	Quantity
5	Screw 20/952292	1	AVAILABLE TO ORDER	$0.86	Quantity
8	Seal 333/F1478	1	AVAILABLE TO ORDER	$386.16	Quantity
9	Seal 20/952390	1	AVAILABLE TO ORDER	$405.80	Quantity
10	Seal Kit 335/C9089	1	AVAILABLE TO ORDER	$118.45	Quantity

Showing 1 to 8 of 8 parts
