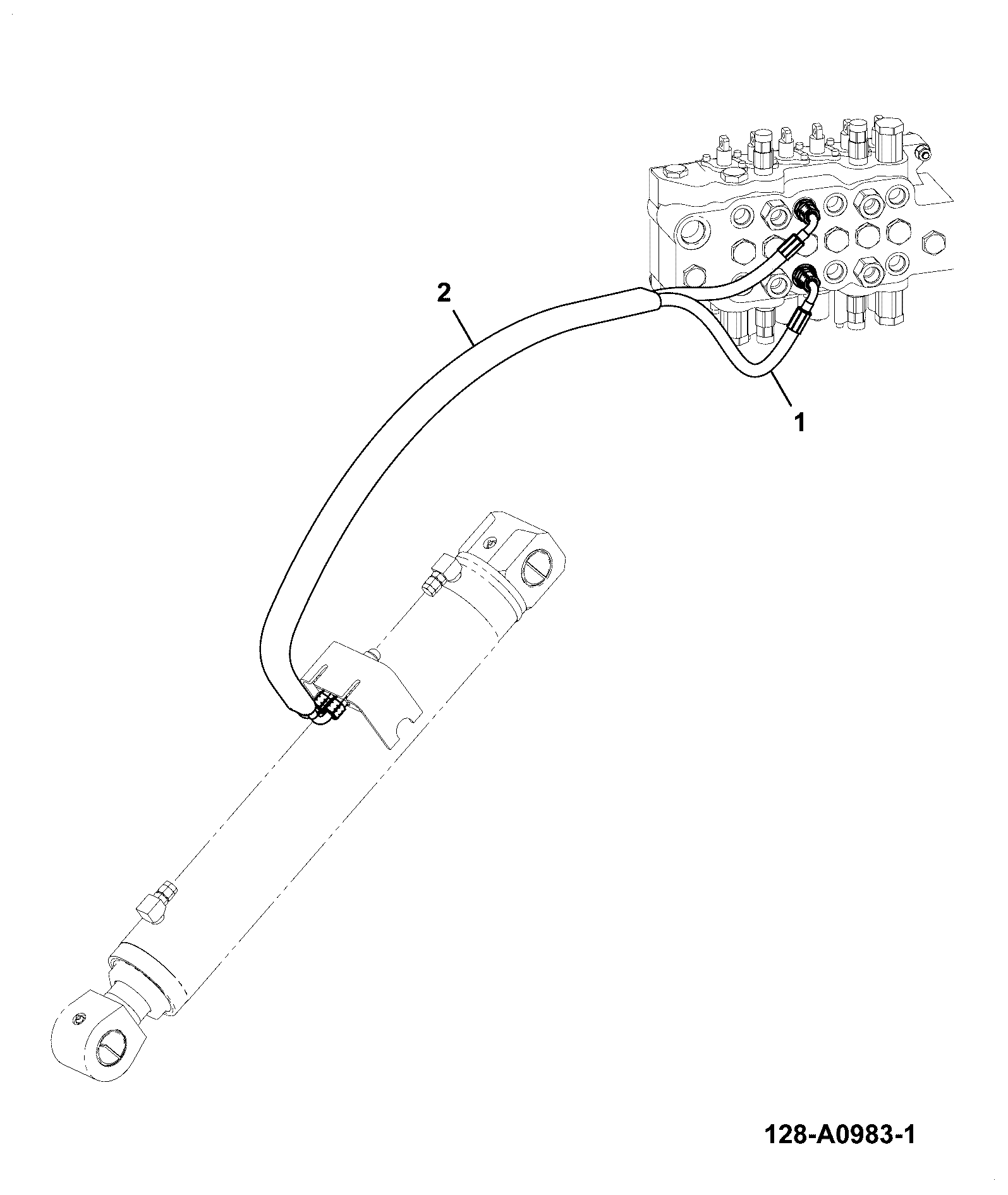

E190-50-1 OTHER HYDRAULIC CIRCUITS AUXILIARY VALVE Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	ADAPTOR G1/2A X 7/8 SAE (P564) 1620/2055	1	2 IN STOCK	$4.51	Quantity
2	HOSE -08 BSP HP 940 mm B 335/G7210	1	AVAILABLE TO ORDER	$330.77	Quantity
3	HOSE -08 BSP HP 1160 mm A 335/G7213	1	AVAILABLE TO ORDER	$336.97	Quantity

Showing 1 to 3 of 3 parts
