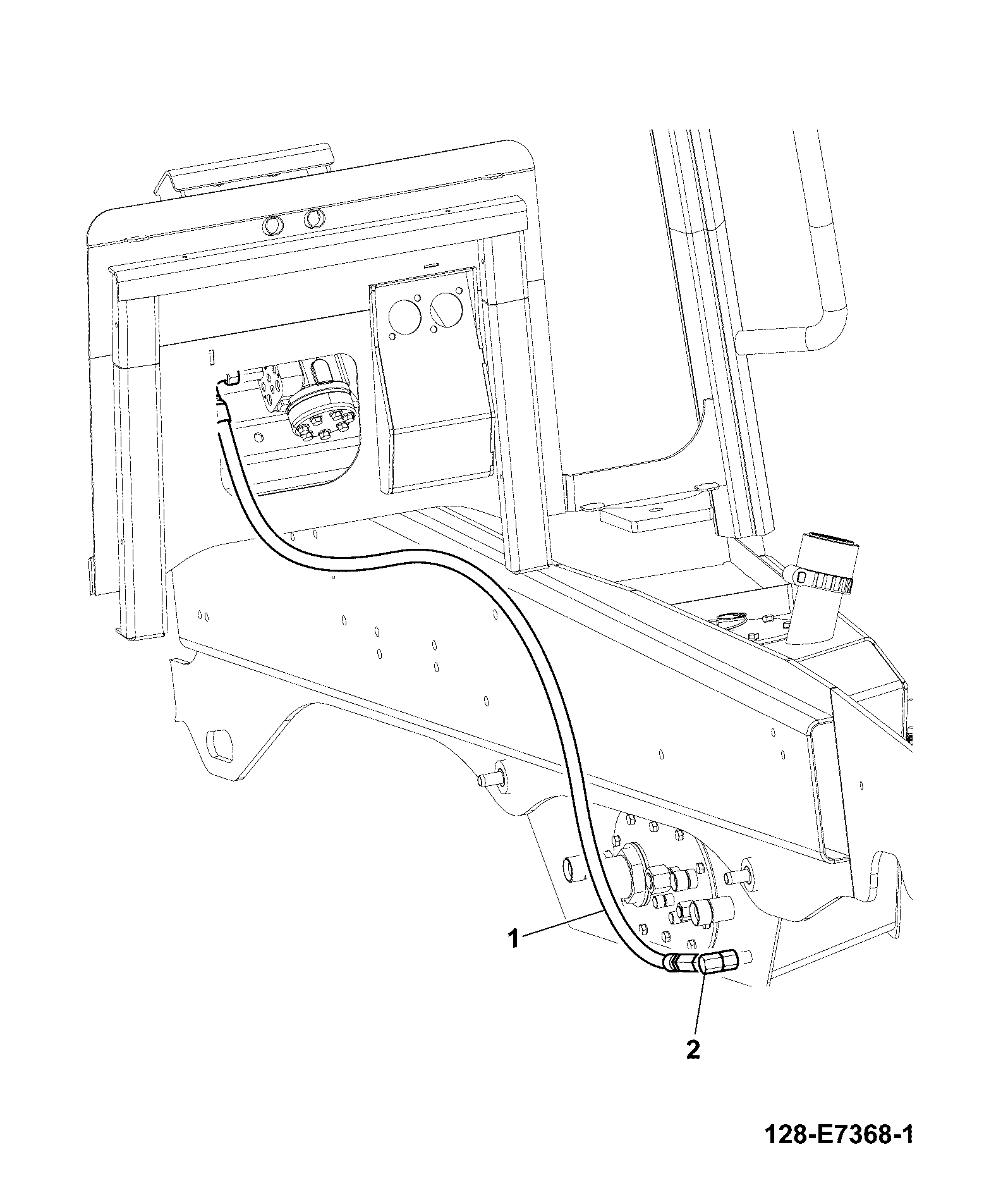

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | ADAPTOR G3/4A-1-1/16UNF(M 1620/0010 1620/2059 | 1 | $14.30 | |||
| 5 | 90 DEG ELBOW M/F 816/90077 | 1 | $20.24 | |||
| 6 | ADAPTOR G5/8A-1-1/16UNF(M) 1620/0008 1620/2057 | 1 | $25.23 | |||
| 9 | ADAPTOR 1-1/16SAExG5/8A 816/90476 | 1 | $71.09 | |||
| 11 | SWITCH WATER TEMPERATURE 701/80317 | 1 | $104.01 | |||
| 12 | ADPT HYD OIL TEMP SWITCH 816/25056 | 1 | $12.55 | |||
| 13 | ADAP ELBOW 3/4 816/90163 | 1 | $18.47 | |||
| 14 | SEALING WASHER 823/00264 | 1 | $1.92 | |||
| 16 | HOSE 3/4 BSP LP 720B 25AP/DA072 | 1 | $97.53 | |||
| 20 | HOSE 5/8 BSP LP 520B 24AP/GA052 | 1 | $132.55 | |||
| 21 | HOSE 5/8 BSP LP 740A 24AP/AA074 | 1 | $56.74 | |||
| 22 | ELBOW G1A-G5/8 816/90928 | 1 | $191.27 | |||
Showing 1 to 12 of 12 parts
Related Assemblies
-
DIAG-E130-90-1-394719 E130-90-1 HYDRAULIC CIRCUITS CHASSIS TRANSMISSION RETURN, HIGH FLOW CREEP SPEED, 3CX COMPACT
View Diagram -
DIAG-E130-100-1-394719 E130-100-1 HYDRAULIC CIRCUITS CHASSIS BRAKE LINES HIGH FLOW/CREEP SPEED, 3CX COMPACT
View Diagram -
DIAG-E130-85-1-394719 E130-85-1 HYDRAULIC CIRCUITS CHASSIS STEERING RETURN TO TANK, 3CX COMPACT
View Diagram
