Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | HOSE -04 BSP HP 2760mm A (P461) 334/G0483 | 1 | $105.52 | |||
| 2 | HOSE -04 BSP HP 780mm A (P461) 334/G0552 | 1 | $54.06 | |||
| 3 | HOSE -04 BSP HP 1580A (P461) 334/G0484 | 1 | $70.84 | |||
| 4 | HOSE -06 BSP LP 1000B (P461) 334/G3068 | 1 | $64.50 | |||
| 5 | HOSE -04 BSP LP 2150mm A (P461) 11AG/AA215 | 1 | $62.01 | |||
| 6 | HOSE CLAMP 12.7x2 way M8 fixing (P461) 333/E4412 | 1 | $4.38 | |||
| 7 | WASHER M_8 LARGE(KANBAN) 823/00322 | 1 | $4.06 | |||
| 9 | ELBOW 9/16*G1/4 (P461) 816/90676 | 1 | $16.52 | |||
| 10 | ADAPTOR 3/8BSPx3/4SAE 1620/2053 | 1 | $2.85 | |||
| 11 | ADAPTOR 1/4 BSP BULKHEAD 816/90005 | 1 | $4.45 | |||
| 12 | WASHER 1/2" SMALL PLAIN BRIGHT 1410/0005D | 1 | $15.84 | |||
| 13 | CLAMP HOSE 14mm (P461) 332/G1841 | 1 | $0.71 | |||
| 15 | CLAMP HOSE 12mm (P461) 334/V9856 | 1 | $1.02 | |||
| 20 | 'SCREW M6x16 BUTTON SOCKET(KANBAN) (BR3) 826/01413 826/01559 | 1 | $8.07 | |||
| 21 | CABLE TIE 100mm purple 826/11320 | 1 | $0.15 | |||
| 22 | CABLE TIE 100mm natural (R) 826/11294 | 1 | $0.34 | |||
Showing 1 to 16 of 16 parts
Related Assemblies
-

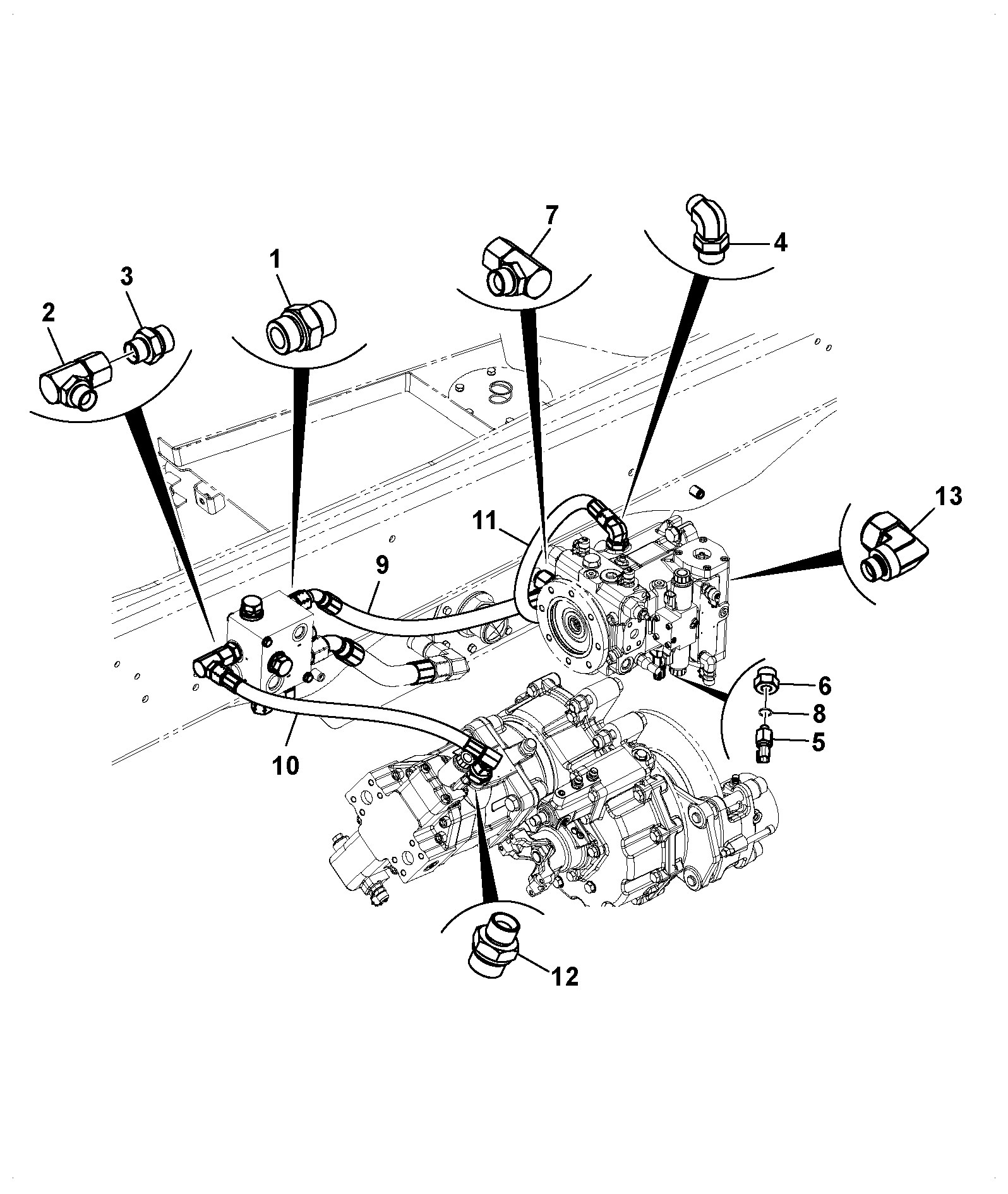

DIAG-E130-95-1-394719 E130-95-1 HYDRAULIC CIRCUITS CHASSIS TRANSMISSION RETURN, 3CX COMPACT
View Diagram -
DIAG-E130-110-1-394719 E130-110-1 HYDRAULIC CIRCUITS CHASSIS STABILISER CONTROL 3CX COMPACT
View Diagram -

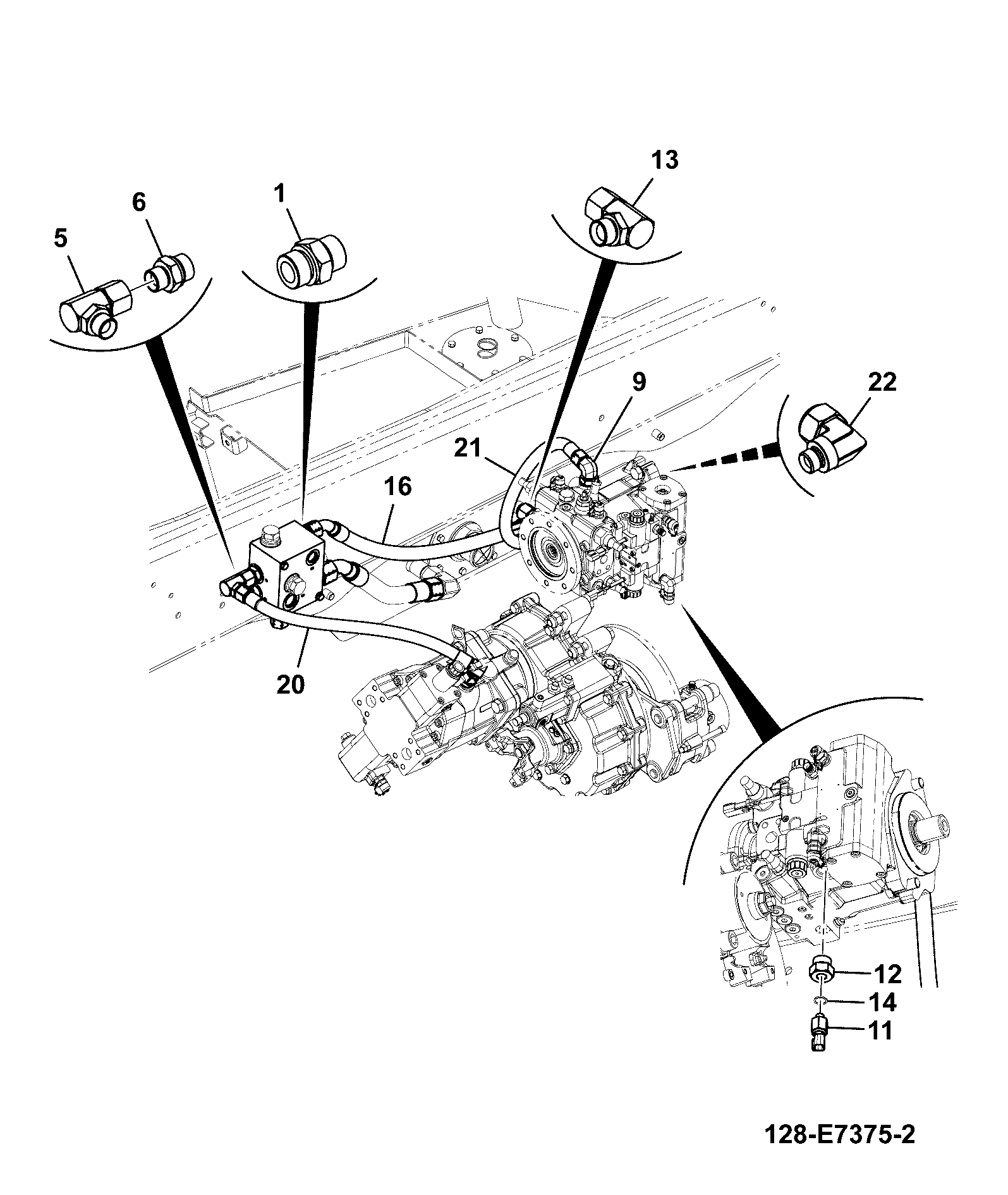

DIAG-E130-90-1-394719 E130-90-1 HYDRAULIC CIRCUITS CHASSIS TRANSMISSION RETURN, HIGH FLOW CREEP SPEED, 3CX COMPACT
View Diagram
