Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 20 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.00 | |||
| 40 | TWO HOSE CLAMP T4F (PAIR) 821/00234 | 1 | $13.26 | |||
| 50 | BOLT M8x40 1315/3310Z | 1 | $3.09 | |||
| 60 | COVER PLATE and bolt 821/00169 821/00169A | 1 | $1.92 | |||
| 70 | PVC SLEEVE 63x460mm 647/02601 | 1 | $16.90 | |||
| 80 | HOSE -06 BSP HP 680mm B 334/L7733 | 1 | $68.58 | |||
| 80 | Hose 3/8 BSP 660 Long 332/D9322 | 1 | $78.45 | |||
| 100 | HOSE 3/8BSP 1280mm 612/24100 | 1 | $119.69 | |||
| 110 | HOSE 3/8 BSP 2630MM HP 332/E7054 | 1 | $79.93 | |||
| 120 | HOSE 1/4BSP 2970mm 611/23800 | 1 | $108.50 | |||
| 130 | GA HOSE 3/8 BSP 332/G1667 | 1 | $93.94 | |||
| 140 | GA HOSE 3/8 BSP 332/G1671 | 1 | $121.38 | |||
| 150 | GA HOSE 3/8 BSP 332/G1676 | 1 | $108.44 | |||
| 160 | HOSE 3/8 BSP H.P 3300 LG. 612/80183 | 1 | $105.23 | |||
| 170 | HOSE 3/8 1660 (P392) 612/80281 | 1 | $120.91 | |||
Showing 1 to 15 of 15 parts
Related Assemblies
-

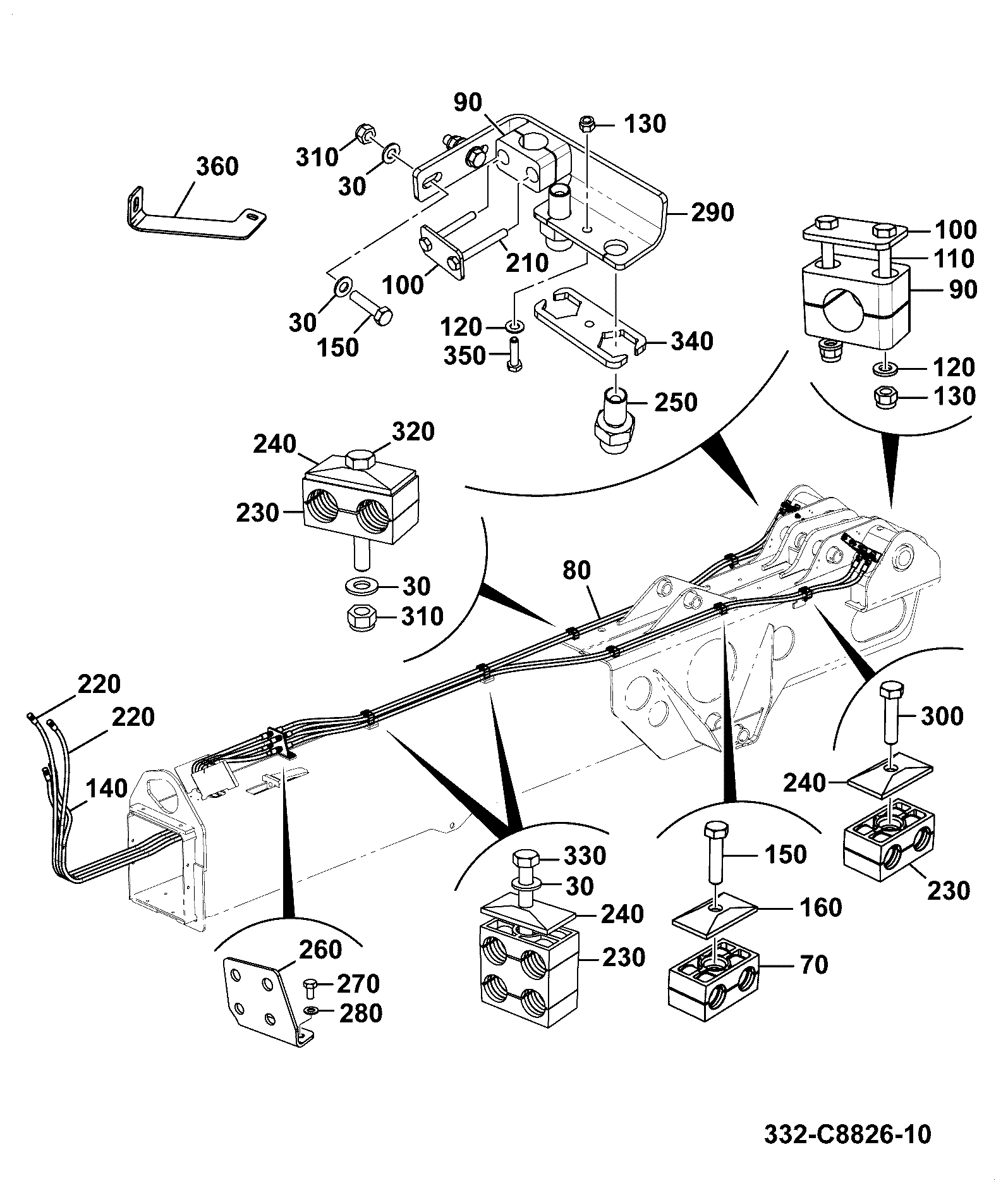

DIAG-E120-45-1-400273 E120-45-1 HYDRAULIC CIRCUITS LOADER END HOSE AND PIPEWORK PILOT AND CONTROL
View Diagram -

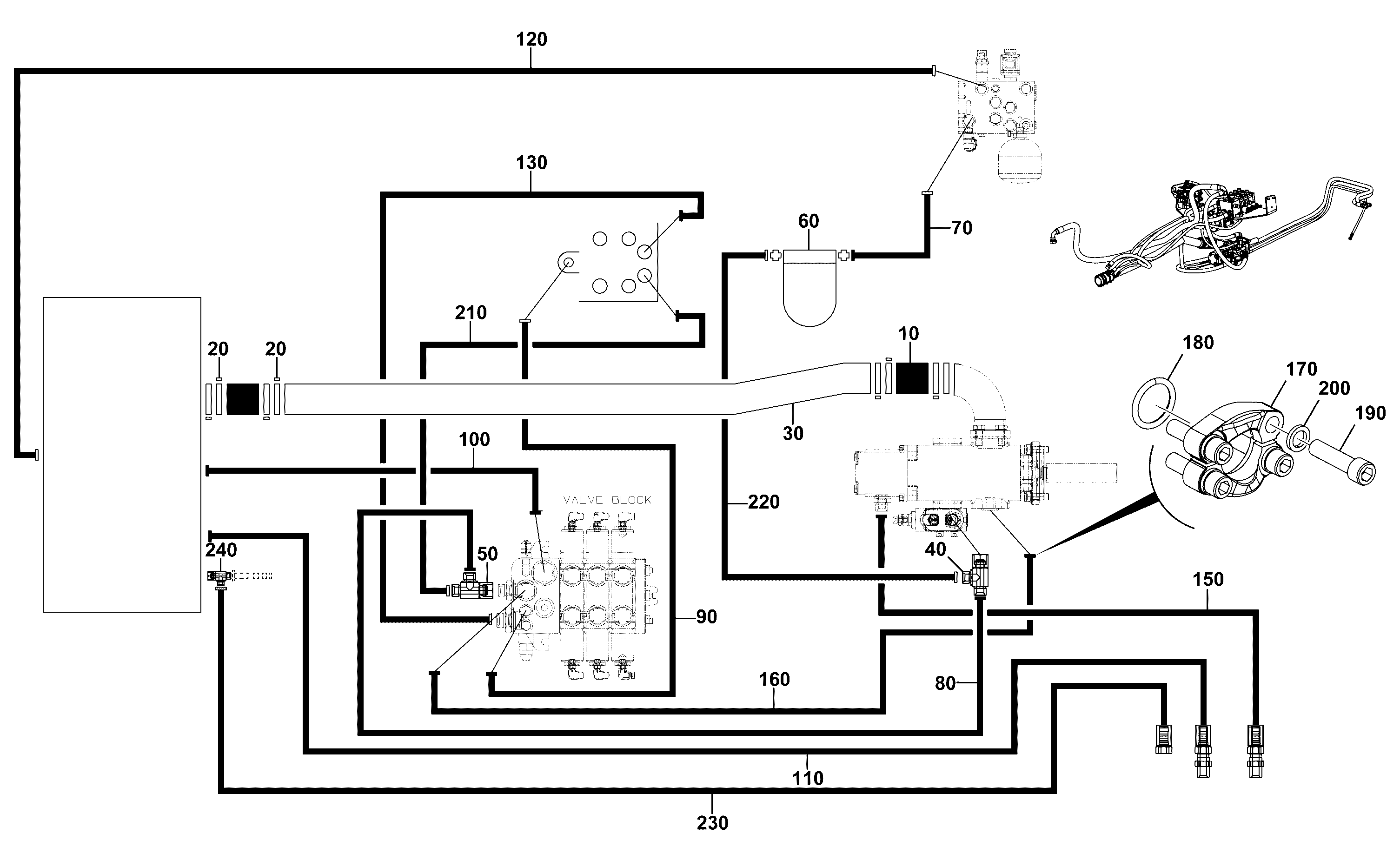

DIAG-E120-15-1-400273 E120-15-1 HYDRAULIC CIRCUITS LOADER END CIRCUIT NEUTRAL
View Diagram -
DIAG-E120-1-10-400273 E120-1-10 HYDRAULIC CIRCUITS LOADER END PIPEWORK UNDER BOOM
View Diagram
