Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | PIPE FEED 231/67900 | 1 | $135.80 | |||
| 2 | PIPE RETURN DIPPER 231/67800 | 1 | $381.93 | |||
| 3 | SET-SCREW M10 L-_25mm 1315/0407 1315/0407Z | 1 | $5.34 | |||
| 6 | COUPLING QR MALE F9 - 1/2BSP 45/910500 | 1 | $78.76 | |||
| 7 | WASHER BONDED 1" BSP 1406/0021 | 1 | $6.00 | |||
| 8 | WASHER 1406/0018 | 1 | $4.09 | |||
| 9 | HOSE 1/2BSP 680mm 613/07100 | 1 | $70.59 | |||
| 10 | HOSE 3/4 BSP 680mm 615/04400 | 1 | $109.42 | |||
| 11 | O RING BS014 NBR90 2401/0606 | 1 | $1.25 | |||
| 12 | O RING 2401/0608 | 1 | $1.39 | |||
| 13 | AUX FEED PIPE (BOOM) 335/00811 | 1 | $451.30 | |||
| 14 | W.A. AUX RETURN PIPE (BOO 335/00812 | 1 | $697.80 | |||
| 15 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 16 | SET SCREW M10x45 1315/0411Z | 1 | $1.46 | |||
| 17 | SPACER 10.5/20x10mm 123/05012 | 1 | $70.03 | |||
Showing 1 to 15 of 15 parts
Related Assemblies
-

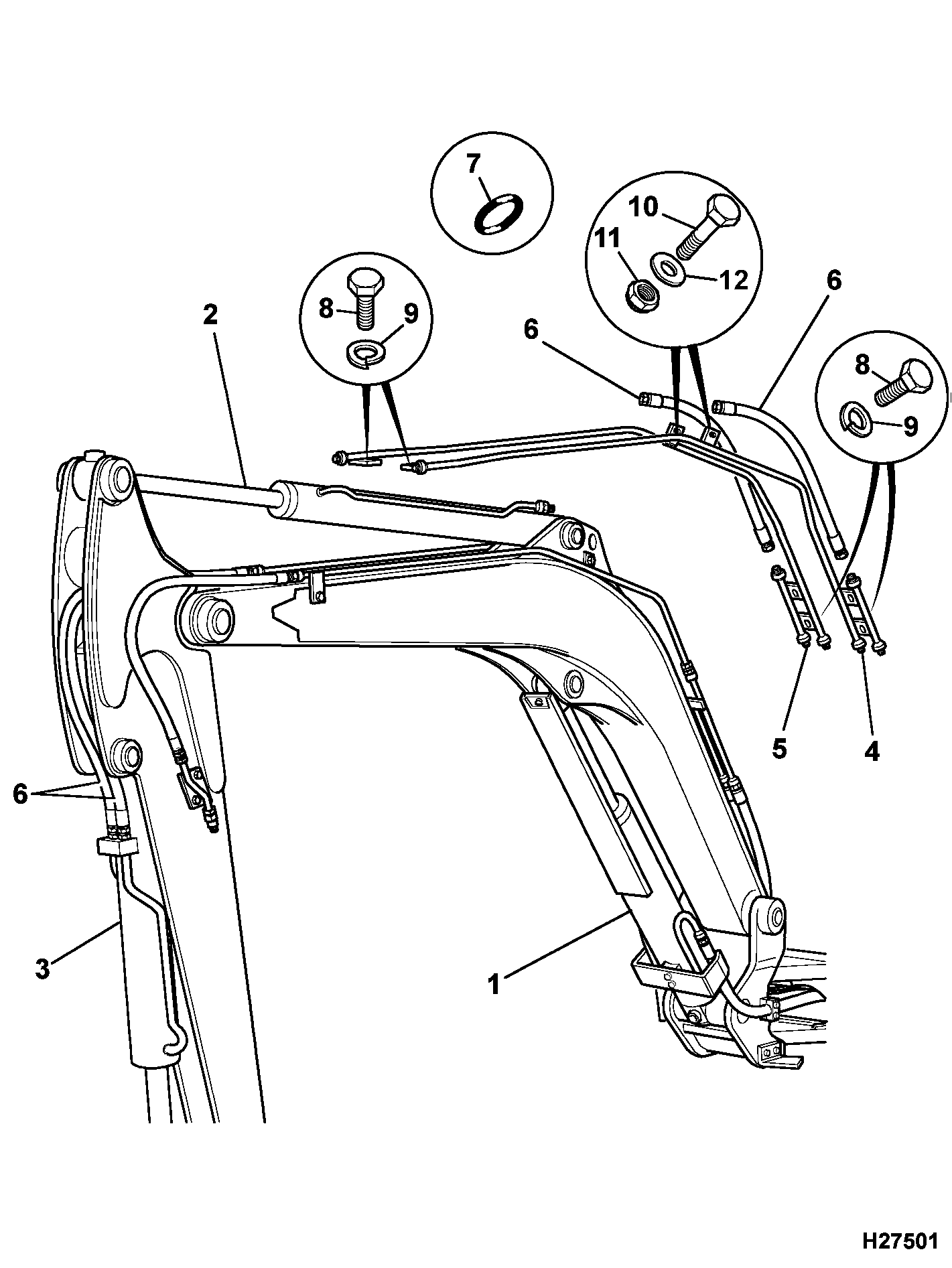

DIAG-E1-5-2-397915-12043029 E1-5-2 CIRCUIT, EXCAVATOR
View Diagram -

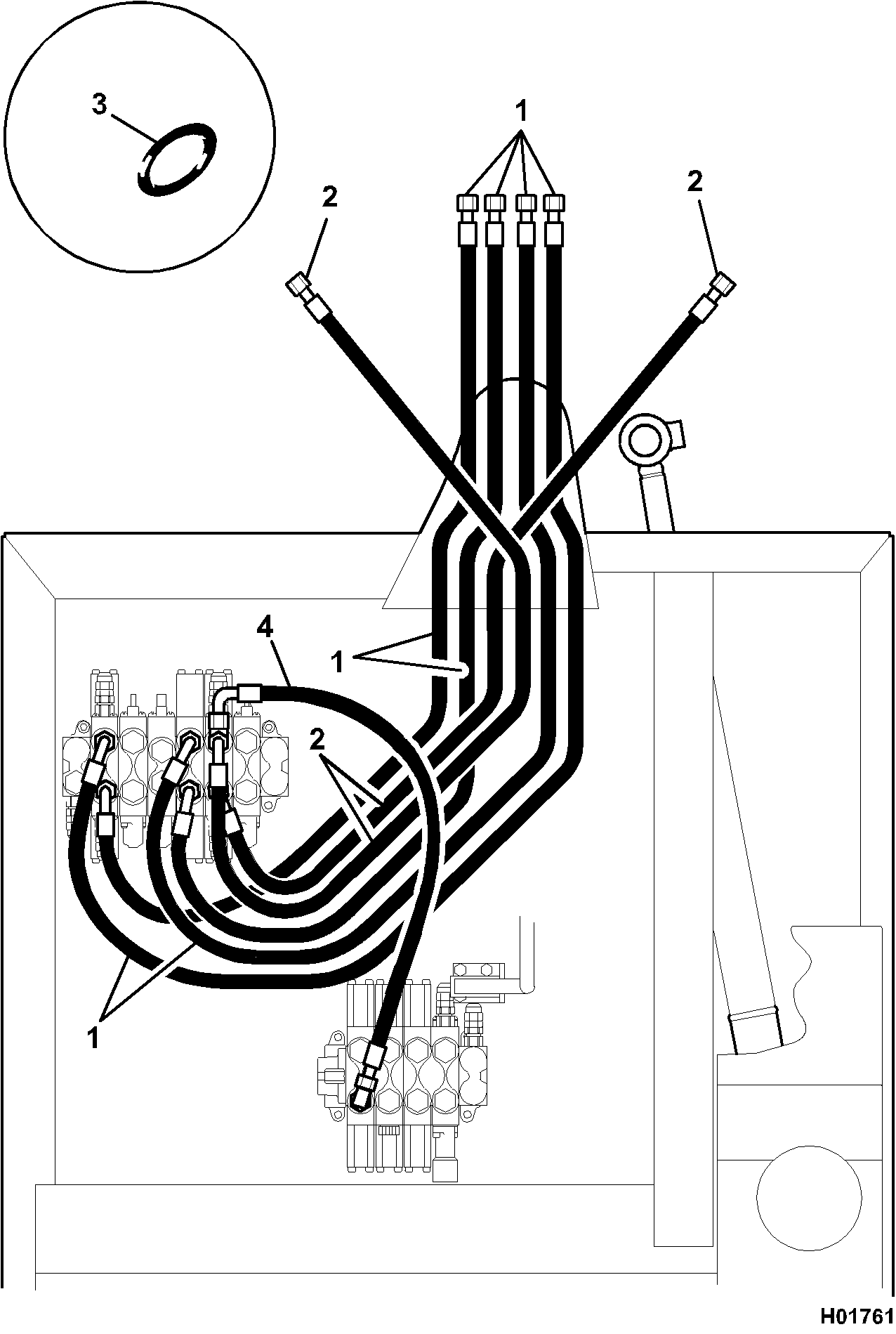

DIAG-E1-5-1-397915-12043027 E1-5-1 EXCAVATOR CIRCUIT, MAINFRAME
View Diagram -
DIAG-E1-8-3-397915-12043035 E1-8-3 AUXILIARY CIRCUIT, DOUBLE ACTING
View Diagram
