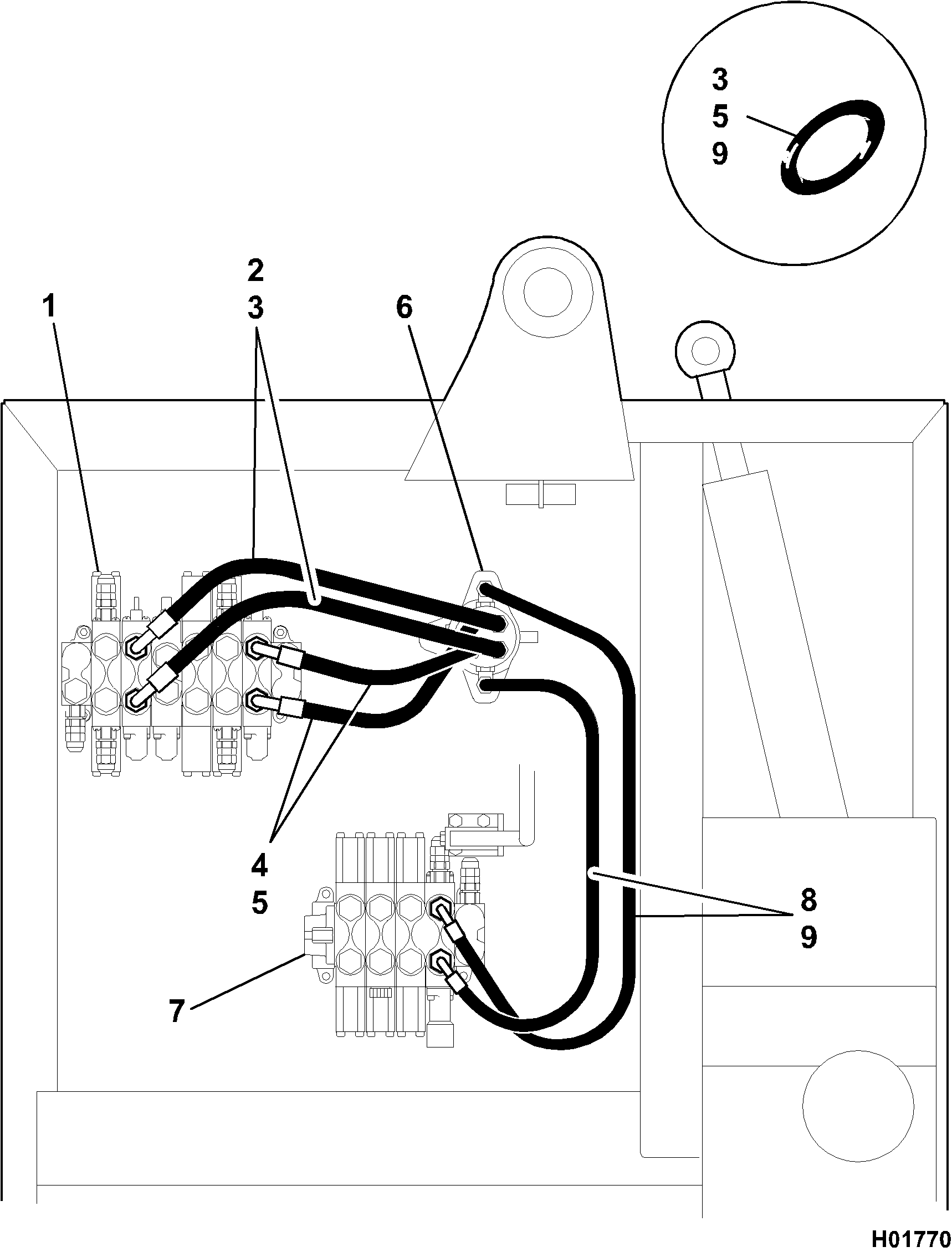

E1-5-1 EXCAVATOR CIRCUIT, MAINFRAME Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	HOSE 3/8 HP 742/23500	1	AVAILABLE TO ORDER	$67.60	Quantity
2	HOSE 742/22700	1	AVAILABLE TO ORDER	$143.98	Quantity
3	O RING 2401/0605	1	AVAILABLE TO ORDER	$0.65	Quantity
4	HOSE 3/8IN. H.P. 742/22400	1	AVAILABLE TO ORDER	$42.96	Quantity

Showing 1 to 4 of 4 parts

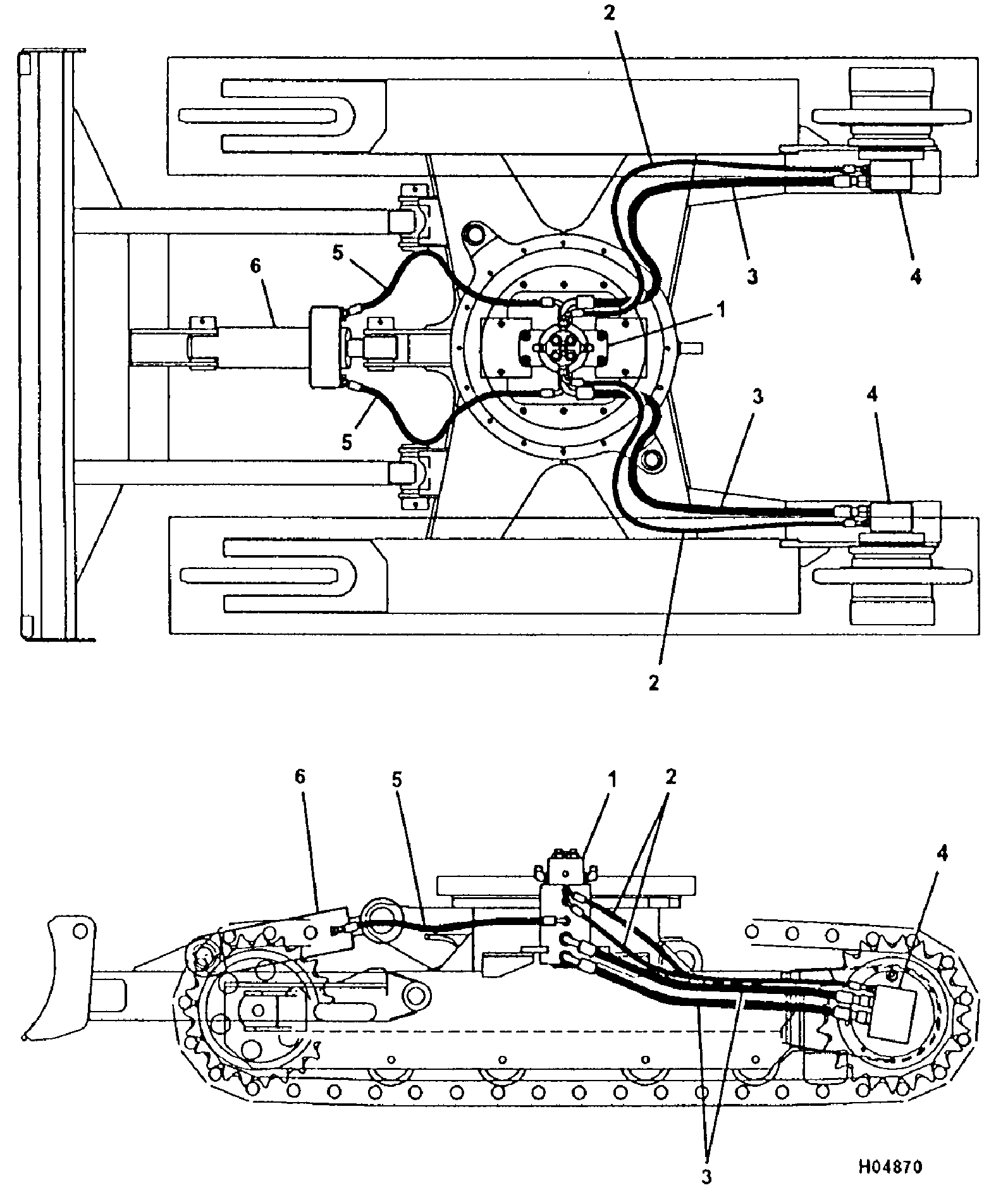

DIAG-E1-4-2-397915 E1-4-2 CIRCUIT, TRACK & DOZER - UNDE RCARRIAGE
View Diagram
DIAG-E1-5-2-397915-12043029 E1-5-2 CIRCUIT, EXCAVATOR
View Diagram
DIAG-E1-4-1-397915-12043024 E1-4-1 CIRCUIT, TRACK & DOZER - MAINFRAME
View Diagram
