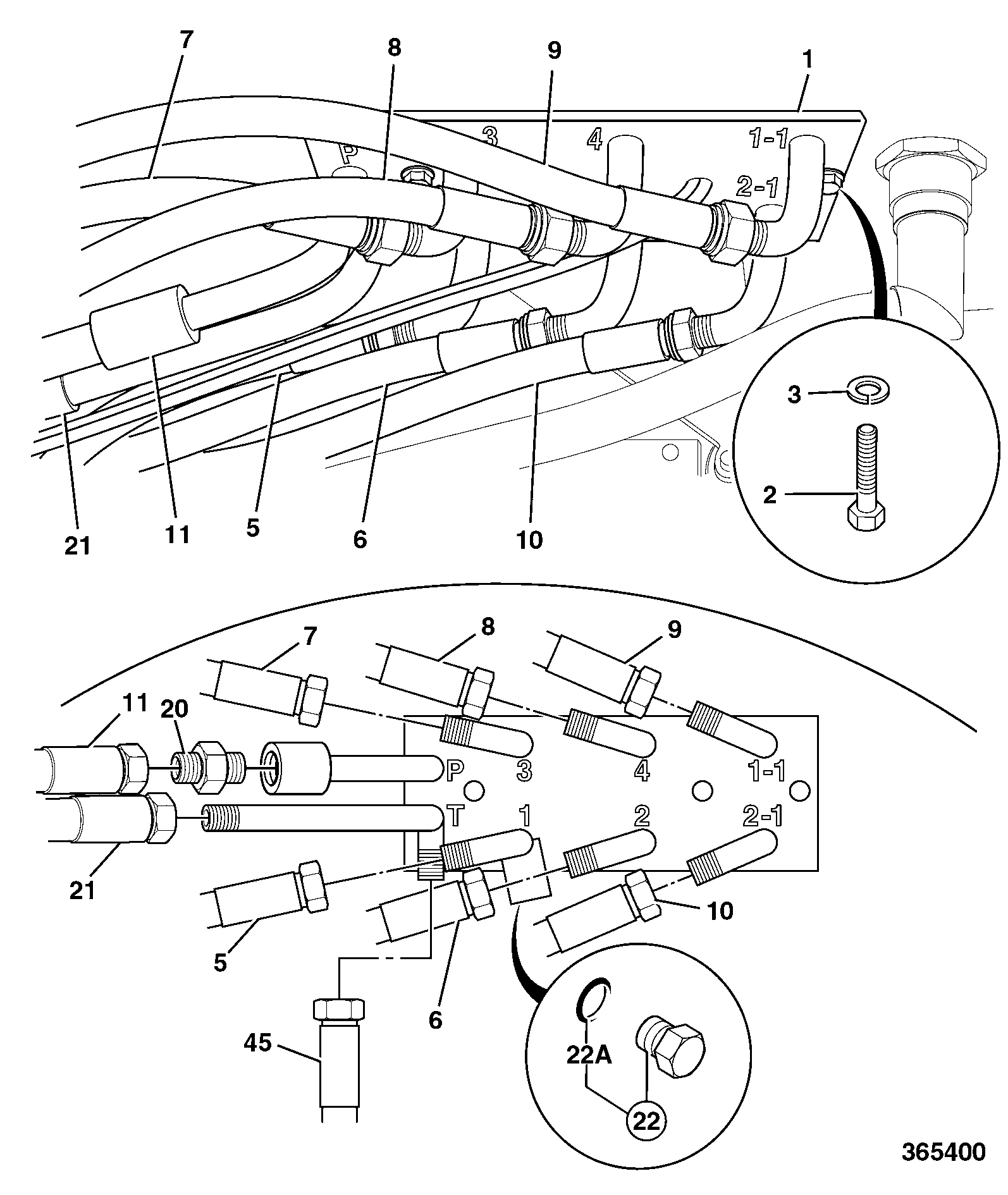

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 3 | SERVO HOSE 265/02145 | 1 | $80.03 | |||
| 4 | HOSE 265/02146 | 1 | $80.03 | |||
| 5 | SERVO HOSE 265/02147 | 1 | $80.12 | |||
| 6 | HOSE SERVO 265/02148 | 1 | $80.03 | |||
| 7 | HOSE 616/80052 | 1 | $172.97 | |||
| 7 | HOSE 616/80076 | 1 | $172.23 | |||
| 8 | HOSE 616/80051 | 1 | $303.97 | |||
| 9 | HOSE FEED 616/80056 | 1 | $263.19 | |||
| 10 | O-RING 828/00418 | 1 | $55.84 | |||
| 11 | HOSE 269/30223 | 1 | $76.10 | |||
| 12 | CAP SCREW M12 X 35LG 1391/3509D | 1 | $7.84 | |||
| 13 | SPRING-WASHER M12 1425/0009Z 1425/0009D | 1 | $0.85 | |||
| 14 | 826/11017NGE CLAMP 264/12501 | 1 | $54.30 | |||
| 18 | HOSE 629/21800 | 1 | $103.50 | |||
| 20 | HOSE 269/30224 | 1 | $54.73 | |||
| 34 | HOSE 616/80055 | 1 | $314.60 | |||
| 35 | HOSE 616/80068 | 1 | $135.48 | |||
| 35 | HOSE 616/80101 | 1 | $163.13 | |||
| 80 | ADAPTOR 816/00464 | 1 | $11.19 | |||
| A | IN-LINE C/VLV 25/905500 | 1 | $82.46 | |||
| B | HOSE 613/08100 | 1 | $105.93 | |||
| C | ADAPTOR 1604/0004 1604/0004A | 1 | $3.63 | |||
| D | WASHER 1406/0018 | 1 | $4.09 | |||
| E | 90 DEG ELBOW M/F 816/40016 816/90078 | 1 | $22.91 | |||
Showing 1 to 24 of 24 parts
Related Assemblies
-
DIAG-E1-23-1-404666 E1-23-1 HOSE AND PIPEWORK LOADER VALVE Z BAR
View Diagram -
DIAG-E1-26-1-404666 E1-26-1 HOSE AND PIPEWORK VALVE EMERGENCY STEER
View Diagram -
DIAG-E1-22-2-404666 E1-22-2 HOSE AND PIPEWORK SERVO CONTROLLER LOADER, UNDER CAB
View Diagram
