Scroll to zoom Click a part # to view details

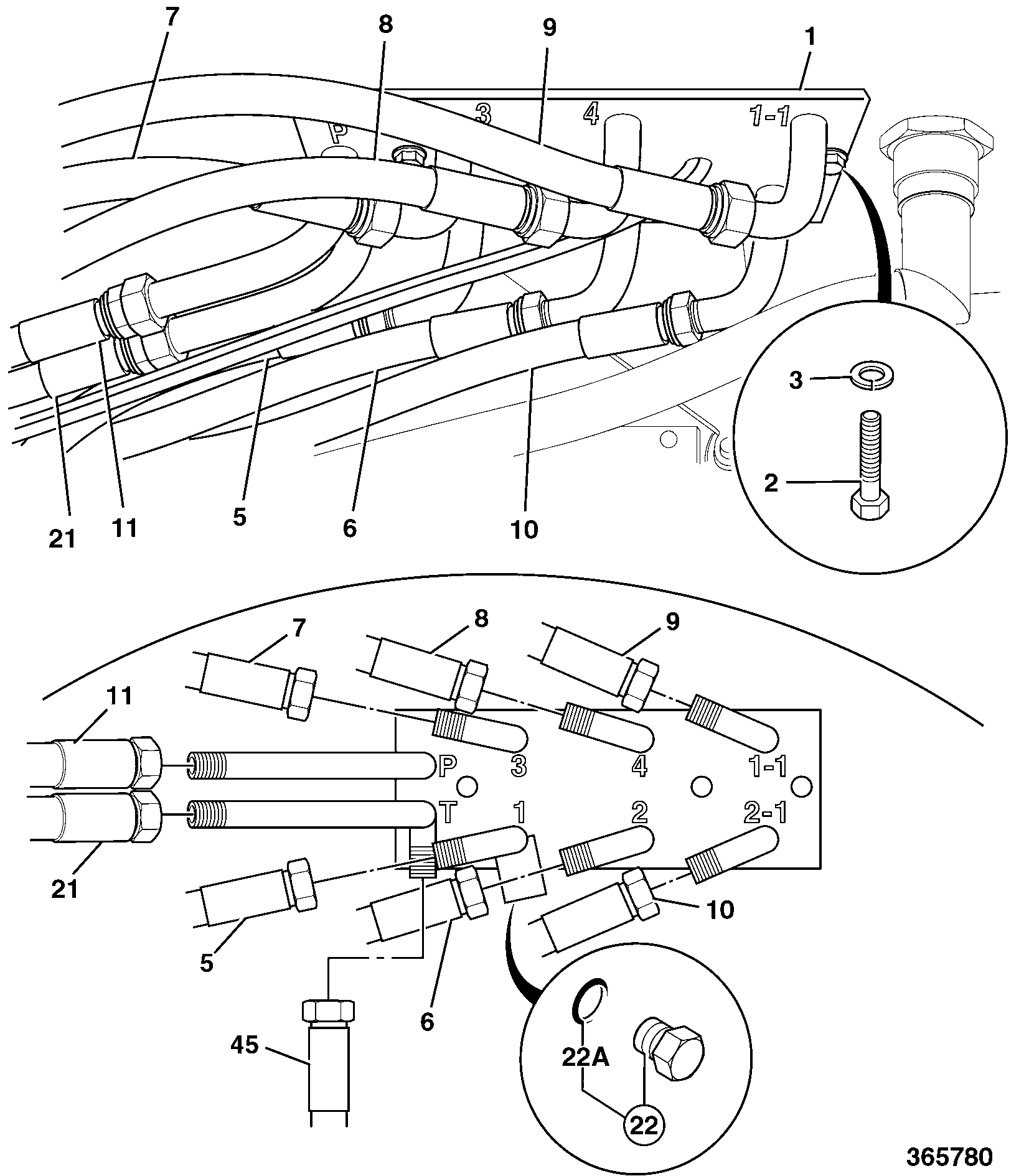

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | PIPE ASSEMBLY SERV 335/02933 | 1 | $1,849.65 | |||
| 2 | SET-SCREW M_8 L-20mm 1315/0305Z | 1 | $1.25 | |||
| 3 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 5 | SERVO HOSE 265/02145 | 1 | $80.03 | |||
| 6 | HOSE 265/02146 | 1 | $80.03 | |||
| 7 | SERVO HOSE 265/02147 | 1 | $80.12 | |||
| 8 | HOSE SERVO 265/02148 | 1 | $80.03 | |||
| 11 | HOSE 265/00548 | 1 | $80.77 | |||
| 20 | ADAPTOR C/W FILTER (P545) 25/205300 816/13133 | 1 | $22.67 | |||
| 21 | #4 BSP HP 1010mm B 611/24300 | 1 | $59.19 | |||
| 22 | PLUG - 7/16"UNF 1745/0001 816/90534 | 1 | $49.89 | |||
| 22A | O-RING 2401/0503 | 1 | $0.54 | |||
Showing 1 to 12 of 12 parts
