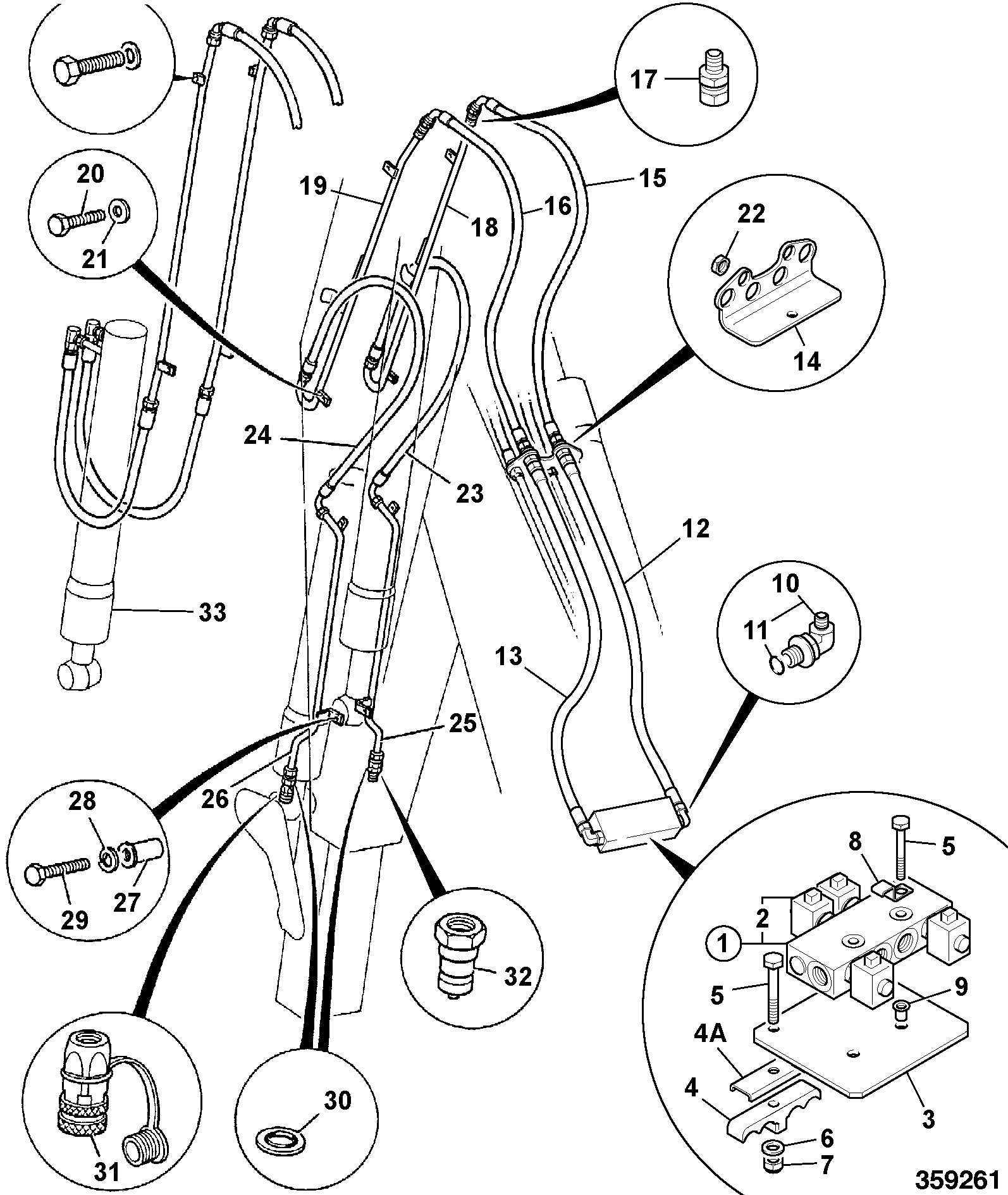

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| COUPLING COVER 835/10109 980/67301 | 1 | $2.99 | ||||
| FLIP TOP CAP 835/10082 | 1 | $5.79 | ||||
| QRC SAE MALE 3/4 UNF 45/920058 | 1 | $166.08 | ||||
| WASHER 7/8" INT LOCK 1418/0018Z | 1 | $5.34 | ||||
| 1 | HOSE 1/2BSP 2880mm 629/27400 | 1 | $781.26 | |||
| 3 | PIPE CLUSTER 125/99100 | 1 | $1,650.36 | |||
| 4 | BOLT M10x60 1315/3414Z | 1 | $1.95 | |||
| 7 | HOSE 35 1/2 STR/STR 613/05500 | 1 | $132.94 | |||
| 9 | BACK NUT 1/2"BSP 1356/0204Z | 1 | $6.20 | |||
| 10 | HOSE 613/08000 | 1 | $251.77 | |||
| 12 | WA L/H FEED PIPE jaw 335/09317 | 1 | $331.93 | |||
| 14 | SET-SCREW M10 L-_30mm 1315/0408Z | 1 | $1.22 | |||
| 15 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 15 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 16 | RIVET NUT M10 826/01249 | 1 | $8.20 | |||
| 17 | (P) ADAPTOR G1/2A X G1/2 1612/0004 1612/2052 | 1 | $76.32 | |||
| 18 | O-RING 2401/0506 | 1 | $1.46 | |||
| 19 | COUPLING QR FEMALE HQ10 - 8SAE 45/920049 | 1 | $160.53 | |||
Showing 1 to 18 of 18 parts
