Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| WASHER 7/8" INT LOCK 1418/0018Z | 1 | $5.34 | ||||
| 1 | HOSE 1/2BSP 3500mm 629/80030 | 1 | $451.10 | |||
| 3 | ADAPTOR PLATE x6 331/31794 | 1 | $105.46 | |||
| 4 | BOLT M10x60 1315/3414Z | 1 | $1.95 | |||
| 5 | PLAIN WASHER 823/00377 | 1 | $7.10 | |||
| 6 | RIVET NUT M10 826/01249 | 1 | $8.20 | |||
| 7 | HOSE 1/2BSP 1085mm 613/80061 | 1 | $152.89 | |||
| 9 | BACK NUT 1/2"BSP 1356/0204Z | 1 | $6.20 | |||
| 10 | HOSE 1/2BSP 1950mm 613/36018 | 1 | $153.11 | |||
| 11 | HOSE 1/2BSP 1585mm 613/36006 | 1 | $141.66 | |||
| 12 | HOSE CLAMP 123/05836 | 1 | $13.75 | |||
| 13 | CLAMP PLATE 331/14805 | 1 | $56.16 | |||
| 14 | CAP SCREW M10x40 1391/3410Z | 1 | $2.38 | |||
Showing 1 to 13 of 13 parts
Related Assemblies
-
DIAG-E1-11-10-395128 E1-11-10 CIRCUIT, AUXILIARY EXTENTION RAM EXTRADIG DIPPER 1400, V.FLOW PUMP
View Diagram -

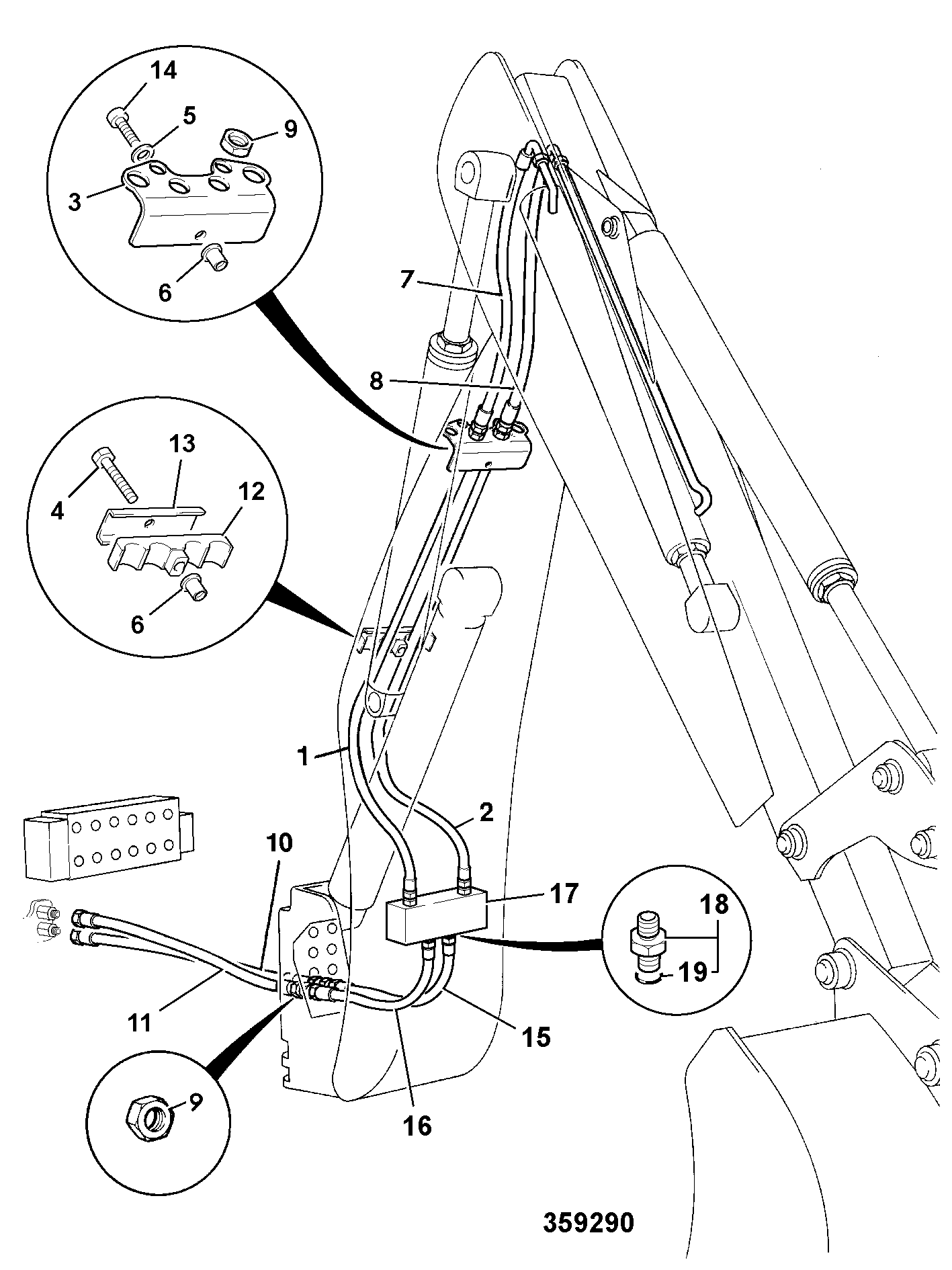

DIAG-E1-11-4-395128-11261613 E1-11-4 CIRCUIT, AUXILIARY EXTENTION RAM EXTRADIG DIPPER & JAW 1400, GEAR PUMP
View Diagram -

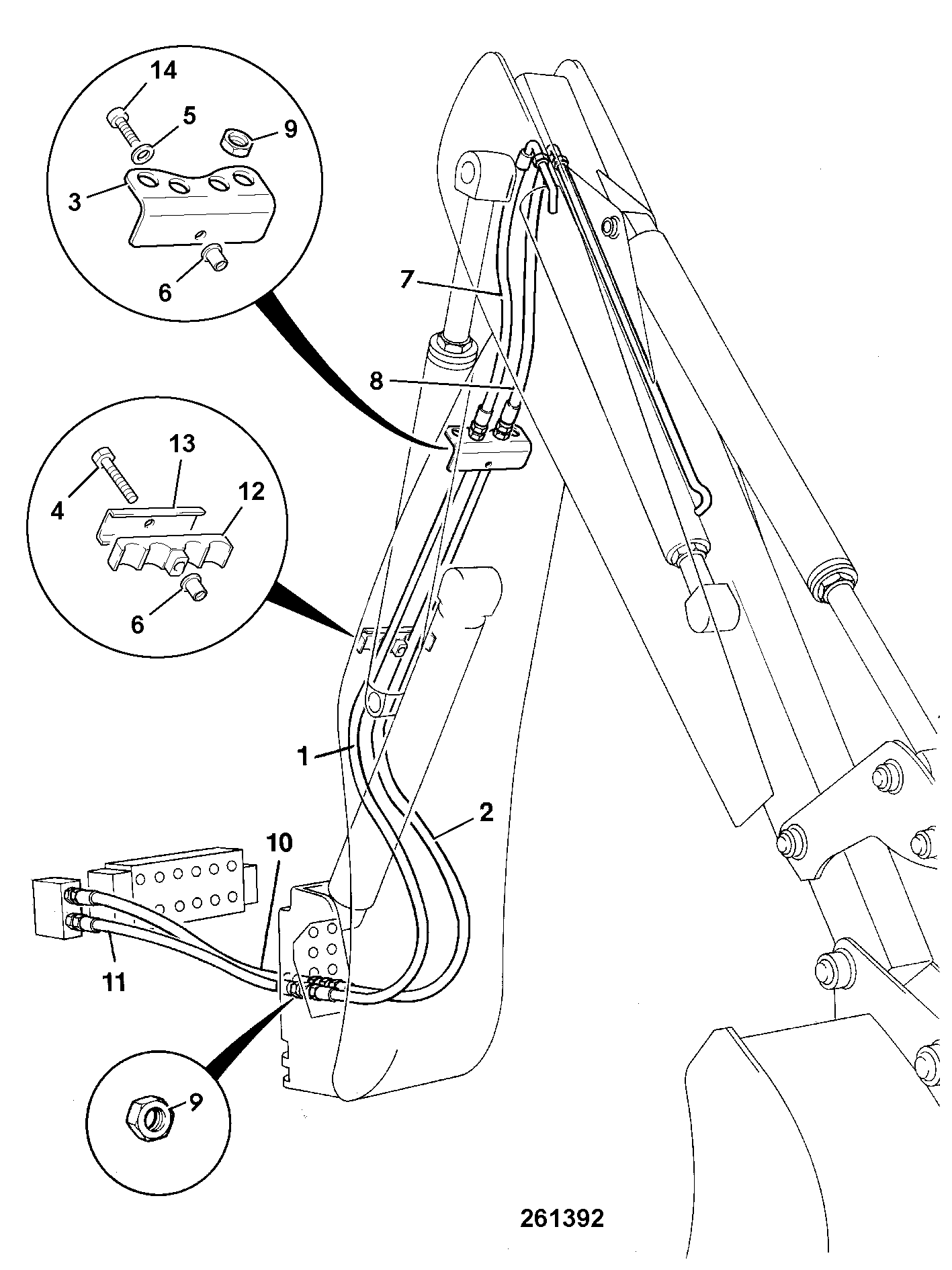

DIAG-E1-11-3-395128-11261611 E1-11-3 CIRCUIT, AUXILIARY EXTENTION RAM EXTRADIG DIPPER 15'6" GEAR PUMP
View Diagram
