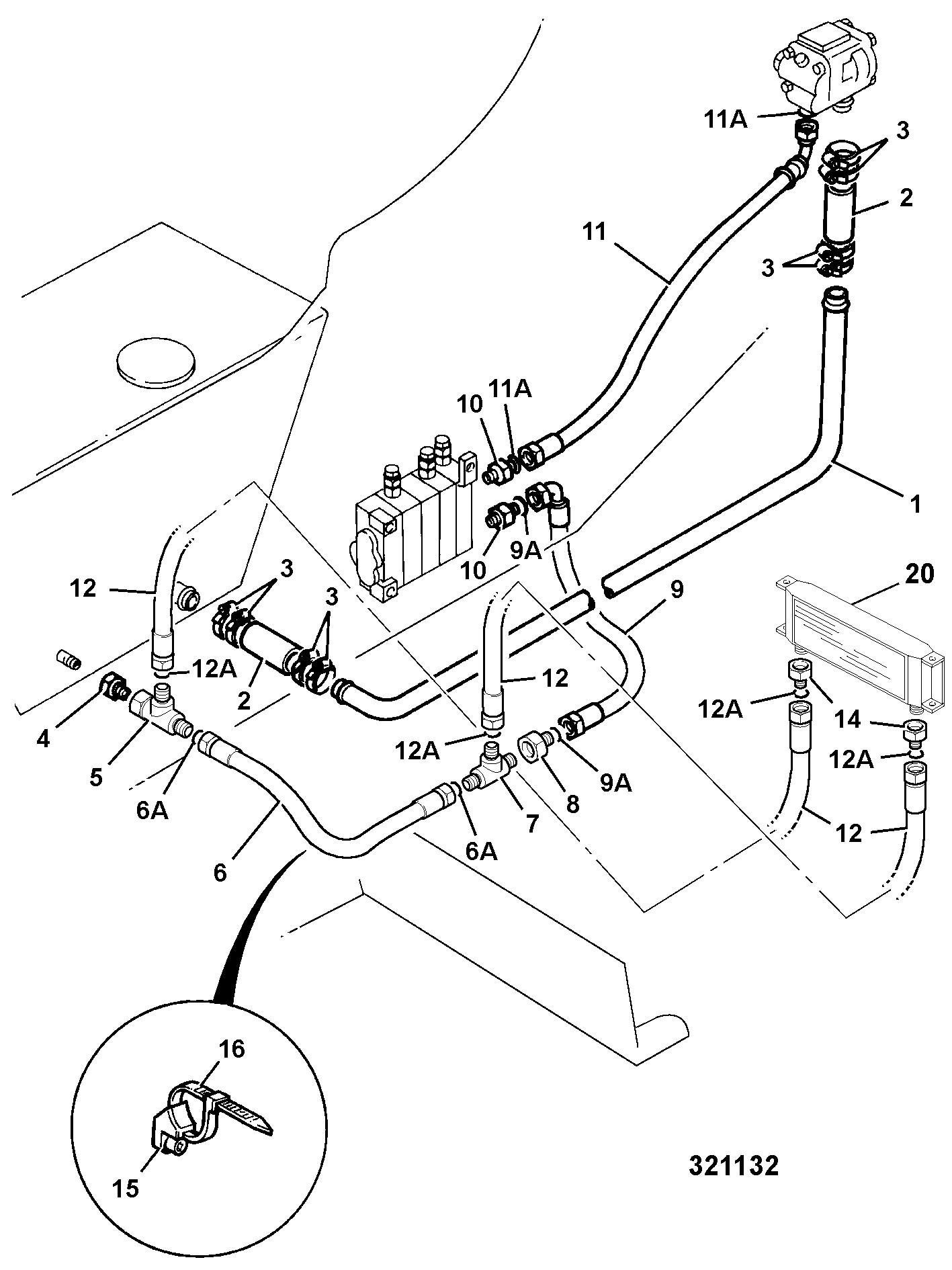

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | PIPE MAIN SUCTION 830/10493 | 1 | $477.41 | |||
| 2 | HOSE - 127MM 648/01006 | 1 | $28.26 | |||
| 3 | CLIP - WORMDRIVE 40/60mm 2201/0011 2201/0010 | 1 | $1.86 | |||
| 4 | ADAPTOR 5/8 BSP M X 1 BSP F 816/20056 | 1 | $23.47 | |||
| 6 | HOSE 5/8BSP 670mm 614/03400 | 1 | $159.47 | |||
| 7 | PIPE ACCUMULATOR W 830/10490 | 1 | $130.29 | |||
| 9 | HOSE 635/30100 | 1 | $128.87 | |||
| 10 | ADAPTOR G3/4A-1-1/16UNF(M 1620/0010 1620/2059 | 1 | $14.30 | |||
| 11 | HOSE 615/31200 | 1 | $145.95 | |||
| 11A | O RING 3/4 BSP 2301/0015 | 1 | $0.37 | |||
| 12 | Hose 5/8BSP 2260mm 614/24900 | 1 | $153.11 | |||
| 12 | HOSE 99-1/2 5/8 STR/STR 614/01800 | 1 | $273.84 | |||
| 12A | O RING 5/8" BSP 2301/0011 | 1 | $0.09 | |||
| 13 | HOSE 5/8BSP 875mm 614/23300 | 1 | $180.15 | |||
| 13 | HOSE HP 5/8 BSP 13 614/80025 | 1 | $106.61 | |||
| 14 | ADAPTOR 816/20063 | 1 | $20.85 | |||
| 15 | TIE MOUNT.CRADLE MNT. 826/01274 | 1 | $0.92 | |||
| 16 | CABLE TIE-225MM 826/01092 | 1 | $4.11 | |||
| 17 | ACCUMULATOR 0.5 LI 903/15300 | 1 | $163.75 | |||
| 18 | SET SCREW M8x30(KANBAN) 1315/0308Z | 1 | $2.17 | |||
| 19 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 20 | WASHER M_8 SPRING 1425/0007Z | 1 | $1.22 | |||
| 21 | WASHER 1406/0018 | 1 | $4.09 | |||
| 25 | COOLER 30/906500 | 1 | $687.14 | |||
| 25 | COOLER HYDRAULIC O 30/925533 | 1 | $208.31 | |||
| 26 | ADAPTOR 816/40008 | 1 | $18.79 | |||
Showing 1 to 26 of 26 parts
