Scroll to zoom Click a part # to view details

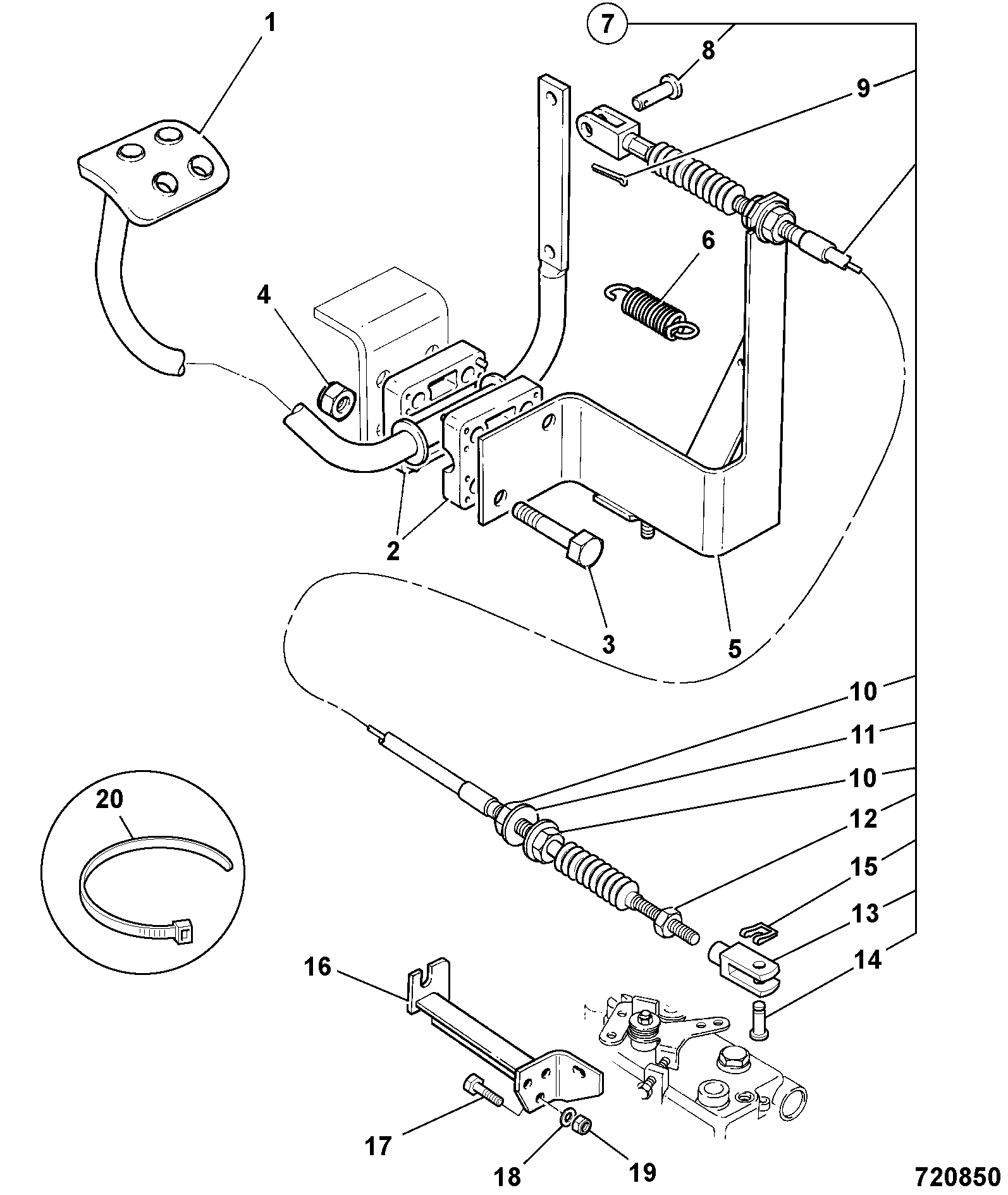

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | WA ACCELERATOR PEDAL (P83) 335/05196 | 1 | $137.24 | |||
| 2 | BEARING-ACCELERA 160/00486 | 1 | $16.64 | |||
| 3 | (W) (P) BOLT M8x50 1315/3312Z | 1 | $3.83 | |||
| 4 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 5 | BRACKET 161/00028 | 1 | $29.20 | |||
| 6 | SPRING.TENSION 814/00359 | 1 | $19.43 | |||
| 7 | ACCELERATOR CABLE - P41 910/60183 | 1 | $184.91 | |||
| 8 | PIN CLEVIS 2101/0002 | 1 | $34.68 | |||
| 9 | PIN SPLIT 1/16 2103/0305 | 1 | $0.44 | |||
| 10 | THIN HEX NUT 1/4 UNF 1340/0002Z | 1 | $6.38 | |||
| 11 | (W) WASHER 5/16 MED PLAIN 1411/0002Z | 1 | $0.26 | |||
| 12 | NUT M_8 STD PLAIN 1370/0201Z 1370/0201D | 1 | $1.07 | |||
| 13 | SPRING throttle overload 814/10179 | 1 | $16.93 | |||
| 14 | ENGINE MOUNT throttle 331/40859 | 1 | $67.16 | |||
| 15 | SET-SCREW M_6 L-_20mm(KANBAN) 1315/0205Z | 1 | $0.65 | |||
| 16 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 17 | NUT M6 STD SELF LOCK(KANBAN) 1370/0103Z | 1 | $1.43 | |||
| 18 | CABLE TIE - BLACK 200mm 826/01144 | 1 | $0.20 | |||
Showing 1 to 18 of 18 parts
Related Assemblies
-
DIAG-D2-2-2-400823 D2-2-2 CONTROL, THROTTLE TIER 2 EMISSIONS RG BUILD
View Diagram -
DIAG-E1-1-2-400823 E1-1-2 CIRCUIT,NEUTRAL
View Diagram -
DIAG-E1-1-3-400823 E1-1-3 CIRCUIT,NEUTRAL WITH ACCUMULATOR
View Diagram
