Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | (P) ABI PURCHASED STEERING WHEEL 128/11789 332/G8146 | 1 | $106.61 | |||
| 2 | (W) (P) HUB CAP-STEERING WHEEL 331/27487 | 1 | $5.93 | |||
| 3 | (W) (P) SPINNER KNOB 331/27411 | 1 | $33.14 | |||
| 4 | NUT 176R016VZ | 1 | $6.97 | |||
| 5 | WASHER M16 PLAIN 1420/0011Z | 1 | $3.08 | |||
| 10 | CIRCLIP 821/10211 | 1 | $17.21 | |||
| 11 | Cam cancel indicat 331/35706 | 1 | $60.45 | |||
| 12 | Screw taptite 331/35707 | 1 | $5.06 | |||
| 13 | PIN SHOULDER 913/10187 | 1 | $104.57 | |||
| 14 | CLIP RETAINING 823/10411 | 1 | $14.76 | |||
| 15 | BRACKET fixed steer colum 331/35170 | 1 | $113.51 | |||
| 16 | (W) (P) SHOULDER BOLT.M10x46 826/10963 | 1 | $91.31 | |||
| 17 | NUT M10 PLAIN 1370/0301Z 1370/0301D | 1 | $3.01 | |||
| 18 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $0.37 | |||
| 19 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.00 | |||
| 20 | NUT M8 STD SELF LOCK 1371/0203Z | 1 | $5.10 | |||
| 21 | (W) (P) (P) STEER COLUMN SHROUD 331/26480 | 1 | $66.92 | |||
| 22 | SCREW 826/01521 | 1 | $4.53 | |||
| 23 | WASHER NYLON M6 823/00516 | 1 | $5.17 |
Showing 1 to 19 of 19 parts
Related Assemblies
-

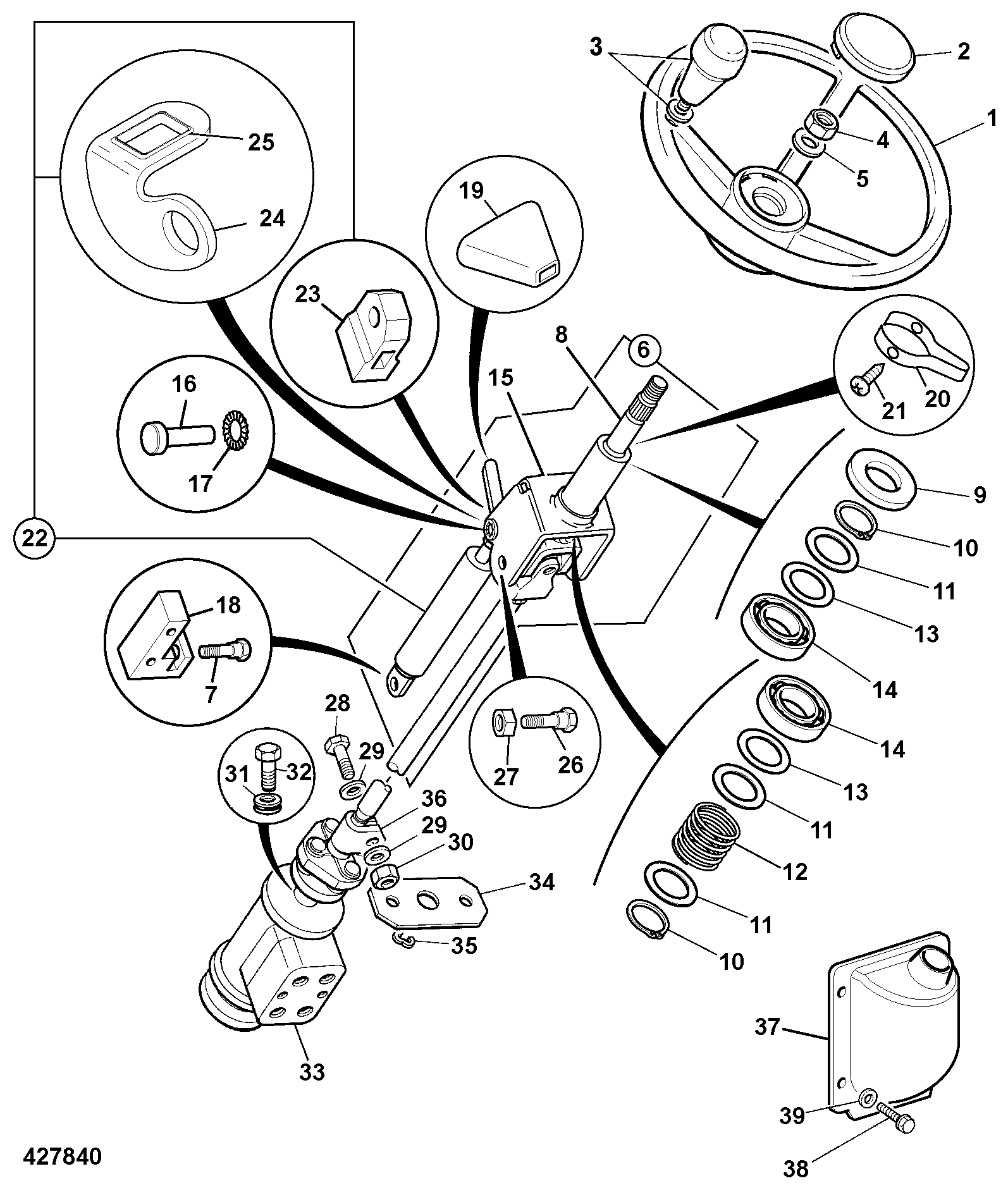

DIAG-D3-1-2-395121-11241291 D3-1-2 STEERING COLUMN ADJUSTABLE
View Diagram -

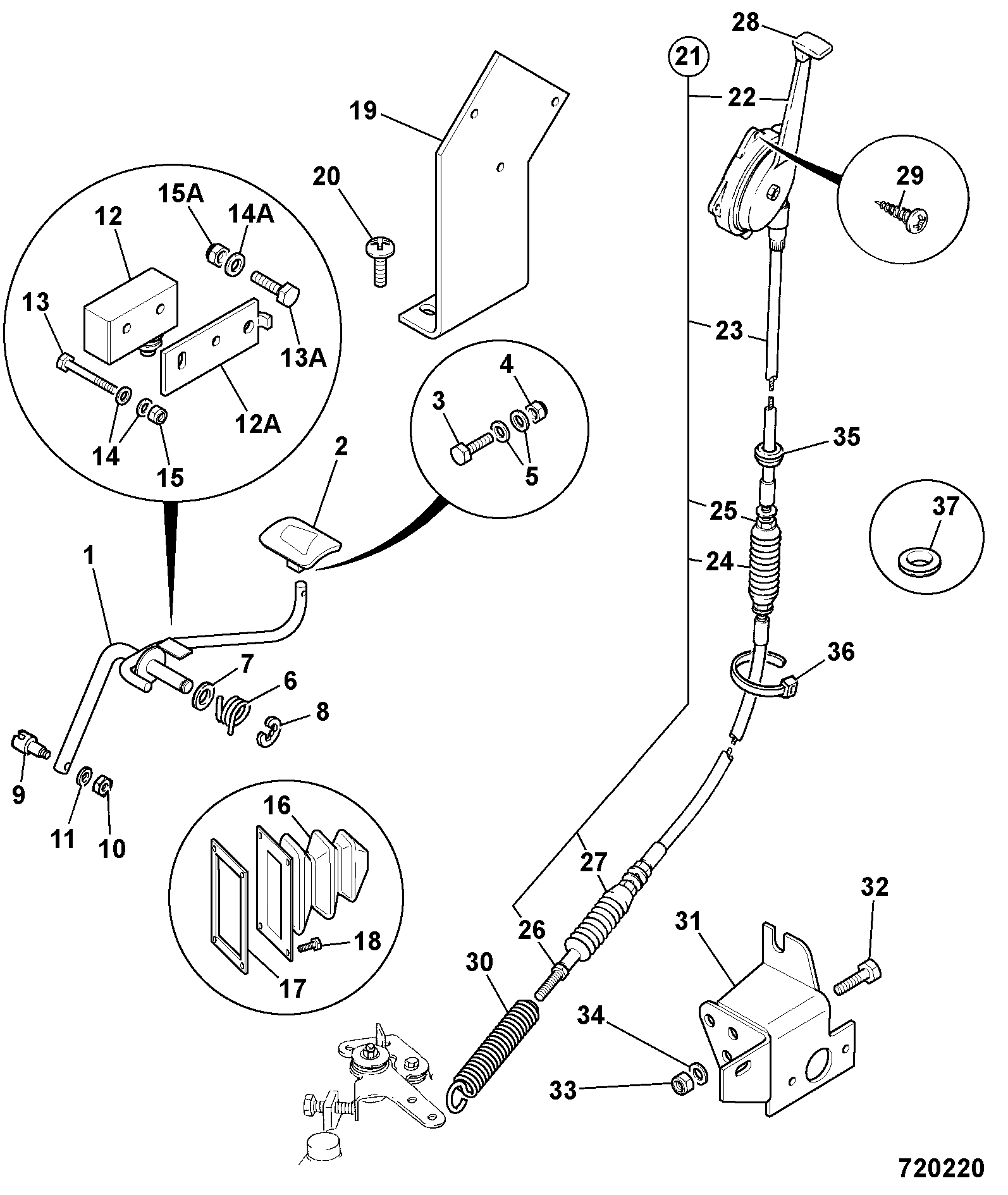

DIAG-D2-2-4-395121-11241284 D2-2-4 CONTROLS THROTTLE & STOP POWERSHIFT/AUTOSHIFT, TIER 2 RG BUILD
View Diagram -

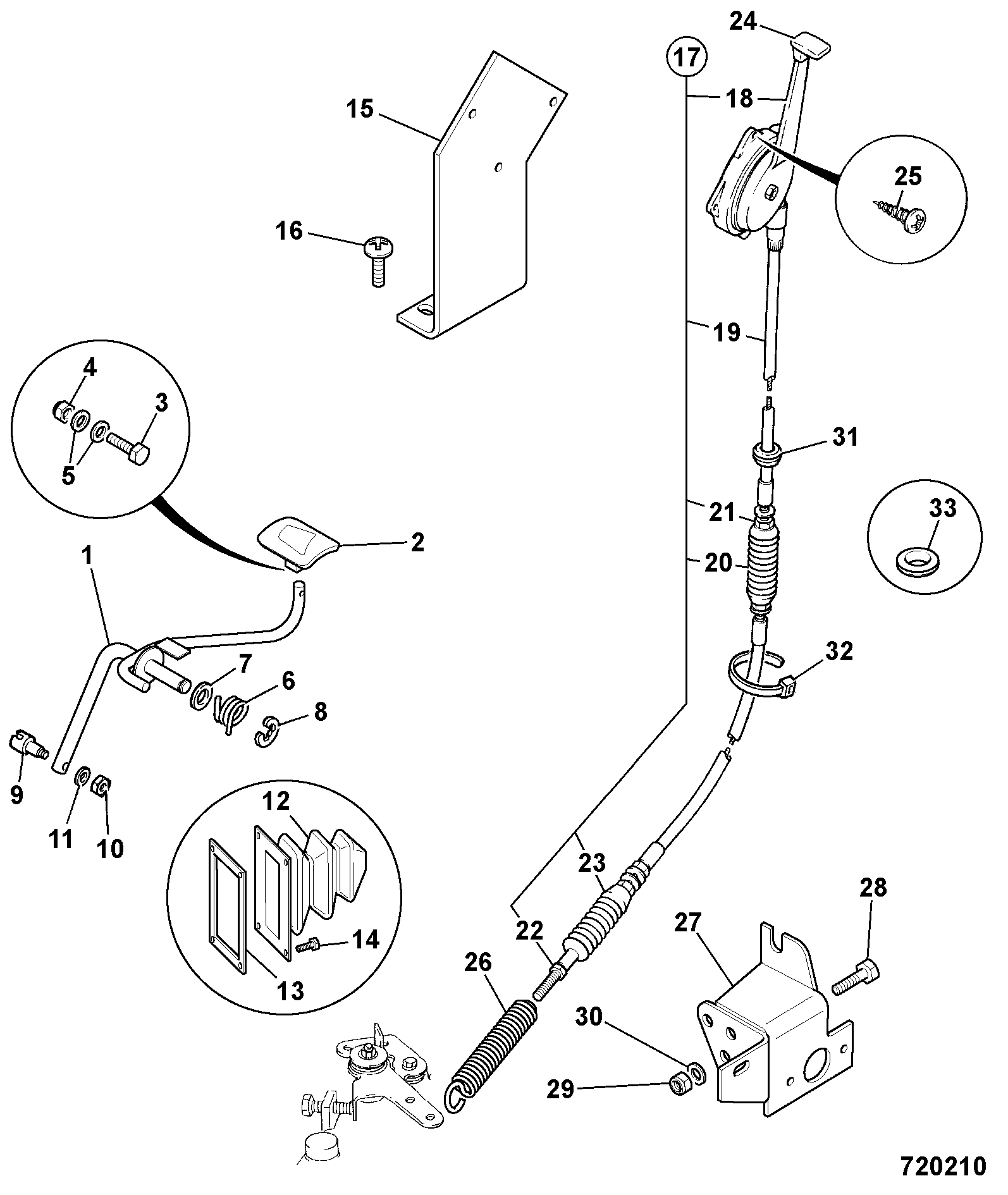

DIAG-D2-2-3-395121-11241279 D2-2-3 CONTROLS THROTTLE & STOP STANDARD, TIER 2 EMISSIONS RG BUILD
View Diagram
