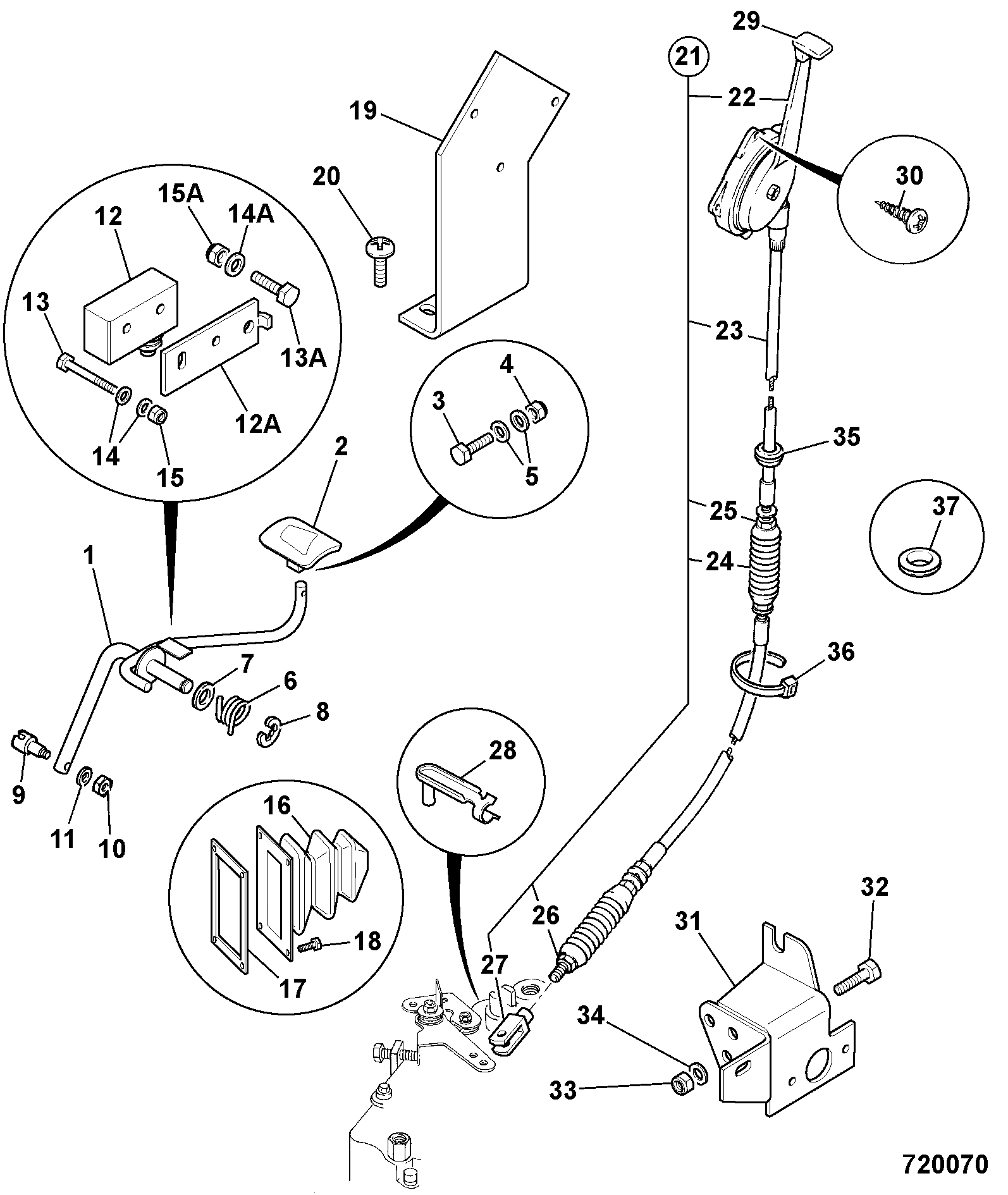

D2-2-4 CONTROLS THROTTLE & STOP POWERSHIFT/AUTOSHIFT, TIER 2 RG BUILD Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	WA THROTTLE PEDAL AUTO 335/03424	1	AVAILABLE TO ORDER	$14.68	Quantity	Quantity
2	FOOT PAD 589/10130	1	AVAILABLE TO ORDER	$35.73	Quantity	Quantity
3	SET M5 X 30 HT (P564) 1315/0108Z	1	AVAILABLE TO ORDER	$0.41	Quantity	Quantity
4	NUT M5 STD SELF LOCK(KANBAN) 1370/0003Z	1	4 IN STOCK	$1.72	Quantity	Quantity
5	WASHER M_5 PLAIN(KANBAN) 1420/0005 1420/0005Z	1	AVAILABLE TO ORDER	$0.43	Quantity	Quantity
6	(W) (Pre-P)-TORSION SPRING 814/00441	1	AVAILABLE TO ORDER	$43.64	Quantity	Quantity
7	WASHER 823/00102	1	AVAILABLE TO ORDER	$3.30	Quantity	Quantity
8	CIRCLIP - OPTIMAS PART! Line side 821/00190	1	94 IN STOCK	$0.65	Quantity	Quantity
9	CABLE PIVOT 123/05557	1	AVAILABLE TO ORDER	$63.41	Quantity	Quantity
10	NUT M6 STD SELF LOCK(KANBAN) 1370/0103Z	1	AVAILABLE TO ORDER	$0.80	Quantity	Quantity
11	WASHER M_6 PLAIN 1420/0006Z 1420/0006D	1	95 IN STOCK	$0.17	Quantity	Quantity
12	(W) (W) (Z) MICROSWITCH 701/27400	1	AVAILABLE TO ORDER	$247.00	Quantity	Quantity
12A	(W) (W) (Z) MOUNT microswitch 331/27710	1	AVAILABLE TO ORDER	$82.19	Quantity	Quantity
13	SCREW.4BA X 1.25LONG 826/01086	1	AVAILABLE TO ORDER	$2.18	Quantity	Quantity
13A	SET SCREW M6x12 1315/0201Z	1	AVAILABLE TO ORDER	$1.63	Quantity	Quantity
14	WASHER 4BA 1414/0009Z	1	AVAILABLE TO ORDER	$0.15	Quantity	Quantity
15	NUT 4BA 1358/0403Z 1358/0403D	1	AVAILABLE TO ORDER	$3.20	Quantity	Quantity
16	SINGLE GAITER 331/31032	1	AVAILABLE TO ORDER	$60.41	Quantity	Quantity
17	GAITER PLATE (3/4CX ) // LOADALL 157/25402	1	AVAILABLE TO ORDER	$49.78	Quantity	Quantity
18	SELF TAPPING SCREW 826/00520	1	AVAILABLE TO ORDER	$2.47	Quantity	Quantity
19	MOUNT.THROTTLE LEVER 331/31126	1	AVAILABLE TO ORDER	$78.32	Quantity	Quantity
20	SCREW M6x25 BUTTON SOCKET 826/01768	1	AVAILABLE TO ORDER	$2.11	Quantity	Quantity
21	CABLE throttle control 910/60195	1	AVAILABLE TO ORDER	$171.46	Quantity	Quantity
22	LEVER ASSY 910/42501	1	AVAILABLE TO ORDER	$0.00	Quantity	Quantity
23	CABLE THROTTLE 331/46986	1	AVAILABLE TO ORDER	$225.83	Quantity	Quantity
24	BELLOWS 2000/0030	1	AVAILABLE TO ORDER	$0.00	Quantity	Quantity
25	NUT M8 THIN PLAIN 1370/0202Z	1	AVAILABLE TO ORDER	$0.71	Quantity	Quantity
26	THIN HEX NUT 1/4 UNF 1340/0002Z	1	AVAILABLE TO ORDER	$6.38	Quantity	Quantity
27	GAITER 331/36972	1	AVAILABLE TO ORDER	$19.43	Quantity	Quantity
28	KNOB 331/23575 331/30884	1	AVAILABLE TO ORDER	$5.96	Quantity	Quantity
29	(P) NO 10 SPIREX5/8L 826/00023	1	AVAILABLE TO ORDER	$3.40	Quantity	Quantity
30	SPRING throttle overload 814/10179	1	AVAILABLE TO ORDER	$16.93	Quantity	Quantity
31	WA THROTTLE BRACKET 335/05854	1	AVAILABLE TO ORDER	$363.42	Quantity	Quantity
32	SET-SCREW M_6 L-_20mm(KANBAN) 1315/0205Z	1	AVAILABLE TO ORDER	$0.33	Quantity	Quantity
34	WASHER M3 PLAIN 1420/0003Z	1	AVAILABLE TO ORDER	$0.18	Quantity	Quantity
35	(W) (P) GROMMET 828/00346	1	AVAILABLE TO ORDER	$10.30	Quantity	Quantity
36	CABLE TIE - BLACK 200mm 826/01144	1	AVAILABLE TO ORDER	$0.20	Quantity	Quantity
37	GROMMET.40 O/Dx17 I/D.R 828/10271	1	AVAILABLE TO ORDER	$4.53	Quantity	Quantity

Showing 1 to 38 of 38 parts
