Kubota Z122RKW C45500 HST RH 1 (COMPONENT PARTS) Parts Diagram

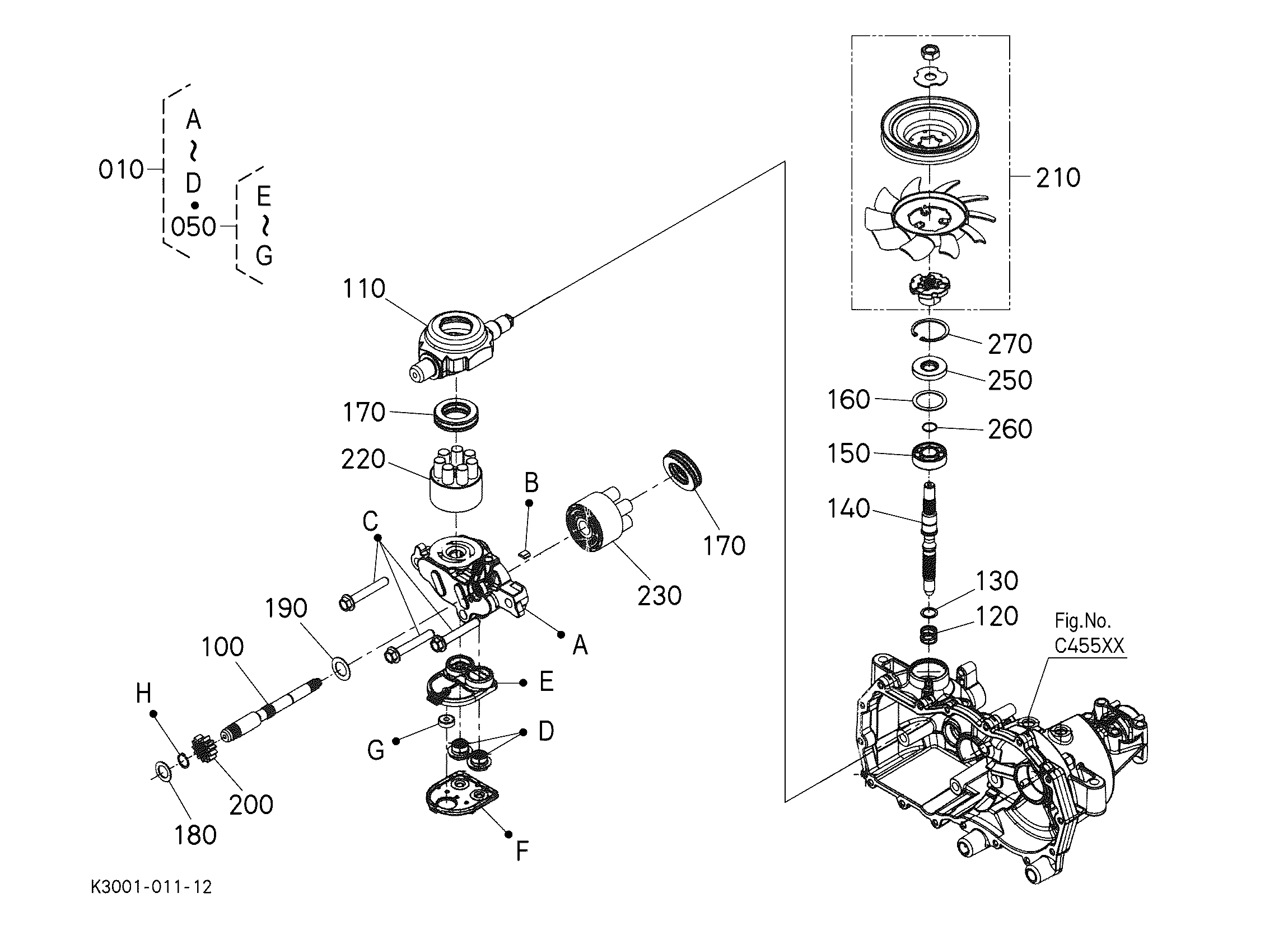

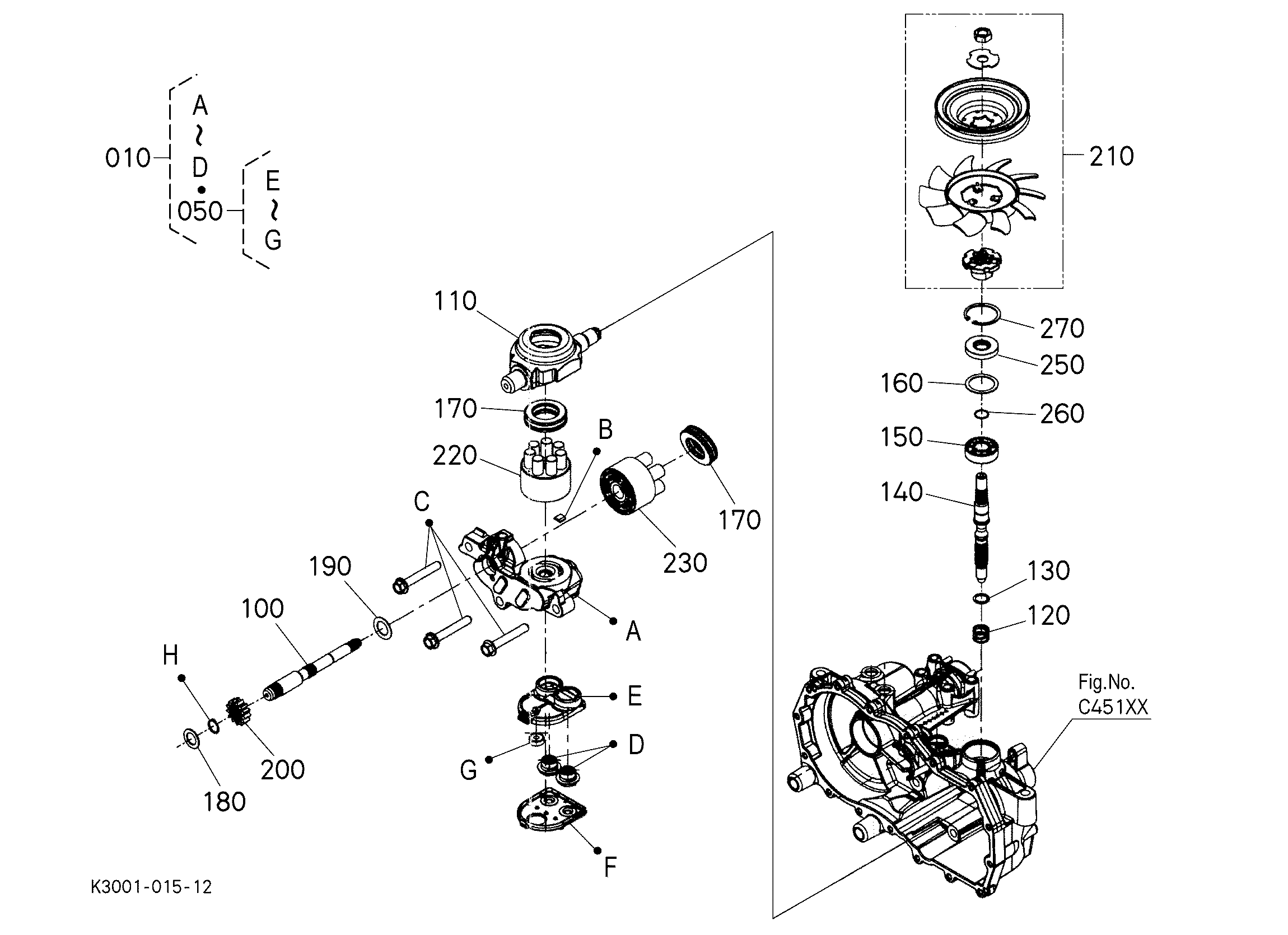

Exploded-view parts diagram "C45500 HST RH 1 (COMPONENT PARTS)" for the Kubota Z122RKW, Kubota Z231KW and Kubota Z232KW. 14 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | KIT HOUSING,RH M K3001-81030 | 1 | $1,037.45 | |||
| 020 | PLATE,RH EXPANSI K3001-81050 | 1 | $37.20 | |||
| 070 | KIT ARM,JOINT W/ K3001-81340 | 1 | $17.88 | |||
| 100 | COVER SIDE,RH #7 K3001-81080 | 1 | $287.37 | |||
| 110 | STUD, 5/16-24x1. K3011-81210 | 1 | $22.12 | |||
| 120 | WASHER, .31x80x2 K3011-81220 | 1 | $6.24 | |||
| 130 | KIT ARM, CONTROL K3011-80060 | 1 | $37.04 | |||
| 140 | ARM, CONTROL K3011-81230 | 1 | $38.15 | |||
| 150 | SCREW, TORX 5/16 K3011-81240 | 1 | $9.71 | |||
| 170 | SCREW HFHCS 1/4- K1042-81010 | 1 | $6.12 | |||
| 180 | ROD BYPATH #5162 K3001-81190 | 1 | $27.63 | |||
| 190 | KIT SEAL,#70853 K3001-81290 | 1 | $123.86 | |||
| 220 | RING RETAINING . K3001-81540 | 1 | $5.44 | |||
| 230 | RING RETAINING . K3001-81550 | 1 | $5.29 | |||
Showing 1 to 14 of 14 parts
