Kubota Z122RKW C45200 HST LH 2 (COMPONENT PARTS) Parts Diagram

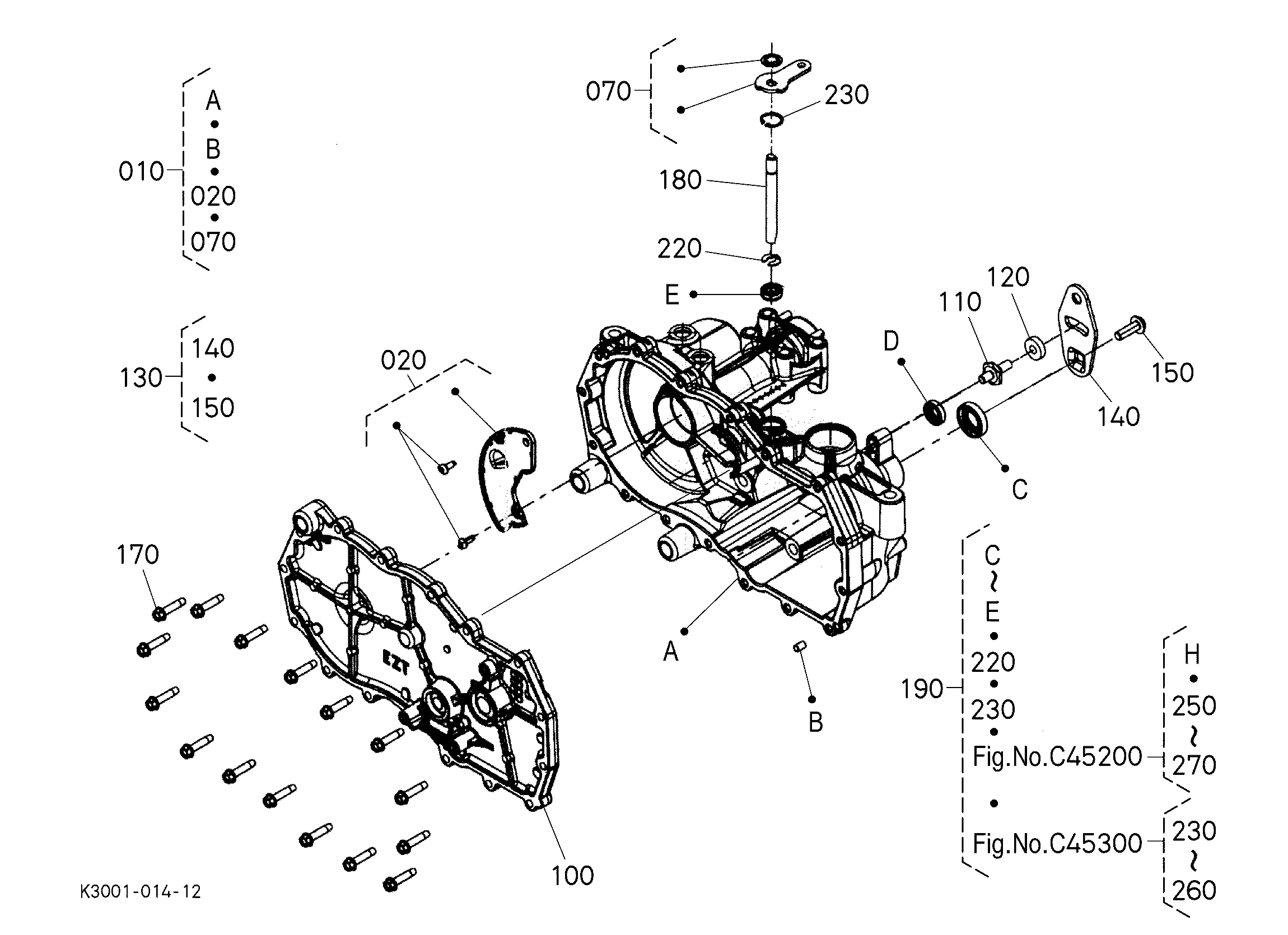

Exploded-view parts diagram "C45200 HST LH 2 (COMPONENT PARTS)" for the Kubota Z122RKW. 19 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | CENTER,LH W/FILT K3001-81090 | 1 | $393.27 | |||
| 050 | KIT FILTER,#7149 K3001-81110 | 1 | $30.33 | |||
| 100 | SHAFT MOTOR #518 K3001-81150 | 1 | $229.41 | |||
| 110 | TRUNNION, SWASHP K1042-81160 | 1 | $149.76 | |||
| 120 | SPRING COMPRESSI K3001-81200 | 1 | $6.20 | |||
| 130 | WASHER .591*.787 K3001-81210 | 1 | $5.83 | |||
| 140 | SHAFT INPUT #510 K3001-81220 | 1 | $211.28 | |||
| 150 | BEARING BALL 17* 50315 K3001-81230 | 1 | $27.84 | |||
| 160 | WASHER 50951 K1042-81200 | 1 | $6.12 | |||
| 170 | BEARING, THRUST K1211-81080 K1122-81080 | 1 | $41.64 | |||
| 180 | WASHER K1042-81320 | 1 | $6.12 | |||
| 190 | WASHER K1042-81350 | 1 | $6.12 | |||
| 200 | GEAR PINION 13T K3001-81300 | 1 | $11.90 | |||
| 210 | KIT FAN,PULLEY K3001-81170 | 1 | $65.31 | |||
| 220 | BLOCK, CYL K1042-81310 | 1 | $353.72 | |||
| 230 | PISTON BLOCK 5P1 K3001-81180 | 1 | $244.15 | |||
| 250 | SEAL 17*40*7 K3001-81590 | 1 | $18.71 | |||
| 260 | RING SPIRAL RETA K3001-81610 | 1 | $5.44 | |||
| 270 | RING RETAINER 50329 K3001-81600 | 1 | $8.17 | |||
Showing 1 to 19 of 19 parts
