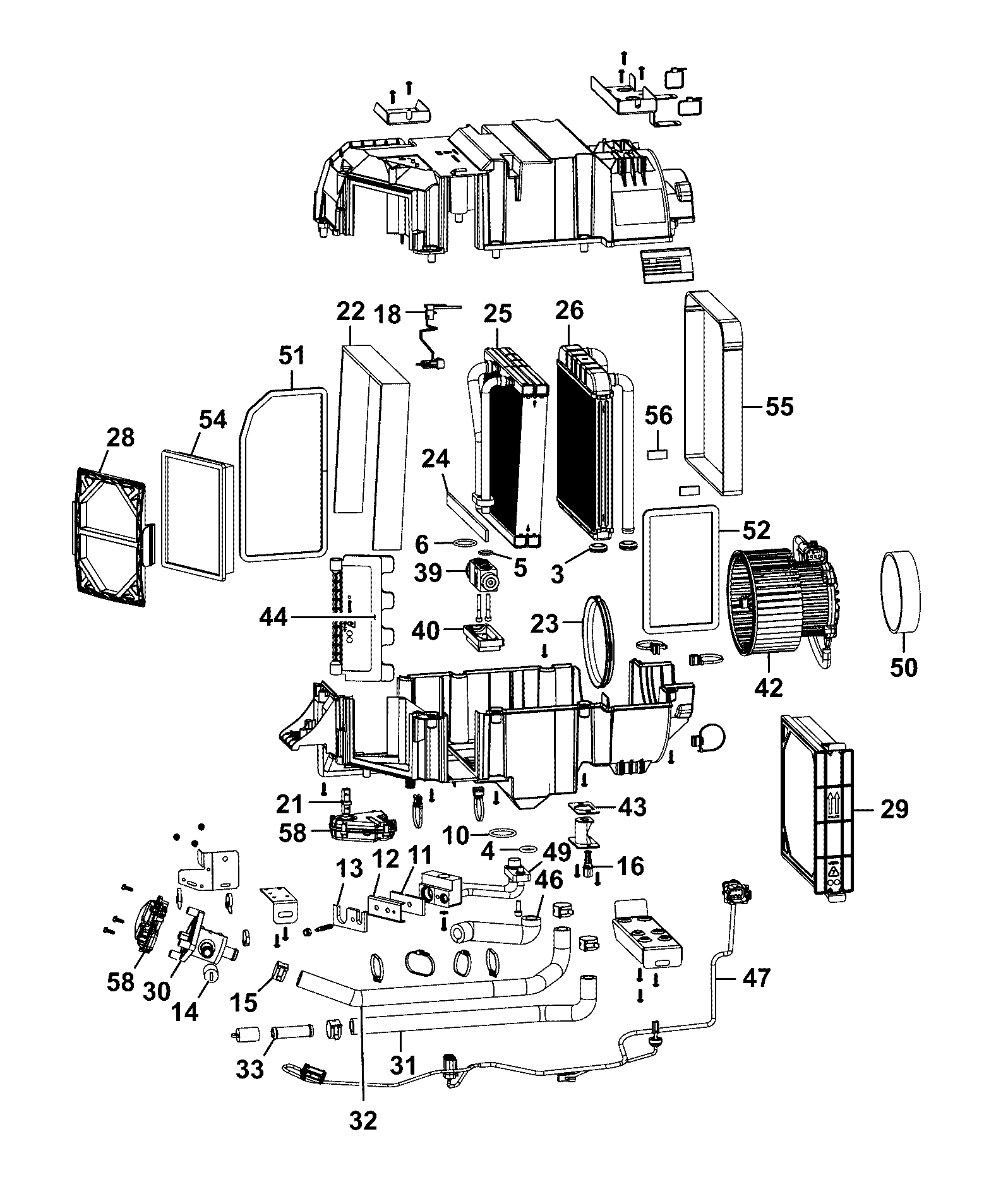

C340-5-1 HEATER/AIR CON ASSEMBLY UNIT HVAC , WALL MOUNT Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	(P) HVAC UNIT (P493) 400/B6602 401/V6406	1	AVAILABLE TO ORDER	$2,375.52	Quantity	Quantity
	Bushing 400/04060	1	AVAILABLE TO ORDER	$21.70	Quantity	Quantity
2	Washer 30/925896	1	AVAILABLE TO ORDER	$5.10	Quantity	Quantity
3	Grommet 30/925898	1	AVAILABLE TO ORDER	$10.82	Quantity	Quantity
4	O RING 993/99561	1	17 IN STOCK	$4.83	Quantity	Quantity
5	O RING 993/84100	1	1 IN STOCK	$13.87	Quantity	Quantity
6	O RING 993/84300 993/99562	1	19 IN STOCK	$3.28	Quantity	Quantity
7	Cable Tie 335/G7509	1	AVAILABLE TO ORDER	$0.71	Quantity	Quantity
8	333/G8021-M6 nyloc 333/G8021	1	AVAILABLE TO ORDER	$1.05	Quantity	Quantity
9	Screw allen 30/925909	1	AVAILABLE TO ORDER	$39.59	Quantity	Quantity
10	BOLT ALLEN 30/925910	1	AVAILABLE TO ORDER	$46.97	Quantity	Quantity
11	SEAL 923/10099	1	AVAILABLE TO ORDER	$27.87	Quantity	Quantity
12	Seal 333/P8394	1	AVAILABLE TO ORDER	$7.61	Quantity	Quantity
13	PLATE CLAMP 30/925913	1	AVAILABLE TO ORDER	$8.23	Quantity	Quantity
14	PLATE CLAMP TXV 30/925914	1	AVAILABLE TO ORDER	$31.48	Quantity	Quantity
15	Cap 923/10138	1	AVAILABLE TO ORDER	$12.71	Quantity	Quantity
16	CLIP, HOSE 30/926319	1	AVAILABLE TO ORDER	$19.52	Quantity	Quantity
17	THERMISTOR 400/01980 332/R0181	1	AVAILABLE TO ORDER	$89.36	Quantity	Quantity
18	(P) Actuator (P493) 400/01733 333/G8781	1	AVAILABLE TO ORDER	$374.69	Quantity	Quantity
20	Sensor 400/01120	1	AVAILABLE TO ORDER	$114.68	Quantity	Quantity
28	Coil evaporator 400/01981	1	AVAILABLE TO ORDER	$528.62	Quantity	Quantity
29	Coil heater 400/01982	1	AVAILABLE TO ORDER	$275.18	Quantity	Quantity
30	'MISC FRESH AIR FILTEROS (P572)100112808 400/E7179	1	1 IN STOCK	$69.97	Quantity	Quantity
32	Fresh air filter bracket 400/01122	1	AVAILABLE TO ORDER	$45.46	Quantity	Quantity
33	Common filter 400/01128	1	1 IN STOCK	$176.48	Quantity	Quantity
34	Water valve 400/01129	1	AVAILABLE TO ORDER	$164.15	Quantity	Quantity
35	Hose 400/01130	1	AVAILABLE TO ORDER	$48.73	Quantity	Quantity
36	Hose 400/01131	1	AVAILABLE TO ORDER	$55.05	Quantity	Quantity
46	Motor blower 400/01983	1	AVAILABLE TO ORDER	$769.11	Quantity	Quantity
51	Wire harness HVAC 400/01124	1	AVAILABLE TO ORDER	$159.21	Quantity	Quantity
55	Re-Circ seal 400/01126	1	AVAILABLE TO ORDER	$28.90	Quantity	Quantity
56	Outlet seal 400/01127	1	AVAILABLE TO ORDER	$23.83	Quantity	Quantity
58	Heater pipe assembly 400/02740	1	AVAILABLE TO ORDER	$155.91	Quantity	Quantity
59	Valve 400/04063	1	AVAILABLE TO ORDER	$132.49	Quantity	Quantity

Showing 1 to 34 of 34 parts

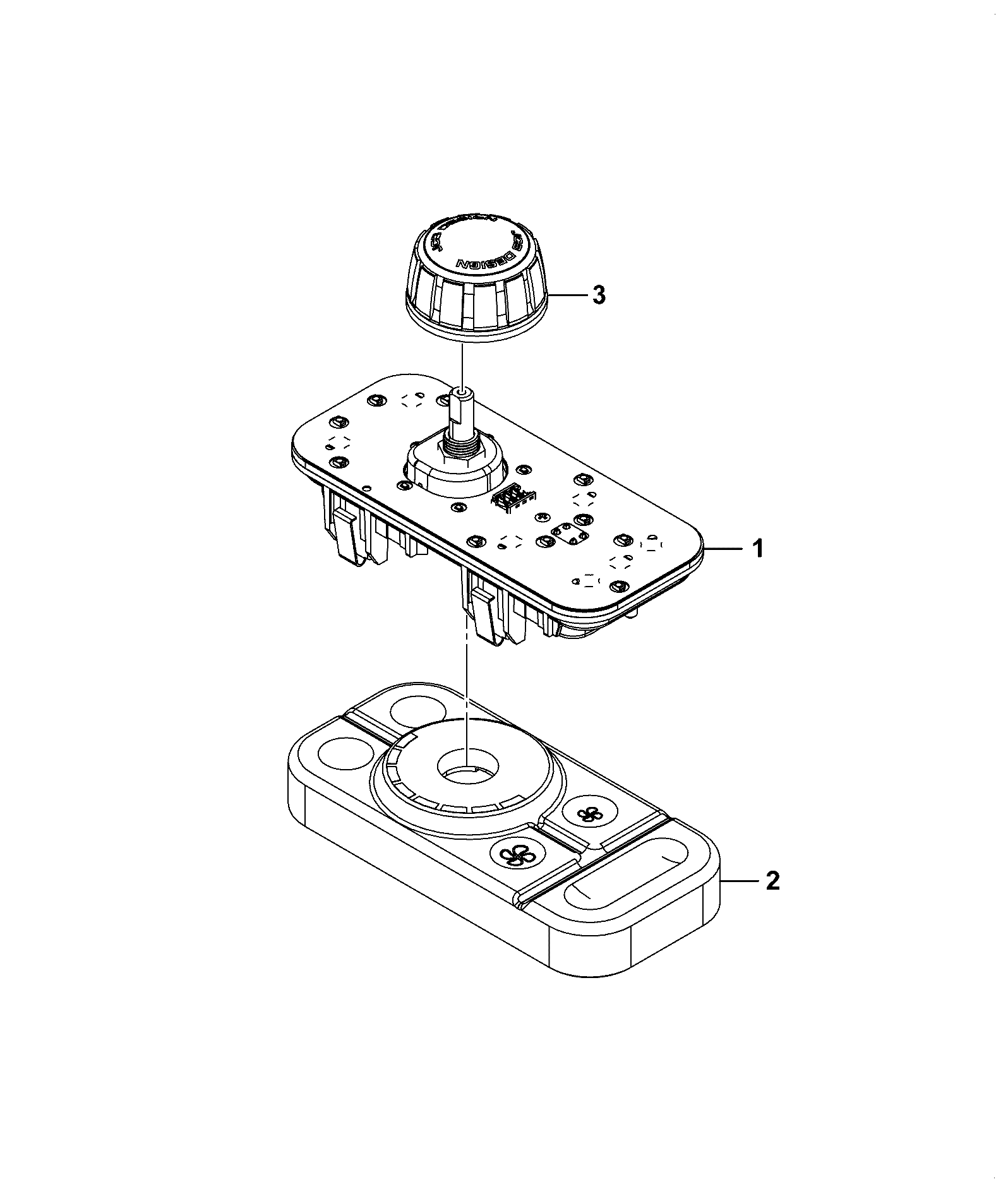

DIAG-C340-1-1-401617 C340-1-1 HEATER/AIR CON ASSEMBLY DETAILS HEATER CONTROL PANEL
View Diagram
DIAG-C340-6-1-401617 C340-6-1 HEATER/AIR CON ASSEMBLY UNIT HVAC
View Diagram

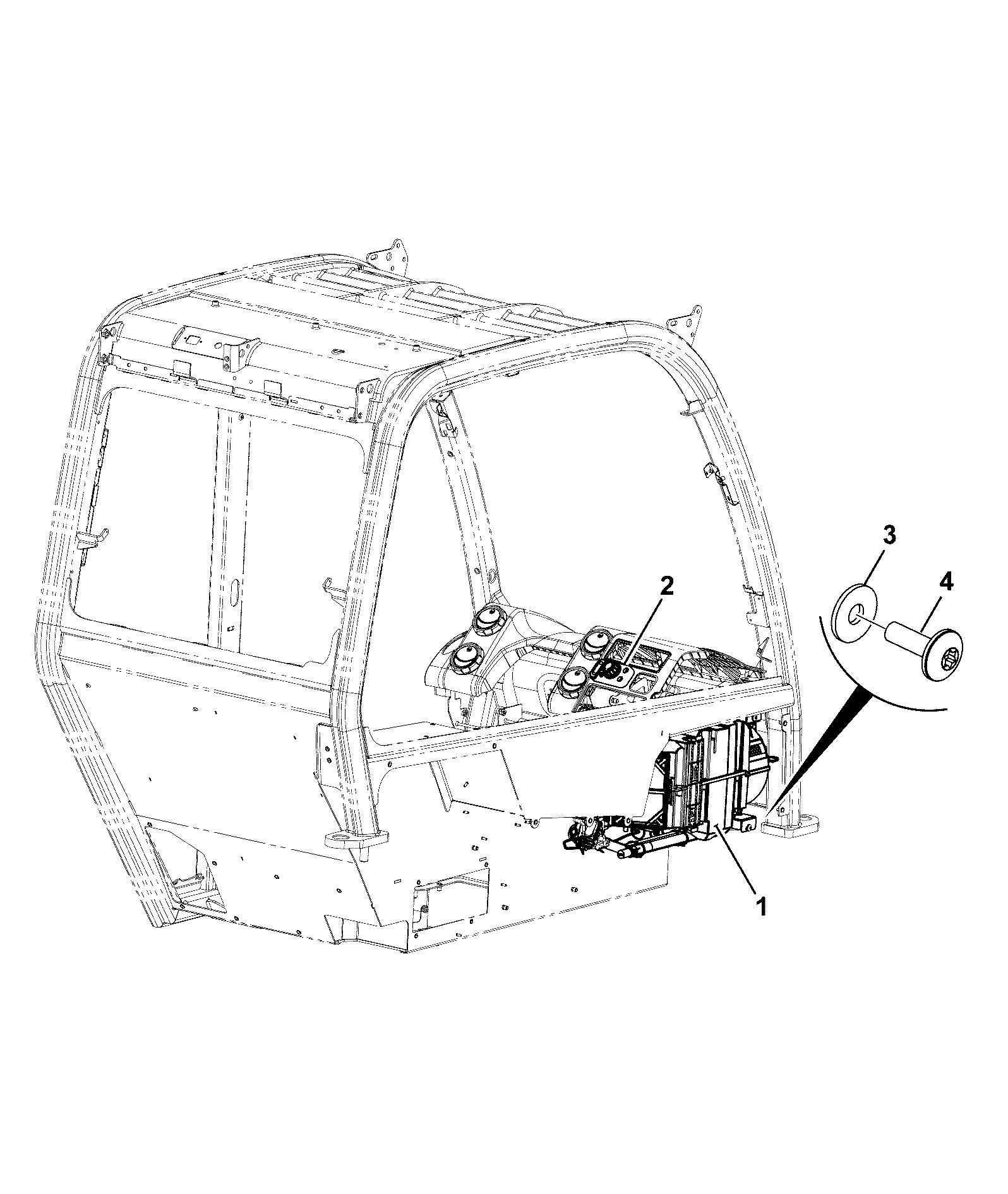

DIAG-C340-15-1-401617 C340-15-1 HEATER/AIR CON ASSEMBLY INSTALLATION HEATER UNIT
View Diagram
