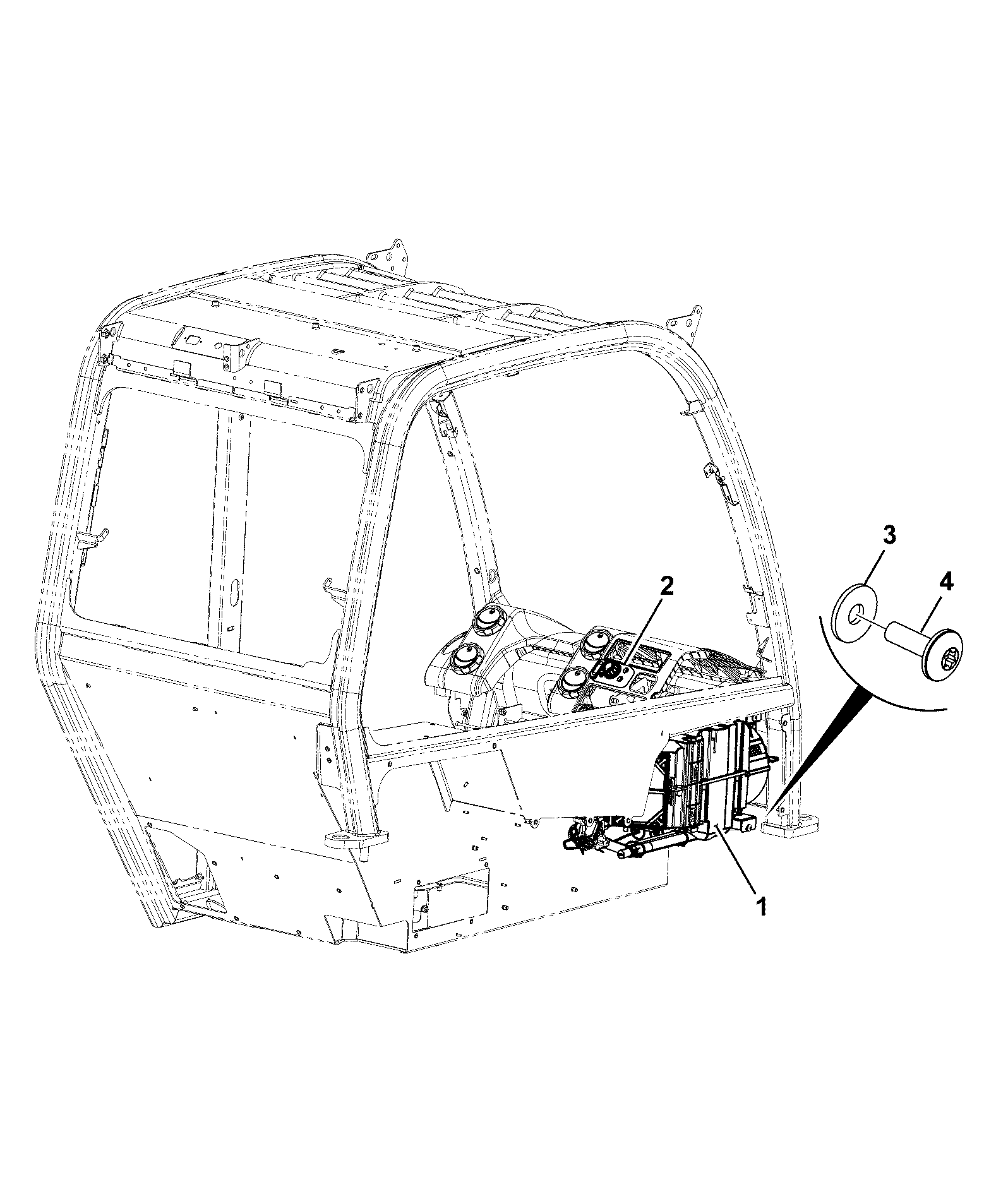

C340-15-1 HEATER/AIR CON ASSEMBLY INSTALLATION HEATER UNIT

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	(P) HEATER UNIT (P493) 400/B6600 401/V6340	1	AVAILABLE TO ORDER	$1,739.37	Quantity
2	'PURCHASED BASIC HEATER CONTROL PANE (P4 400/L9922	1	AVAILABLE TO ORDER	$525.76	Quantity
3	BLACK NYLON WASHER M6 (P710-T) 333/J7747	1	AVAILABLE TO ORDER	$0.44	Quantity
4	M6x20 BUTTON HEAD (P572) 826/11069 336/C1224	1	AVAILABLE TO ORDER	$1.08	Quantity

Showing 1 to 4 of 4 parts

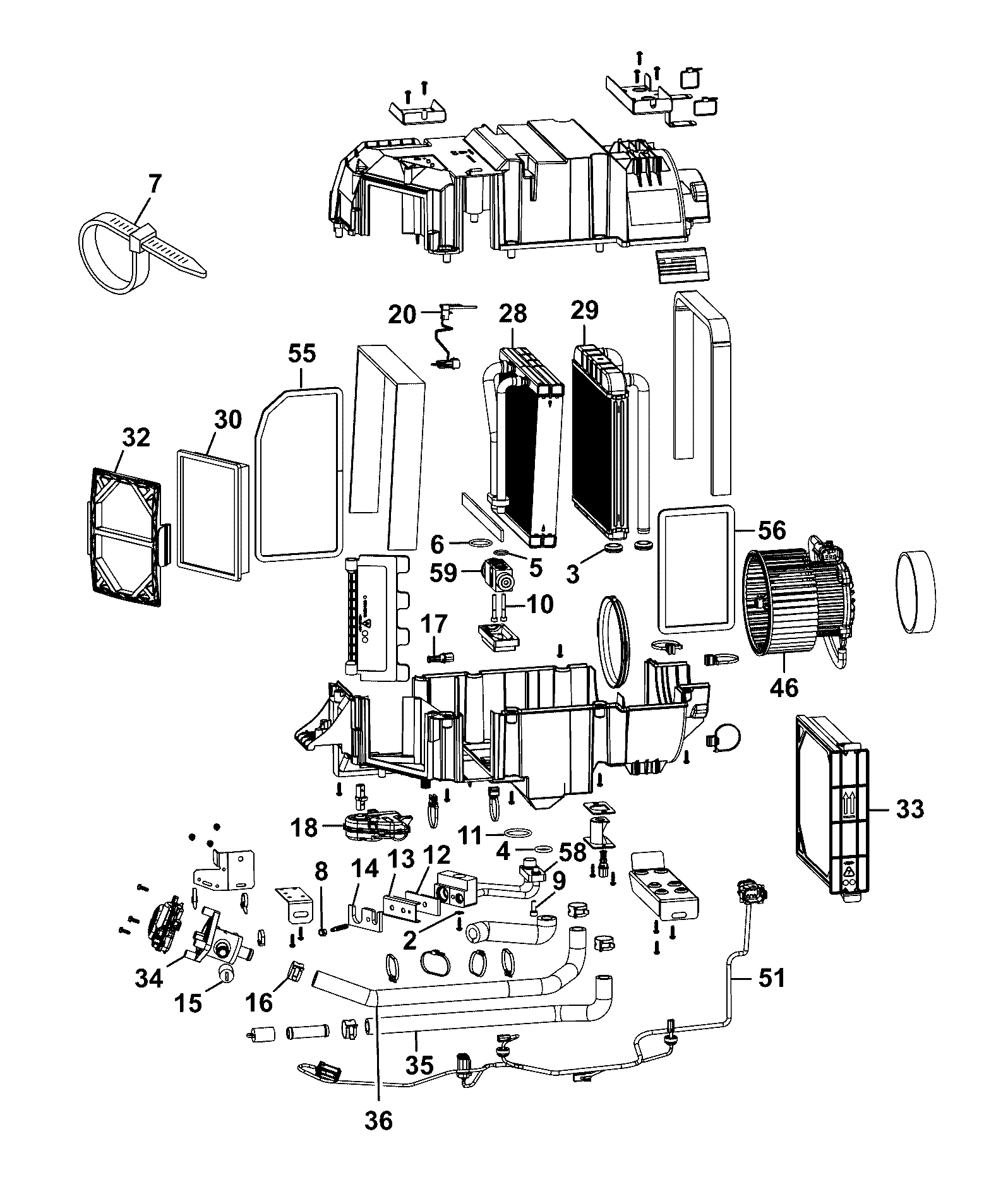

DIAG-C340-6-1-401617 C340-6-1 HEATER/AIR CON ASSEMBLY UNIT HVAC
