C3-22-2 AIR-CON CONDENSER Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	Pipe Set 30/926352	1	AVAILABLE TO ORDER	$938.71	Quantity
1	BOX CONDENSER 331/13180	1	AVAILABLE TO ORDER	$3,260.01	Quantity
2	Condenser 332/D1767	1	AVAILABLE TO ORDER	$192.37	Quantity
6	FAN 30/925660	1	AVAILABLE TO ORDER	$1,236.50	Quantity
7	GROMMET 993/86302	1	AVAILABLE TO ORDER	$1.46	Quantity

Showing 1 to 5 of 5 parts

DIAG-C3-22-2-400552-12820888 C3-22-2 AIR-CON CONDENSER
View Diagram

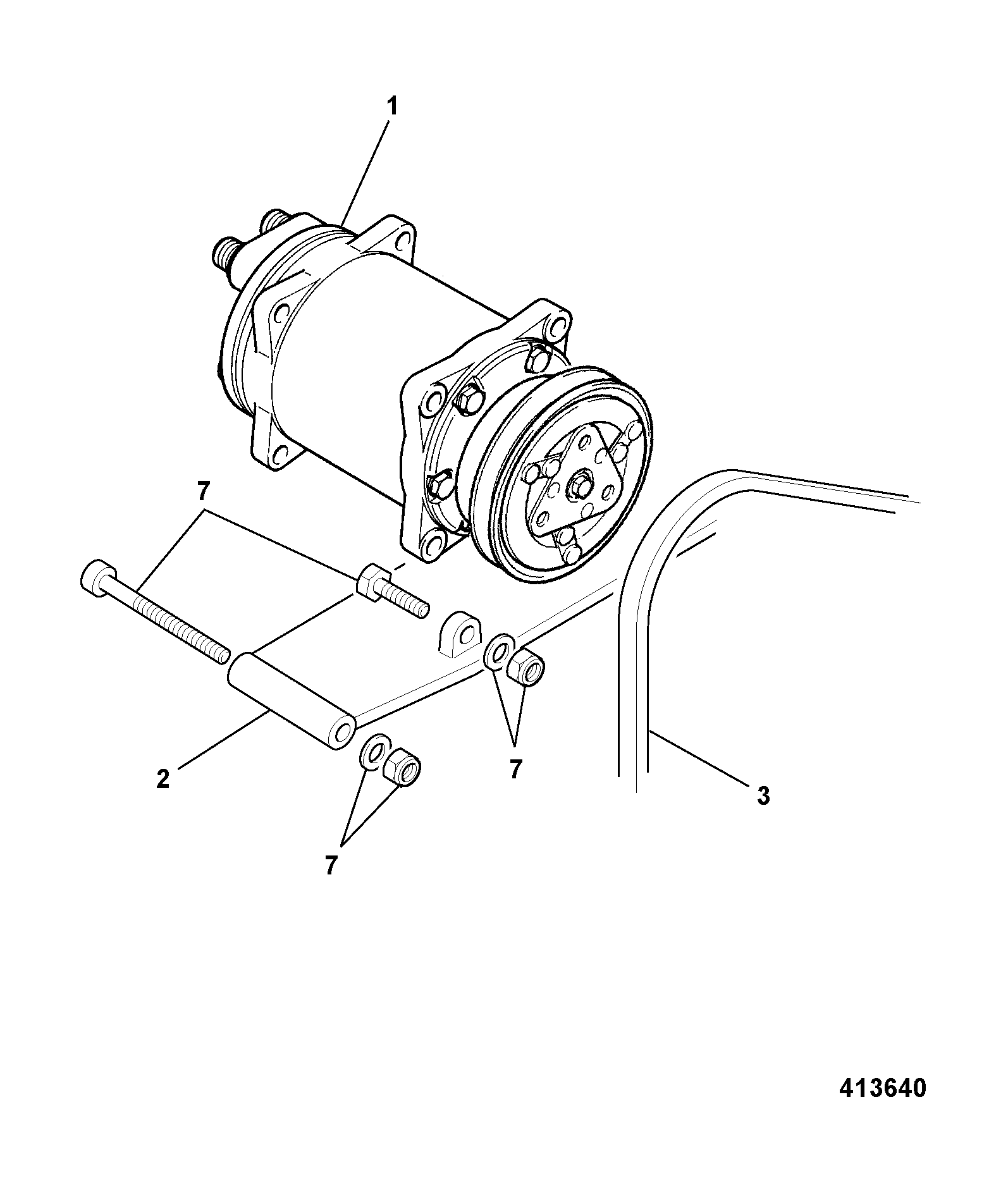

DIAG-C3-21-2-400552 C3-21-2 AIR-CON COMPRESSOR
View Diagram

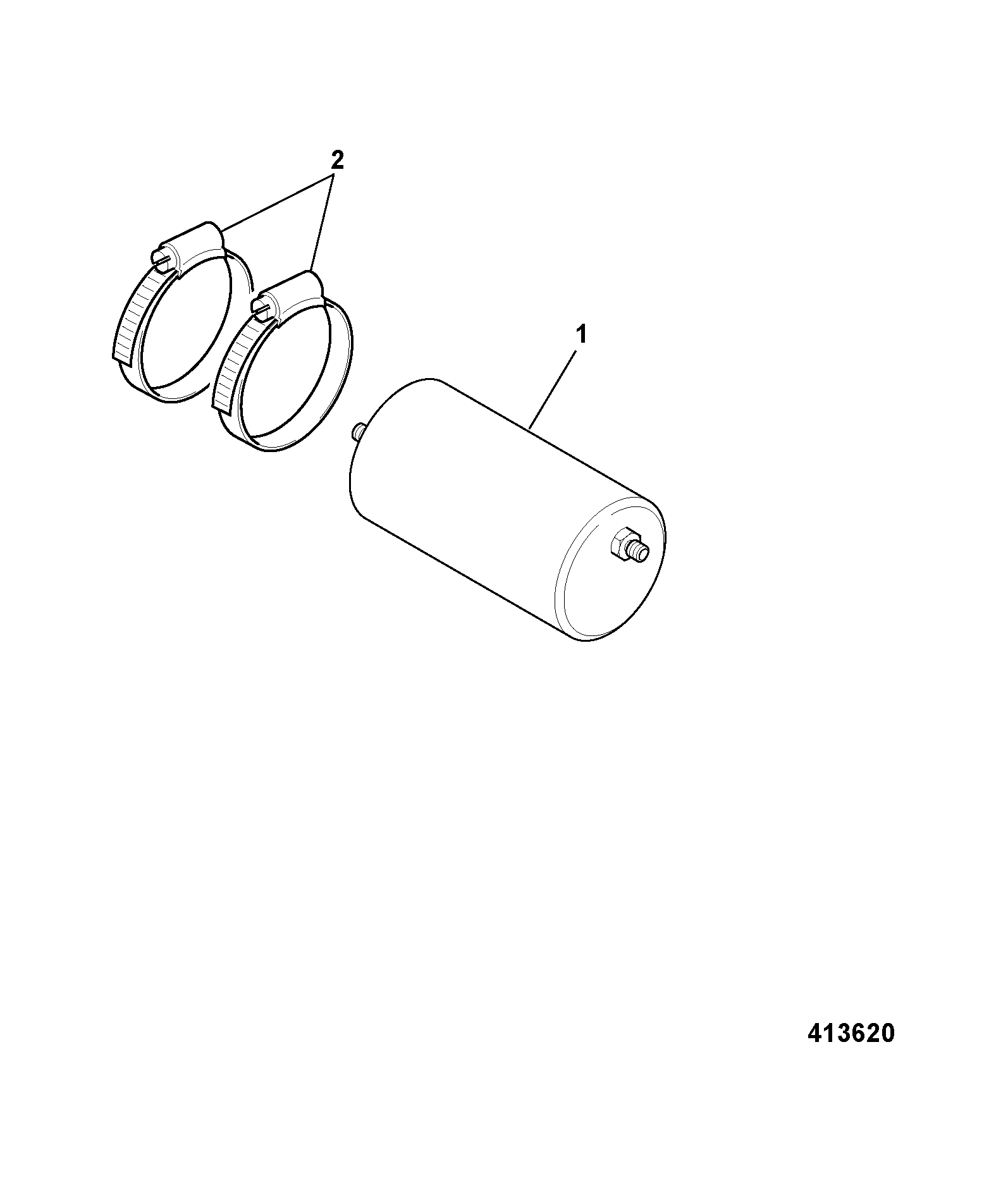

DIAG-C3-23-2-400552 C3-23-2 AIR-CON RECIEVER DRIER
View Diagram

Previous Assembly DIAG-C3-21-2-400552 C3-21-2 AIR-CON COMPRESSOR Next Assembly DIAG-C3-22-2-400552-12820888 C3-22-2 AIR-CON CONDENSER
