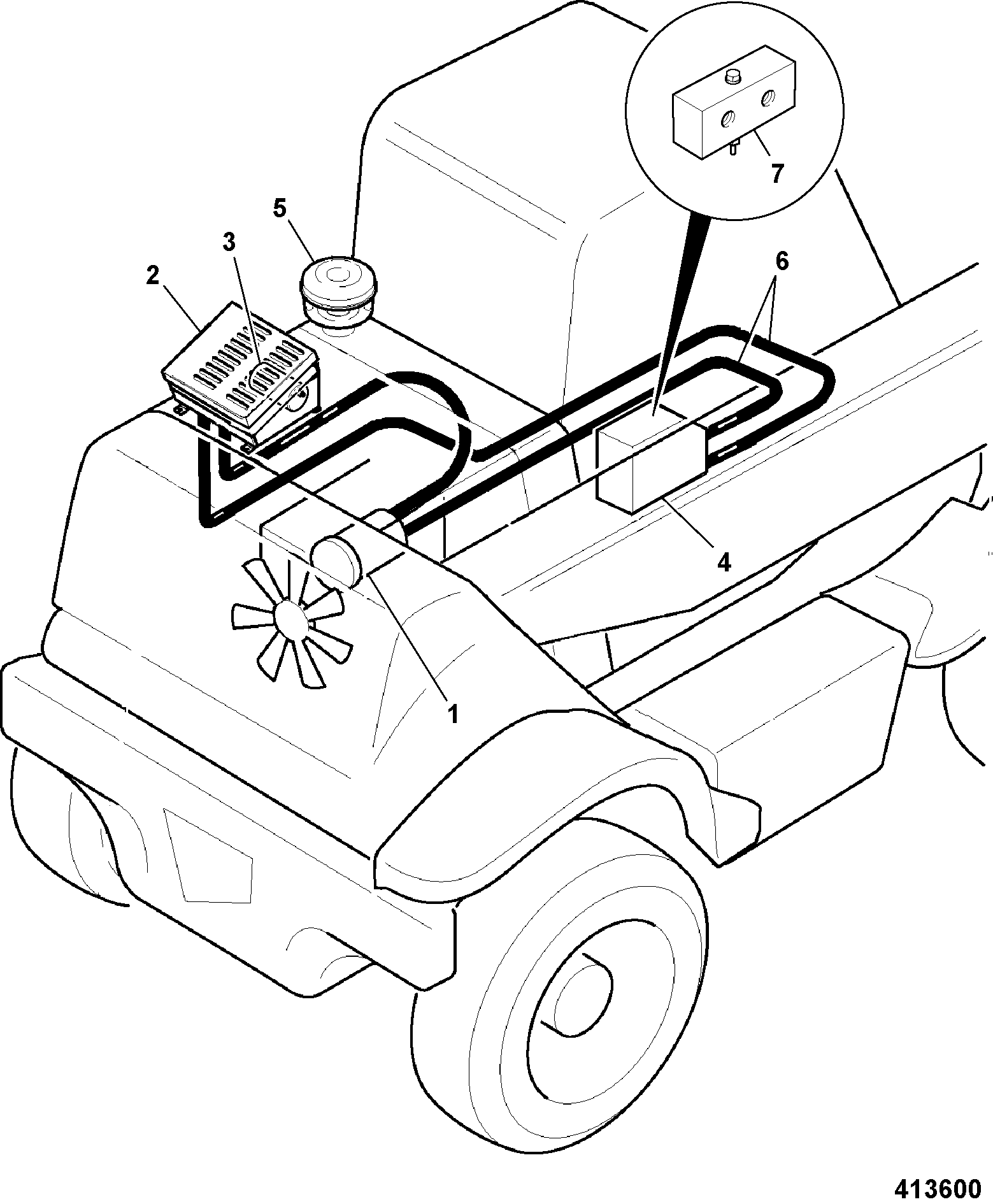

C3-21-2 AIR-CON COMPRESSOR Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	COMPRESSOR 30/925655	1	AVAILABLE TO ORDER	$5,570.86	Quantity
2	Bracket compressor 335/08297	1	AVAILABLE TO ORDER	$1,058.37	Quantity
3	BELT COMPRESSOR 331/46400	1	AVAILABLE TO ORDER	$23.16	Quantity
3	BELT DRIVE 30/925657	1	AVAILABLE TO ORDER	$350.32	Quantity

Showing 1 to 4 of 4 parts

DIAG-C3-20-2-400552 C3-20-2 AIR CONDITION KIT
View Diagram
DIAG-C3-22-2-400552 C3-22-2 AIR-CON CONDENSER
View Diagram
DIAG-C3-22-2-400552-12820888 C3-22-2 AIR-CON CONDENSER
View Diagram

Previous Assembly DIAG-C3-20-2-400552 C3-20-2 AIR CONDITION KIT Next Assembly DIAG-C3-22-2-400552 C3-22-2 AIR-CON CONDENSER
