| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | COMPRESSOR 12V 123/04998 | 1 | $842.18 | |||
| 2 | RECEIVER / DRIER 30/925633 | 1 | $205.83 | |||
| 3 | GA HOSE KIT aircon 128/14237 | 1 | $1,420.93 | |||
| 3A | HOSE a/c comp/condenser 649/51623 | 1 | $457.08 | |||
| 3B | HOSE AIR CONDITIONING 649/51626 | 1 | $119.75 | |||
| 3C | AIRCON HOSE 2630mm 649/51627 | 1 | $208.56 | |||
| 3D | HOSE a/c comp/evaporator 649/51625 | 1 | $889.24 | |||
| 4 | O RING 993/99560 | 1 | $13.87 | |||
| 5 | O RING 993/99561 | 1 | $4.83 | |||
| 6 | O RING 993/84300 993/99562 | 1 | $3.28 | |||
| 7 | O RING 993/99610 | 1 | $7.65 | |||
| 8 | HOSE CLAMP TOP 821/00213 | 1 | $0.55 | |||
| 9 | HOSE CLAMP BASE 821/00214 | 1 | $0.65 | |||
| 10 | HOSE CLAMP INSERT 821/00215 | 1 | $2.62 | |||
| 11 | CLAMP TOP 821/00186 | 1 | $10.98 | |||
| 12 | P Clip Base 821/00187 | 1 | $8.80 | |||
| 13 | RUBBER INSERT 821/00188 | 1 | $2.63 | |||
| 14 | SET SCREW M10x40 1315/0410Z | 1 | $2.26 | |||
| 15 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 16 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 17 | CABLE TIE - BLACK 200mm 826/01144 | 1 | $0.20 | |||
| 18 | CABLE TIE - BLACK 300mm 121/77603 | 1 | $0.95 | |||
| 19 | CONDENSER aircon 30/925766 | 1 | $720.59 | |||
| 20 | BOLT M6x40 1315/3210Z | 1 | $0.81 | |||
| 21 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 22 | L/H MOUNT condenser 331/38155 | 1 | $238.07 | |||
| 23 | R/H MOUNT condenser 331/38156 | 1 | $76.16 | |||
| 24 | EXHAUST CLAMP 426 USA BID 821/00264 | 1 | $20.45 | |||
| 25 | BRACKET 331/29701 | 1 | $91.03 | |||
| 26 | RIVET-NUT M12 826/01681 | 1 | $13.22 | |||
| 27 | (W) (W) (P) GA HEATER/AIRCON UNIT 128/11870 | 1 | $1,556.47 | |||
| 32 | SPIRAL HOSE GUARD 600mm 647/11801 | 1 | $11.12 | |||
| 33 | MOUNT hose guide 331/36968 | 1 | $14.55 | |||
| 33A | (W) (P) BOLT M10x35 1315/3409Z | 1 | $1.52 | |||
| 33B | SET SCREW M8x35(KANBAN) 1315/0309Z | 1 | $2.57 | |||
| 34 | CLAMP hose guide 331/37538 | 1 | $170.01 | |||
| 35 | DUAL HOSE CLAMP SET 821/10431 | 1 | $1.52 | |||
| 36 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 37 | BOLT M8 x 65 G8.8 1315/3315Z | 1 | $4.41 | |||
| 38 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 39 | SET-SCREW M_8 L-20mm 1315/0305Z | 1 | $1.25 | |||
Showing 1 to 41 of 41 parts
Related Assemblies
-
DIAG-C3-19-2-395097 C3-19-2 AIR CONDITIONING INSTALLATION
View Diagram -

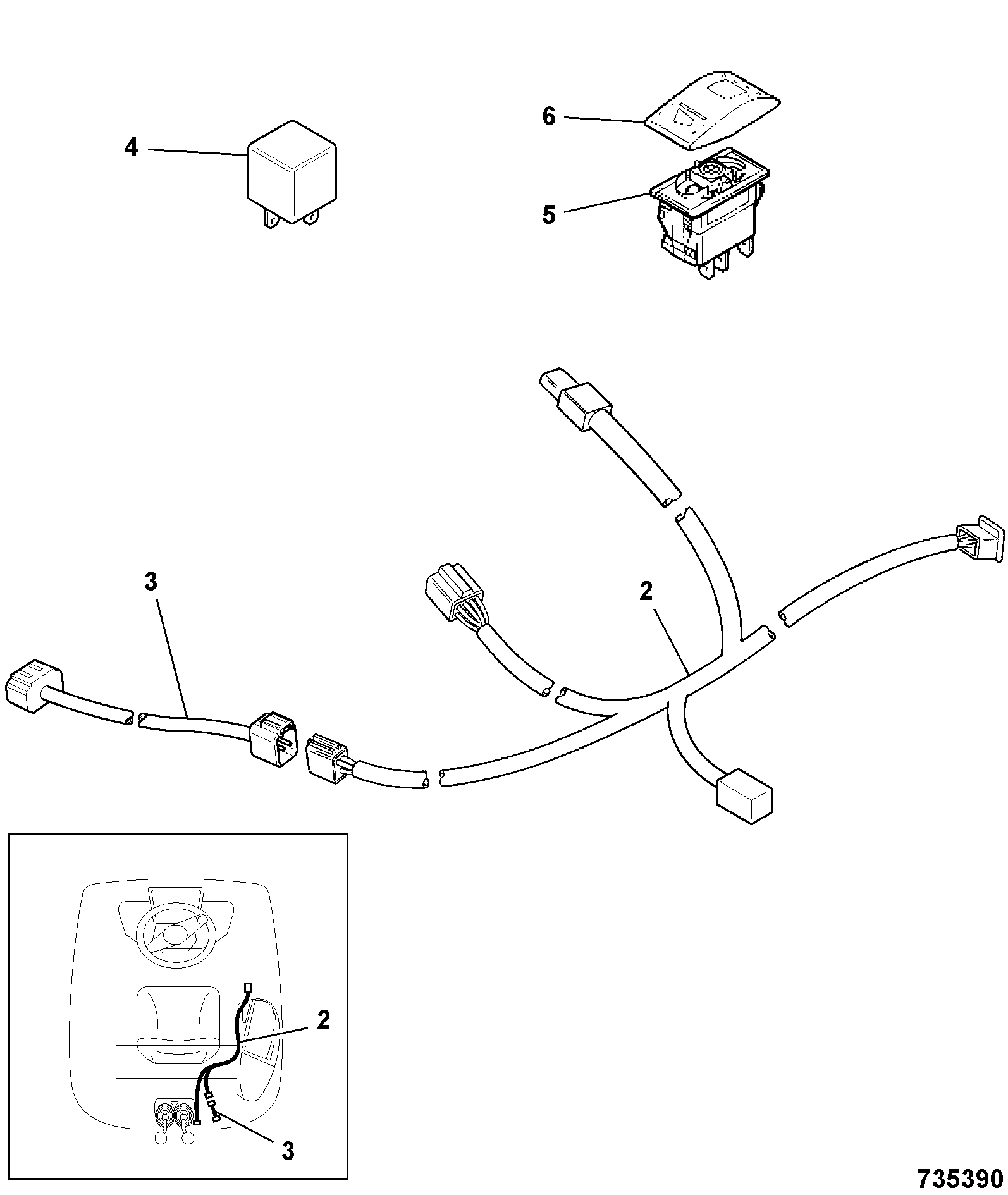

DIAG-C3-22-1-395097 C3-22-1 HARNESS HAMMER ATTACHMENT
View Diagram -

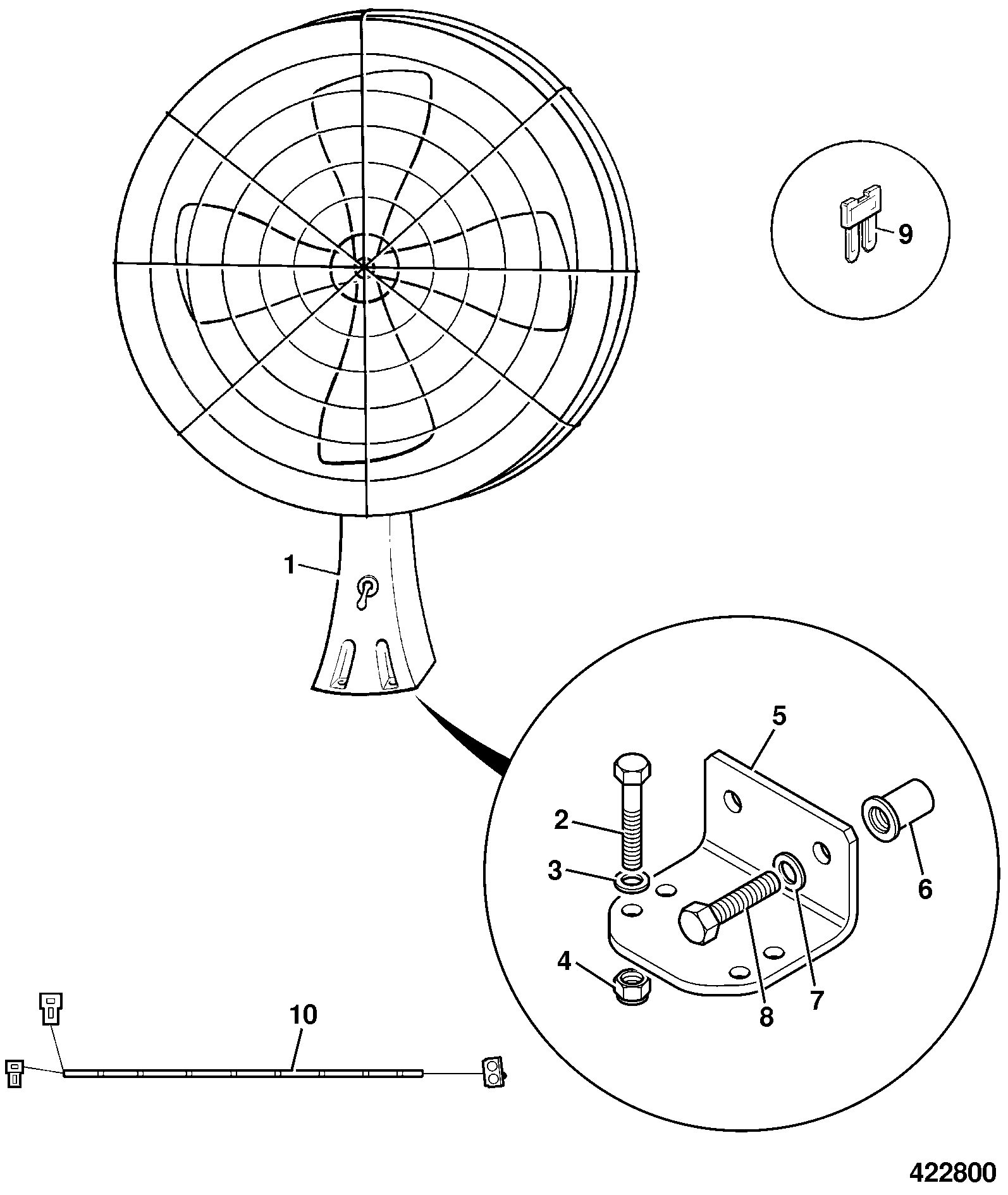

DIAG-C3-17-1-395097-11177548 C3-17-1 FAN, FACE LEVEL CANOPY OPTIONAL
