Scroll to zoom Click a part # to view details

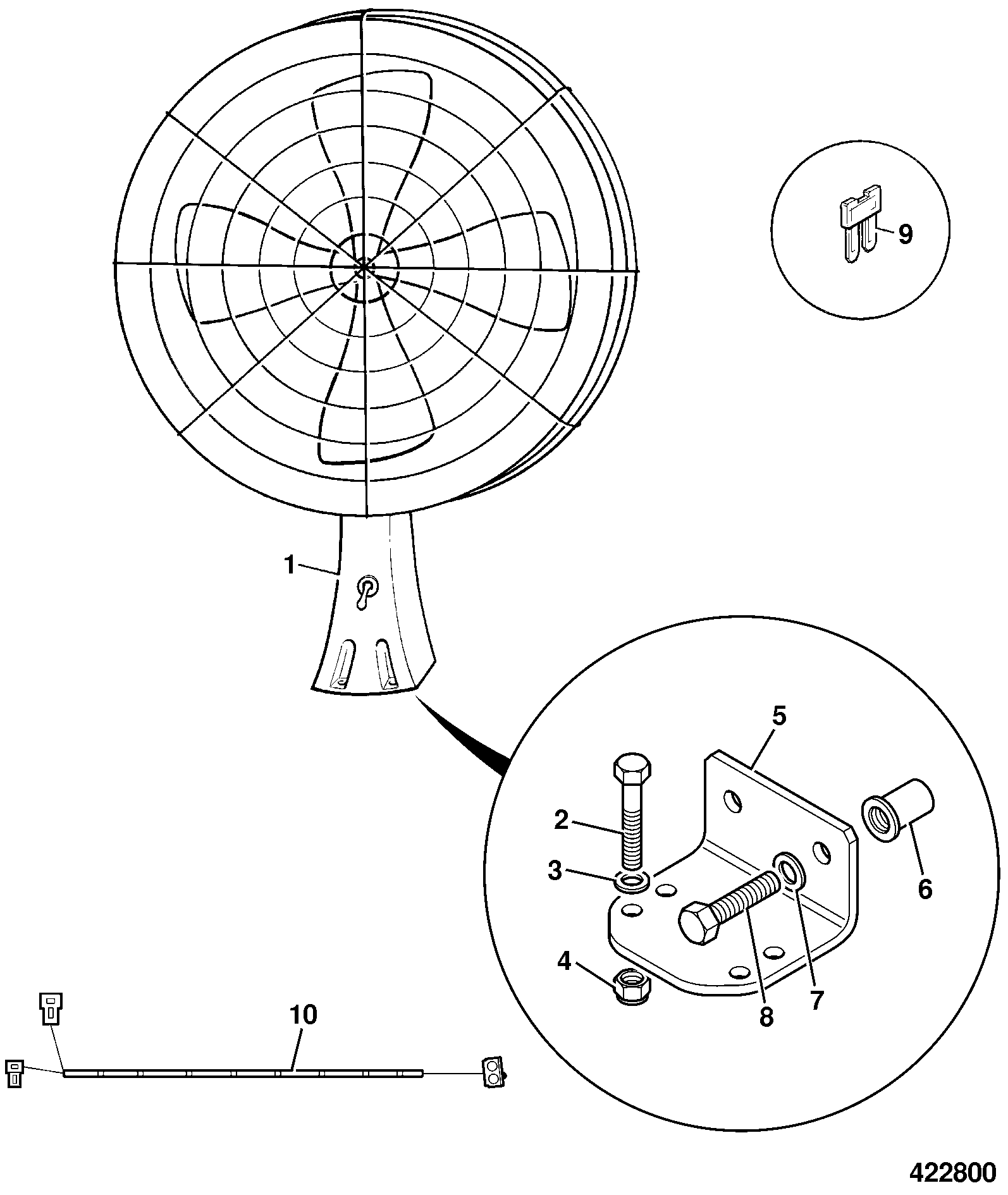

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | FACE FAN 12v 717/04200 717/20040 | 1 | $358.09 | |||
| 2 | SCREW M8x25 BUTTON SOCKET (P564) 826/01554 | 1 | $3.46 | |||
| 3 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 4 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 5 | BRACKET.FACE FAN.CANOPY. 331/31006 | 1 | $120.43 | |||
| 6 | NUT RIVET 826/01105 826/01105A | 1 | $6.66 | |||
| 7 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 8 | SET-SCREW M10 L-_30mm 1315/0408Z | 1 | $1.22 | |||
| 9 | FUSE-15AMP 716/05706 | 1 | $0.62 | |||
| 10 | HARNESS.FACE FAN.CANOPY. 721/11224 | 1 | $44.97 | |||
Showing 1 to 10 of 10 parts
Related Assemblies
-
DIAG-C3-17-1-395097 C3-17-1 FAN, FACE LEVEL CANOPY
View Diagram -
DIAG-C3-19-2-395097 C3-19-2 AIR CONDITIONING INSTALLATION
View Diagram -
DIAG-C3-19-3-395097 C3-19-3 AIR CONDITIONING INSTALLATION TIER 2
View Diagram
