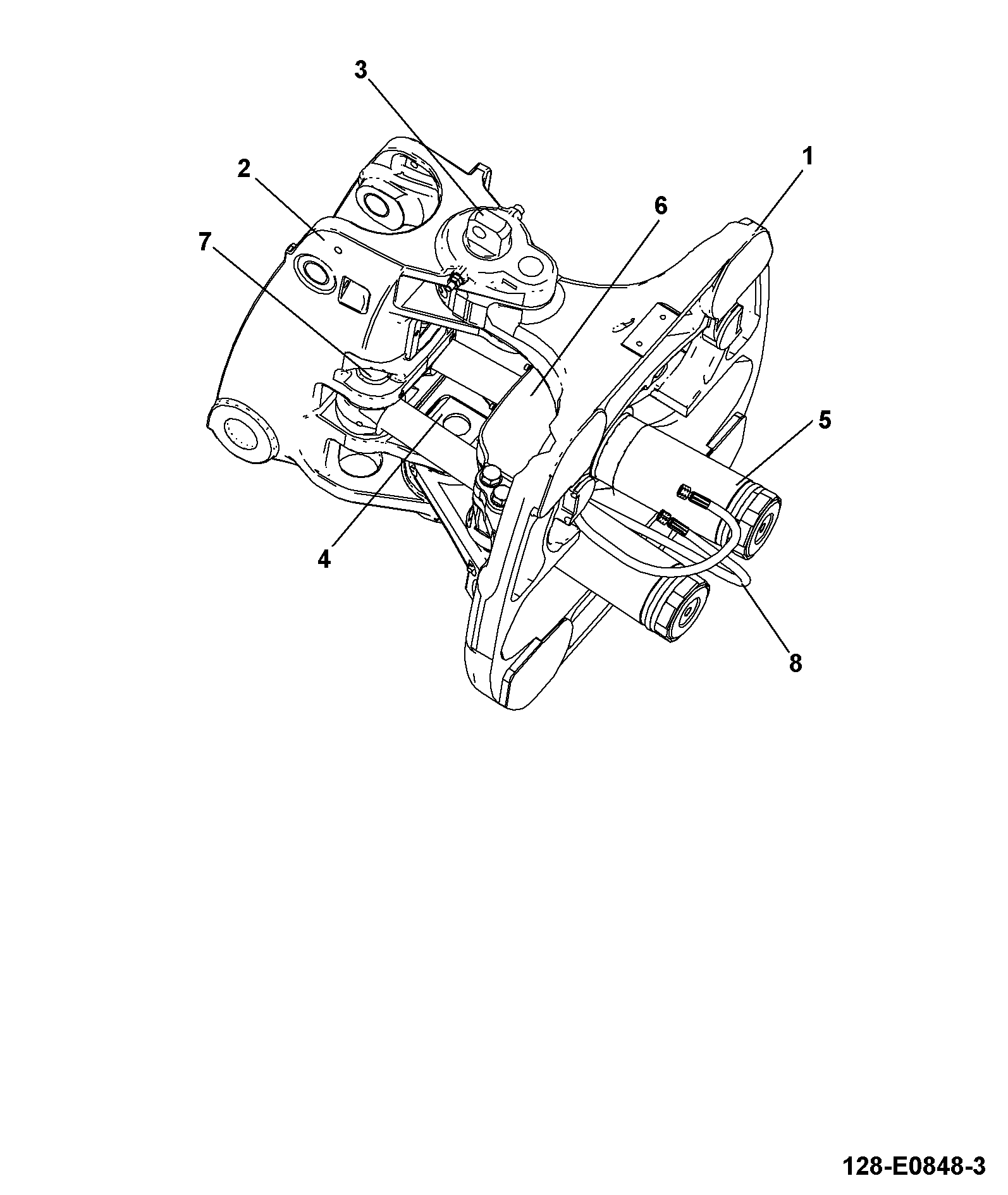

B405-3-15 ACTUATOR ASSEMBLIES SIDESHIFT 14″, 70TH ANNIVERSARY MACHINE Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	M/Cd K/POST CARRIAGE p/sl 128/C1867	1	AVAILABLE TO ORDER	$3,535.16	Quantity
2	GA KINGPOST s/s 14 AM 128/C1873	1	AVAILABLE TO ORDER	$2,818.39	Quantity
5	'GA RAM Slew (559/60215 Vintage Yellow) 128/C1885	1	AVAILABLE TO ORDER	$1,751.83	Quantity

Showing 1 to 3 of 3 parts
