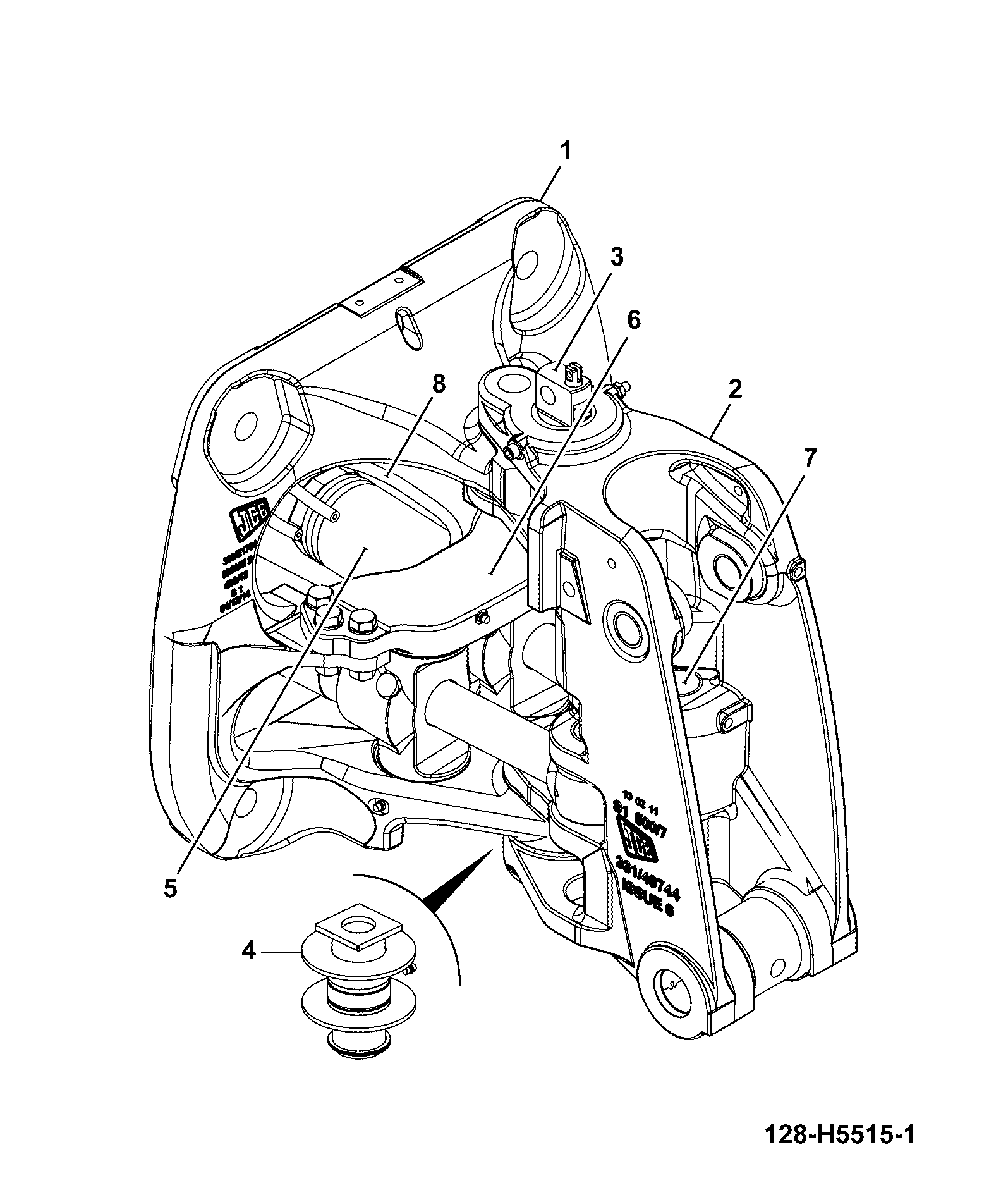

B405-2-11 ACTUATOR ASSEMBLIES CENTREMOUNT 15’6″ & 17′ WITH BOOM LOCK Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	GA KINGPOST c/m 15/17' 128/15201	1	AVAILABLE TO ORDER	$5,104.93	Quantity
4	GA RAM Slew 100x60 (REC Yellow 2008) 559/60215	1	AVAILABLE TO ORDER	$4,167.70	Quantity
5	XP RAM Slew 100x60 (REC Black 2008) 559/60192 559/60216	1	AVAILABLE TO ORDER	$4,167.70	Quantity
8	BOLT CAP 123/07540	1	AVAILABLE TO ORDER	$14.89	Quantity

Showing 1 to 4 of 4 parts
