Scroll to zoom Click a part # to view details

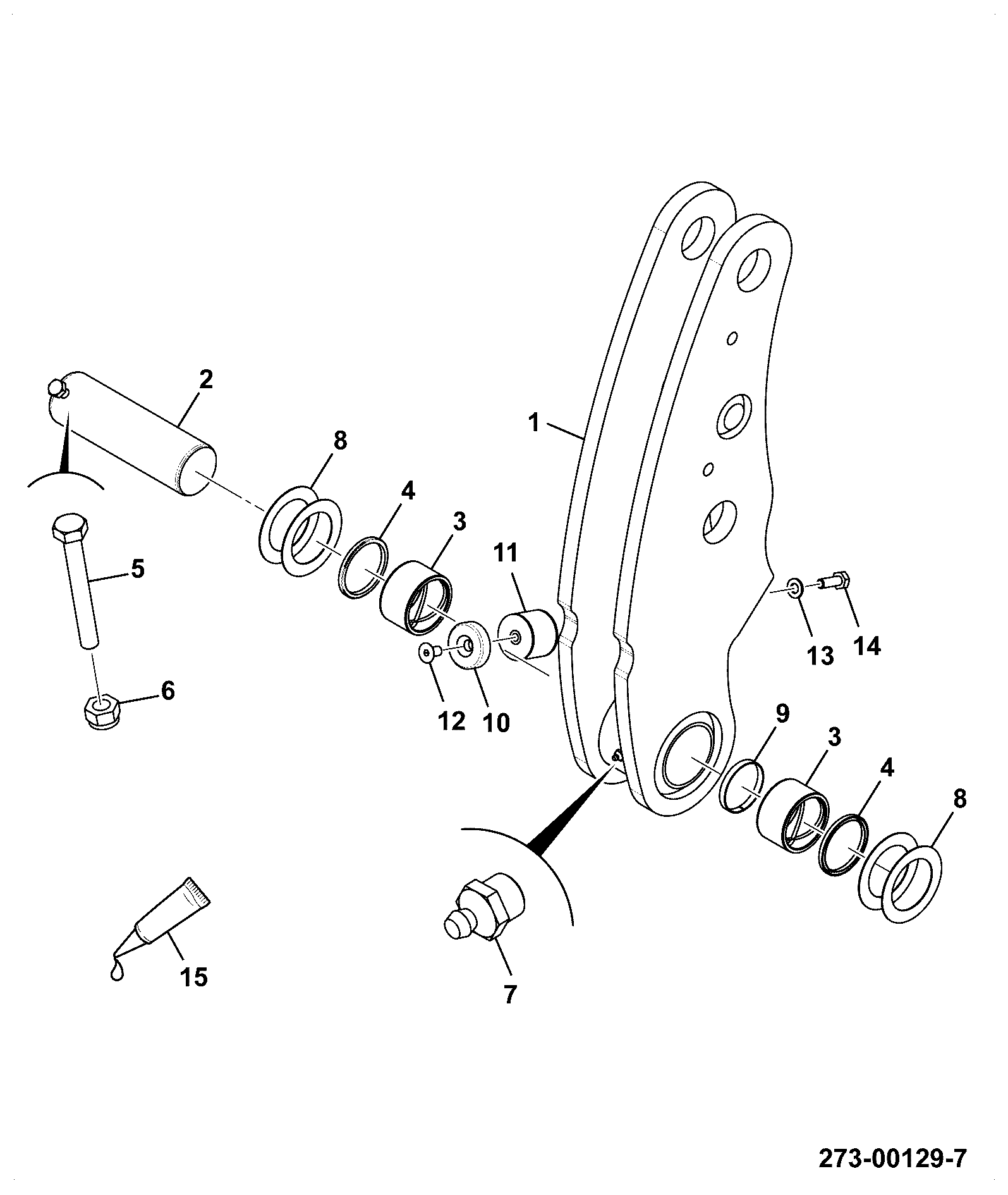

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | 406 407 Tip.Link PNTD (335/90297 M/C) 333/S6173 | 1 | $3,591.55 | |||
| 2 | LINER BEARING 60 *50*50 333/S3343 | 1 | $73.09 | |||
| 3 | PIVOT PIN SEAL 60-50-5 813/00426 | 1 | $7.81 | |||
| 4 | GA PIVOT PIN DIA50X108 (COATED) 333/T9013 | 1 | $230.69 | |||
| 5 | GREASE NIPPLE G1/8A 90DEG 1450/1001 | 1 | $3.38 | |||
| 8 | LINER BEARING LINE 333/S3345 | 1 | $47.82 | |||
| 9 | Pin pivot quickhit 811/90556 | 1 | $438.68 | |||
| 10 | GREASE NIPPLE G1/8A 333/Y6602 1450/0001 | 1 | $0.70 | |||
| 11 | SHIM 274/01018 | 1 | $6.76 | |||
| 12 | SPACER 830/00599 | 1 | $2.40 | |||
| 13 | HEX-SCREW M16 L-_30mm LG 1315/0708D | 1 | $5.07 | |||
| 14 | WASHER LARGE 1412/0007D | 1 | $5.07 | |||
Showing 1 to 12 of 12 parts
Related Assemblies
-
DIAG-B320-1-1-404361 B320-1-1 LOADER LINKAGES CROWD LEVER
View Diagram -

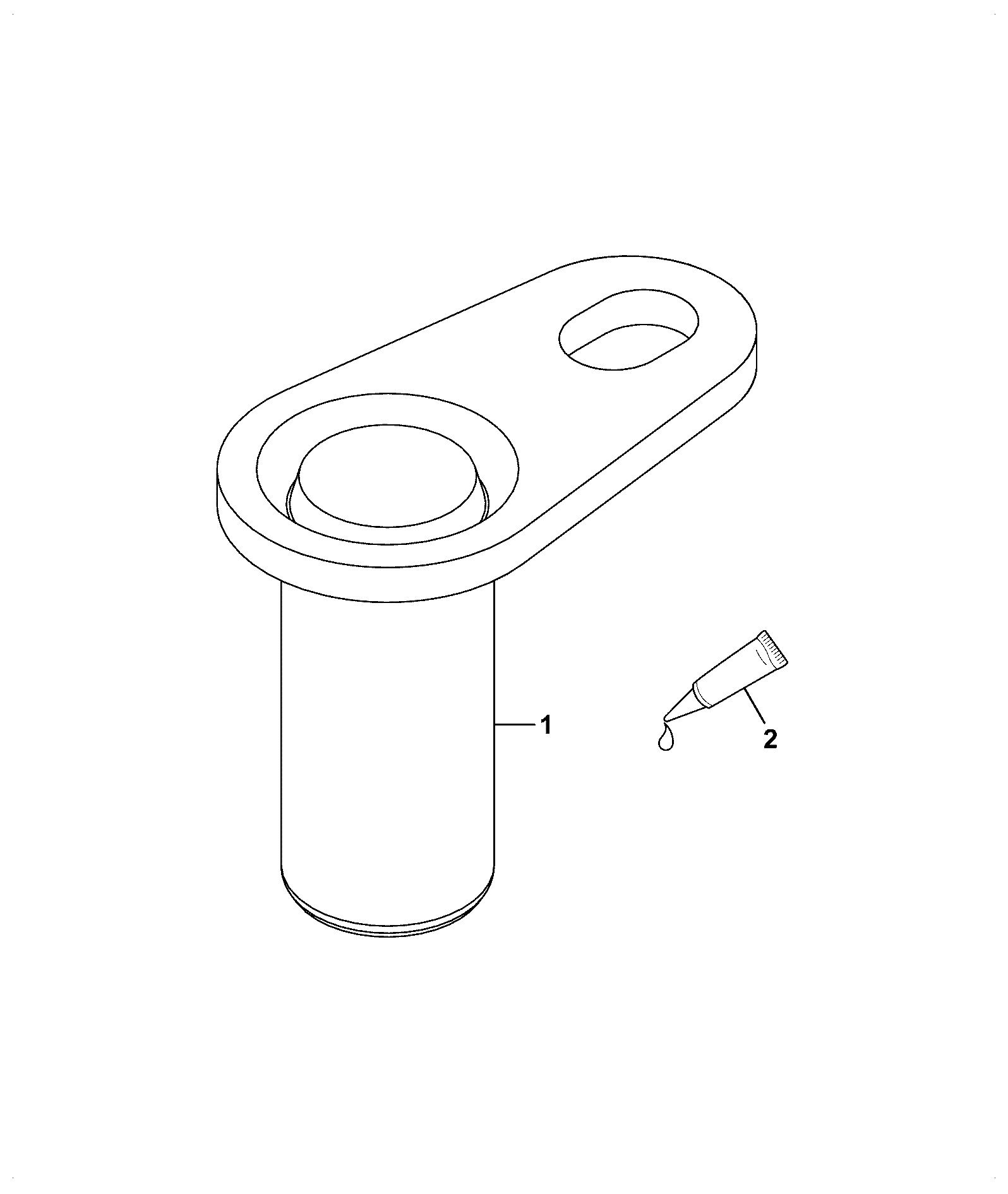

DIAG-B330-1-1-404361 B330-1-1 LOADER PIVOTS PIVOT PIN ASSEMBLY, 50X108
View Diagram -
DIAG-B310-1-1-404361 B310-1-1 LOADER ARM/LOADER BOOM
View Diagram
