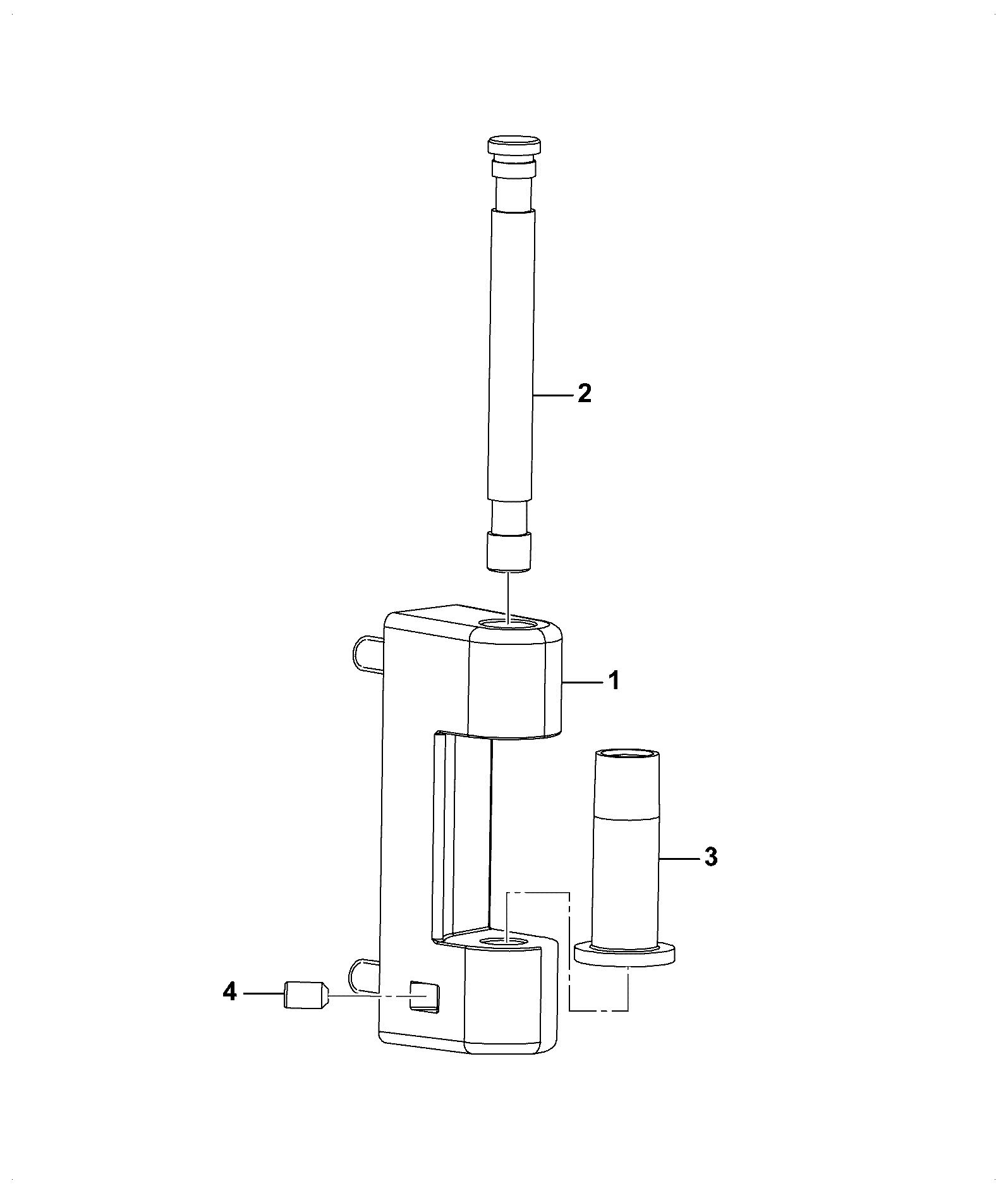

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | 406 407 CROWD LINK PNTD 335/90296 M/C 333/S6138 | 1 | $3,968.10 | |||
| 2 | PIVOT PIN DIA 60X197 811/90604 | 1 | $209.02 | |||
| 3 | LINER BEARING LINE 333/S3344 | 1 | $66.85 | |||
| 4 | PIVOT PIN SEAL 60-70-5 813/00427 | 1 | $31.91 | |||
| 5 | BOLT M10x100 1315/3420D | 1 | $3.37 | |||
| 6 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 7 | GREASE NIPPLE G1/8A 333/Y6602 1450/0001 | 1 | $0.70 | |||
| 8 | SHIM 1MM UNIT PACK 5 274/01017 | 1 | $15.28 | |||
| 9 | Spacer 274/00650 | 1 | $59.55 | |||
| 10 | PLATE 331/51440 | 1 | $62.64 | |||
| 11 | BOBBIN 331/51460 | 1 | $52.63 | |||
| 12 | M10 CAPSCREW C/SNK 331/13004 826/10858 | 1 | $9.52 | |||
| 13 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 14 | SET-SCREW M10 L-_30mm 1315/0408D | 1 | $1.55 | |||
| 15 | LOCTITE 242 250ML 4101/0204 | 1 | $142.28 | |||
Showing 1 to 15 of 15 parts
