Scroll to zoom Click a part # to view details

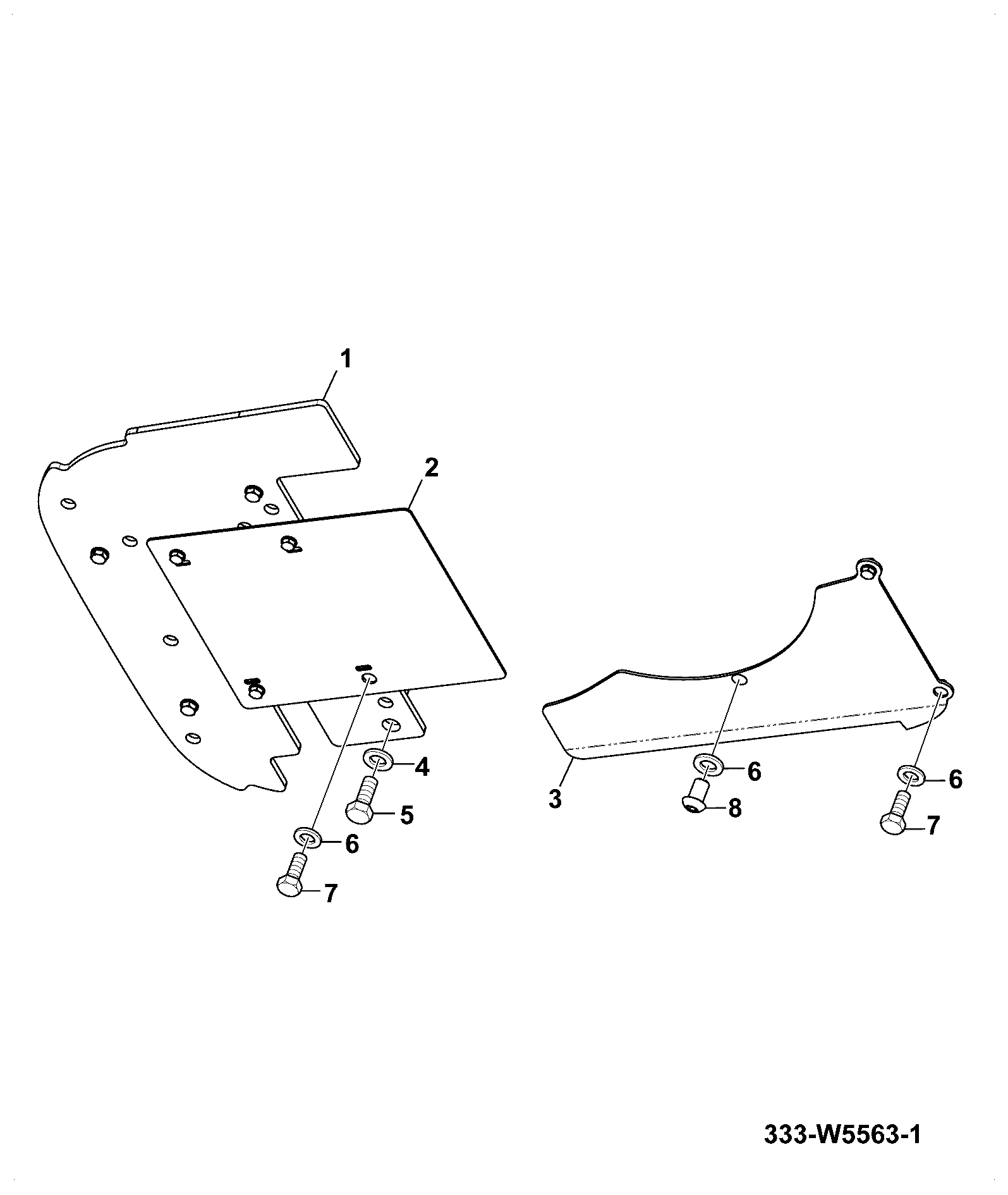

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | WA BALLAST PLATE 333/V1096 | 1 | $848.46 | |||
| 2 | SUMP DRAIN PLATE 333/W0375 | 1 | $151.63 | |||
| 3 | VALVE PROTECTION PLATE 331/42759 | 1 | $55.73 | |||
| 4 | WASHER M12 PLAIN 1420/0009D | 1 | $1.07 | |||
| 5 | BOLT M12x110 1315/3521D | 1 | $4.63 | |||
| 6 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 7 | SET-SCREW M10 L-_20mm 1315/0405D | 1 | $4.43 | |||
| 8 | BUTTON HEAD SCREW M10x16 (P511) 826/11545 | 1 | $7.34 | |||
Showing 1 to 8 of 8 parts
