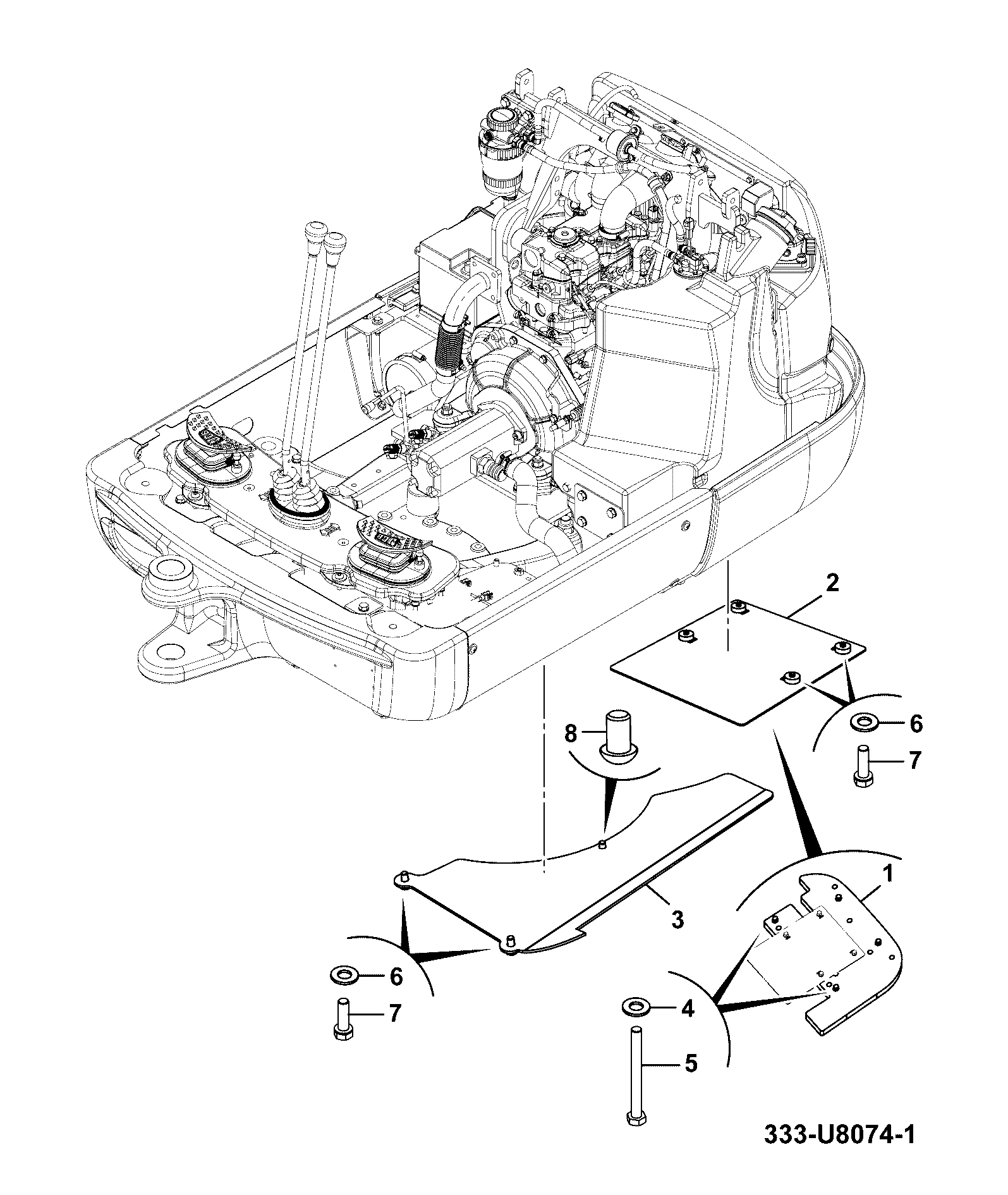

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | LH SKIRT 333/T3489 | 1 | $308.01 | |||
| 2 | WA SKIRT MTG BRKT LHR 333/U7712 | 1 | $134.86 | |||
| 3 | SCREW M8x25 BUTTON SOCKET (P564) 826/01554 | 1 | $3.46 | |||
| 4 | SET-SCREW M10 L-_30mm 1315/0408D | 1 | $1.55 | |||
| 5 | 5/16 WASHER (BR3) 1413/0002D | 1 | $0.95 | |||
| 6 | WASHER PLAIN 1413/0003D | 1 | $1.46 | |||
| 7 | CONDENSER SPACER 332/W7317 | 1 | $0.58 | |||
| 8 | WASHER LOCK M8 823/10516 | 1 | $5.79 | |||
Showing 1 to 8 of 8 parts
Related Assemblies
-
DIAG-B190-40-1-397849 B190-40-1 OTHER BODYWORK ITEMS SKIRT RH
View Diagram -
DIAG-B190-50-1-397849 B190-50-1 OTHER BODYWORK ITEMS BELLY PLATES
View Diagram -
DIAG-B190-30-1-397849 B190-30-1 OTHER BODYWORK ITEMS LATCH
View Diagram
